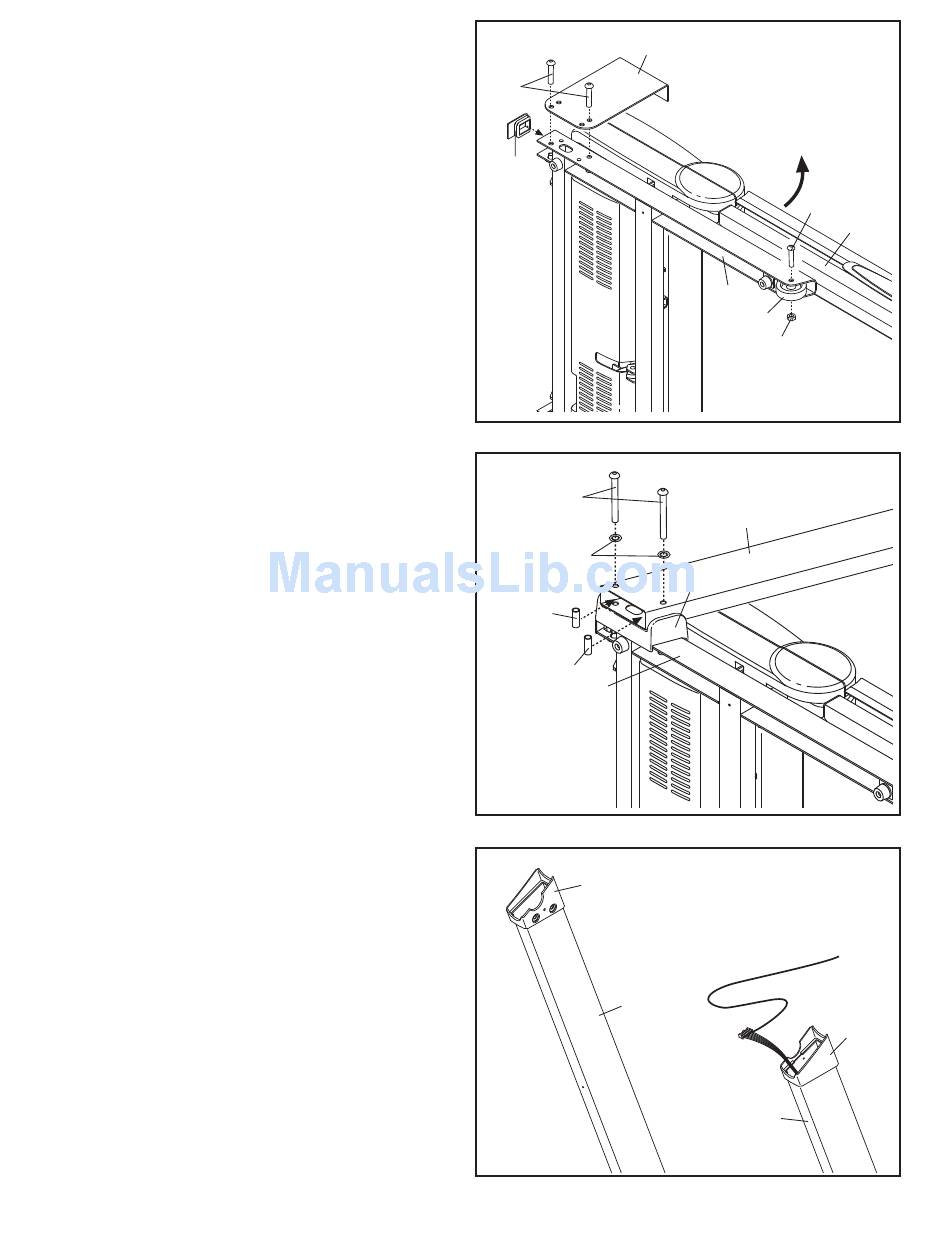

6. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the

Frame (51) so that the treadmill is more stable;

do not fully fold the Frame yet.
Remove and discard the indicated bolts (A) and
the shipping bracket (B).
Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (83) into the Base (87).
7. Hold a Bolt Spacer (81) inside the lower end of
the Left Upright (75). Insert a 3/8" x 4" Patch
Bolt (9) with a 3/8" Star Washer (12) into the
Left Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (81), 3/8" x 4"
Patch Bolt (9), and 3/8" Star Washer (12).
Hold the Left Upright Spacer (86) and the Left
Upright (75) against the Base (87). Tighten the
3/8" x 4" Patch Bolts (9) until the heads of the
Patch Bolts touch the Upright; do not fully
tighten the Patch Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (87) is flat on the floor.
8. Slide the Left Handrail Spacer (74) and the Right
Handrail Spacer (78) onto the top of the Left
Upright (75) and the Right Upright (80).
