Pro-Form 1195 ZLT User Manual page 8

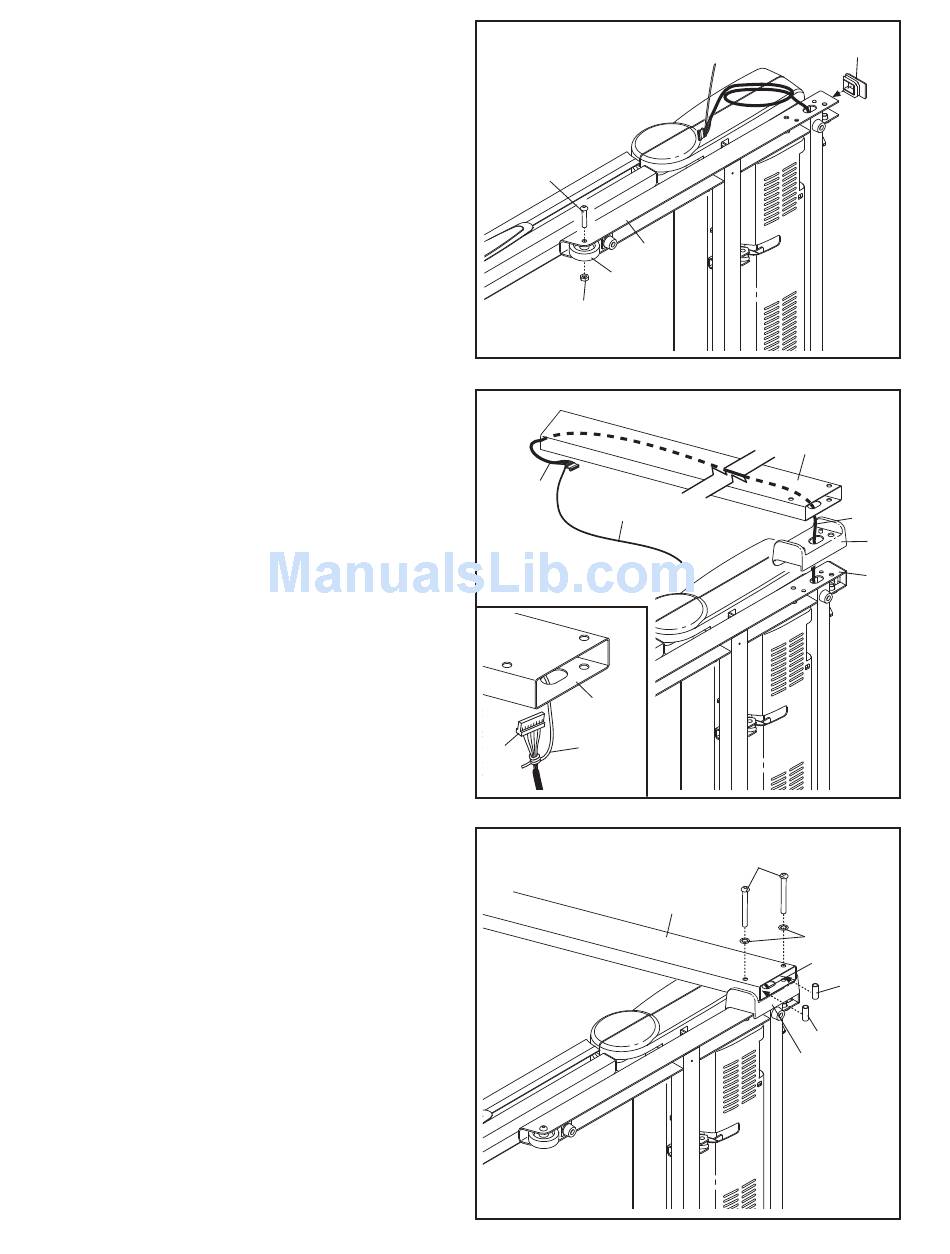

3. Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (83) into the Base (87).
4. Identify the Right Upright (80) and the Right
Upright Spacer (82), which are marked with
"Right" stickers.
Insert the Upright Wire (79) through the Right
Upright Spacer (82) as shown. Set the Right
Upright Spacer on the Base (87).
Have a second person hold the Right Upright
(80) near the Base (87). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (79). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
5. Hold a Bolt Spacer (81) inside the lower end of
the Right Upright (80). Insert a 3/8" x 4" Patch
Bolt (9) with a 3/8" Star Washer (12) into the
Right Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (81), 3/8" x 4"
Patch Bolt (9), and 3/8" Star Washer (12).
Hold the Right Upright (80) against the Right
Upright Spacer (82). Be careful not to pinch
the Upright Wire (79). Tighten the 3/8" x 4"
Patch Bolts (9) until the heads of the Patch Bolts
touch the Upright; do not fully tighten the
Patch Bolts yet.
3
7
87
88
11
4
79
Wire Tie
80
Wire
79
Tie
5
8
80
9
80
12
79
81
81
82
83
79
82
87
