Connections And Maintenance; I Connections - Icom iC-M505 Instruction Manual

9

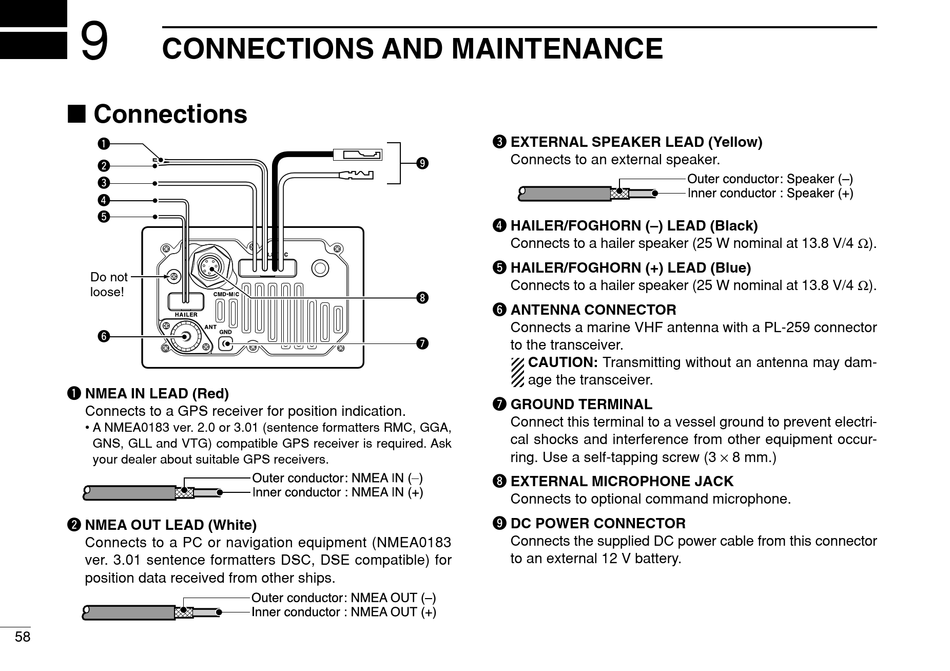

CONNECTIONS AND MAINTENANCE

I Connections

q
w
e
r
t
Do not
loose!
y
q NMEA IN LEAD (Red)
Connects to a GPS receiver for position indication.
• A NMEA0183 ver. 2.0 or 3.01 (sentence formatters RMC, GGA,
GNS, GLL and VTG) compatible GPS receiver is required. Ask
your dealer about suitable GPS receivers.
w NMEA OUT LEAD (White)
Connects to a PC or navigation equipment (NMEA0183
ver. 3.01 sentence formatters DSC, DSE compatible) for
position data received from other ships.
58
e EXTERNAL SPEAKER LEAD (Yellow)
Connects to an external speaker.
o
r HAILER/FOGHORN (–) LEAD (Black)
Connects to a hailer speaker (25 W nominal at 13.8 V/4 Ω).
t HAILER/FOGHORN (+) LEAD (Blue)
Connects to a hailer speaker (25 W nominal at 13.8 V/4 Ω).
i
y ANTENNA CONNECTOR
Connects a marine VHF antenna with a PL-259 connector
u
to the transceiver.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
u GROUND TERMINAL
Connect this terminal to a vessel ground to prevent electri-
cal shocks and interference from other equipment occur-
ring. Use a self-tapping screw (3 × 8 mm.)
i EXTERNAL MICROPHONE JACK
Connects to optional command microphone.
o DC POWER CONNECTOR
Connects the supplied DC power cable from this connector
to an external 12 V battery.
