9

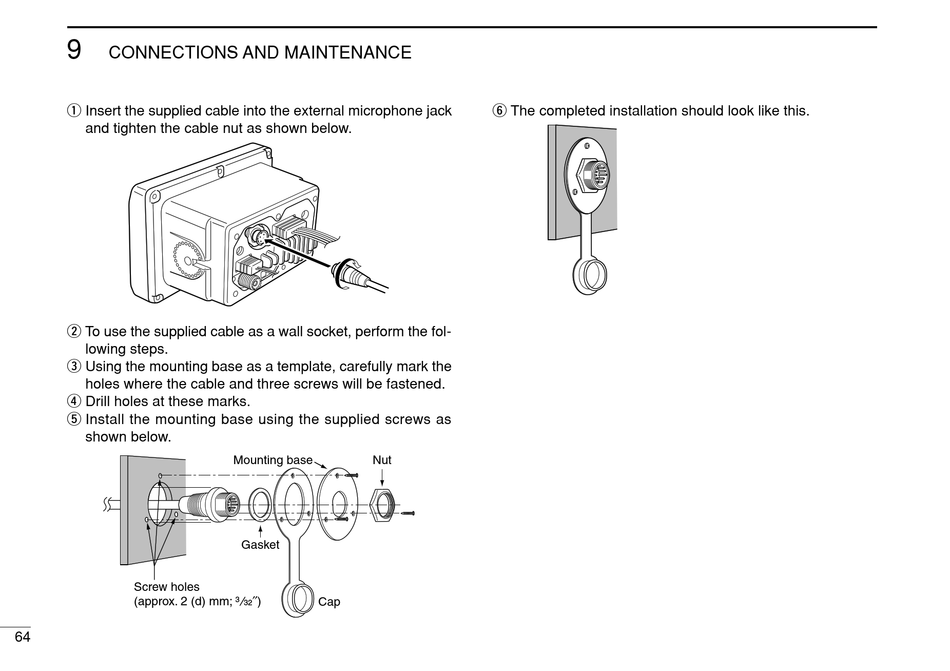

CONNECTIONS AND MAINTENANCE
q Insert the supplied cable into the external microphone jack
and tighten the cable nut as shown below.
w To use the supplied cable as a wall socket, perform the fol-
lowing steps.
e Using the mounting base as a template, carefully mark the
holes where the cable and three screws will be fastened.
r Drill holes at these marks.
t Install the mounting base using the supplied screws as
shown below.
Screw holes
(approx. 2 (d) mm;
64
Mounting base Nut
Gasket
")
3 32
Cap
y The completed installation should look like this.
