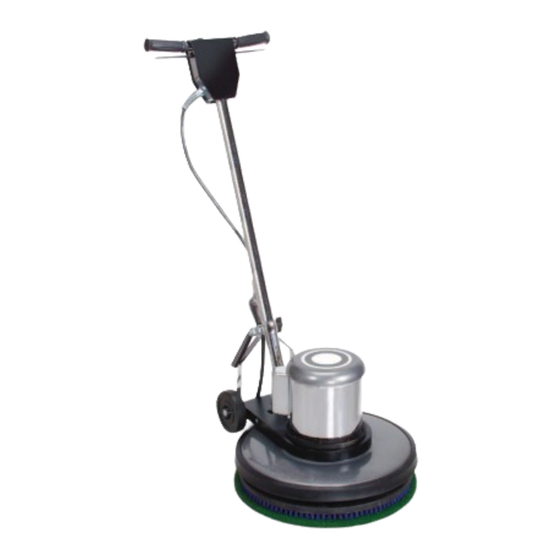

Powr-Flite 175 RPM 1 HP models Operator's Manual

Powr-Flite 175 RPM 1 HP models Operator's Manual

Classic floor machines

Advertisement

Quick Links

Operator's Manual
Classic Floor Machines
175 RPM, 1 HP models
175 RPM, 1.5 HP models
175 - 320 RPM, 1.5 HP models
Your new floor machine will afford you many years of trouble-free operat-
ing satisfaction provided it is given proper care. Prior to packaging, your
floor machine was inspected by a Quality Control Technician.
UNCRATING
Your floor machine was protectively packed to prevent damage in ship-
ment. We suggest that upon removing the unit from its carton, you care-
fully inspect it for any possible damage in transit. If damage is discov-
ered, immediately notify the transportation company who delivered your
machine. As a manufacturer, we are unable to act upon any claim for
concealed damage; you must originate the claim.

IMPORTANT SAFEGUARDS

This machine is designed to be safe when used to perform the
functions specified in this Operator's Manual. Should damage occur to
electrical or mechanical parts, Prior to further use, the machine should be
repaired by the manufacturer or competent service center to avoid further
damage to the machine or physical injury to user. Your floor machine is
equipped with a safety switch lockout device designed for your safety. Do
not attempt to bypass or defeat the safety lockout device. Never use any
device to lock the power switch triggers in the ON position.
X8692-PL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 175 RPM 1 HP models and is the answer not in the manual?

Questions and answers

Summary of Contents for Powr-Flite 175 RPM 1 HP models

  • Page 1: Important Safeguards

    Operator’s Manual Classic Floor Machines 175 RPM, 1 HP models 175 RPM, 1.5 HP models 175 - 320 RPM, 1.5 HP models Your new floor machine will afford you many years of trouble-free operat- ing satisfaction provided it is given proper care. Prior to packaging, your floor machine was inspected by a Quality Control Technician.
  • Page 2 FLOOR MACHINE APPLICATIONS WARNINGS ● Spray buffing with red spray buff pad and spray WARNING: You must have training in the operation of this machine before using it. buff chemical. WARNING: Machines can burn flammable materials and vapors. Do not use this machine with or near fuels, grain ●...
  • Page 3: Transporting The Machine

    TO GUIDE YOUR FLOOR MACHINE Circuit breaker is defective or weak. Replace. Switch is defective. Replace switch. Rectifier is defective. Replace rectifier (M202-3 and M172-3 only). To Right: raise handle slightly. The higher the handle is lifted, the faster the machine will move to the right. To Left: to change Machine will not reach operating speed.
  • Page 4 ref # order description ref # order description Handle, All Metal Label X8911 X8400A Handle assembled (includes #1 through #7) Motor base, metal M8600-3 X8966 Handle grip 1” diameter Brush cover 17” metal w/ bumper X8941 X8967 Thumb switch actuator Brush cover 20”...

This manual is also suitable for:

175 rpm 1.5 hp models175 - 320 rpm 1.5 hp models
