Summary of Contents for Powr-Flite PAS20BA-BC

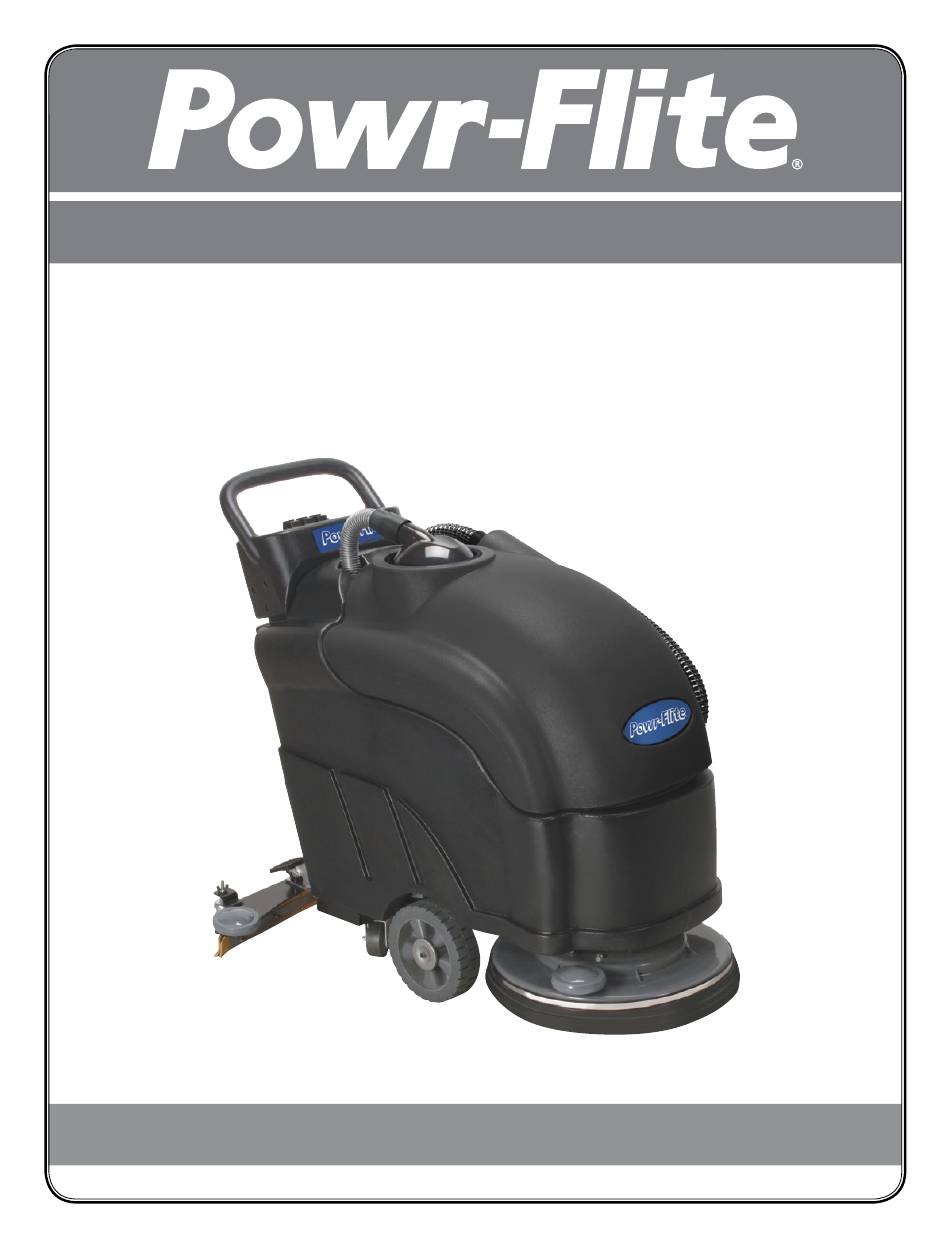

- Page 1 OPERATOR’S MANUAL Automatic Scrubber PAS20BA-BC WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony Corporation, All rights reserved PAS20BA-BC-MAN 09/2018 Save These Instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Instructions ................3 Machine Set-Up .................. 4 Machine Specification ................ 4 Replacement Parts: ................8 Brush ....................8 Clutch Plate ..................8 Battery .................... 8 Charger ................... 8 Daily Operation and Maintenance ............. 5 How to Install Batteries ..............5 How to Charge the Batteries ............ -
Page 3: Safety Instructions
BEFORE filling or charging batteries. • If charger is not working properly, (due to it being dropped, damaged, left outdoors or exposed to water) return it to a Powr-Flite Service Center. • Do not handle the plug or machine with wet hands. -
Page 4: Machine Set-Up
Machine Set-Up Handle Bar 10. Battery Control Panel 11. Valve, Solution Volume Control a ... Hour Meter 12. Frame b ... Battery Condition Indicator 13. Wheel c ... Brush Motor Switch 14. Brush/Pad Holder d ... Vacuum Motor Switch 15. Strap, Splash Guard e. -
Page 5: Daily Operation And Maintenance
Daily Operation and Maintenance How to Install Batteries Caution: Batteries are heavy. Install (2) 12-volt deep cycle batteries. New Batteries should be given a full charge before first use. 1. Unplug the hoses (20, 21) from the recovery tank (19). 2. -
Page 6: How To Operate The Machine
How To Operate The Machine 1. To turn the power on, turn the key switch (22). The power/battery indicator (b) will light up. 2. Check the battery capacity to see if it is full – all indicators are lit up when batteries are fully charged. -
Page 7: What To Do When You're Operating The Machine
What to Do When Operating The Machine Vacuuming Up Solution 1. Make sure the squeegee is in the down position. 2. As the machine moves forward and solution is dispensed, the squeegee will vacuum it up into the recovery tank. 3. -
Page 8: Brush
Troubleshooting WARNING - Before performing maintenance or making adjustments, switch off the machine and disconnect the battery. Problem: Possible Cause: Solution is not being Vacuum motor is not running picked up Water filter is clogged Recovery tank is full Squeegee or vacuum hose is clogged, broken or disconnected Bad seal at tank cover, vacuum motor or squeegee Worn or misaligned squeegee blades. -
Page 9: Warranty
1 Year - Parts/Labor IMPORTANT WARRANTY CONDITIONS: Warranty starts from the date of sale to the consumer or, at Powr-Flite’s discretion, six months after the dealer has purchased the unit from Powr-Flite, whichever comes first. All non-wear parts purchased after machine warranty expiration are warrantied for one year.
