- Page 1 MULTIWASH 14 OPERATOR’S MANUAL WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. MW14-MAN 8-08...
-
Page 2: Table Of Contents
CONTENTS Page Product information ....... . . 3 • Important safety advice ........3 •... -
Page 3: Product Information
The Powr-Flite floor cleaning machines are designed for use on smooth, even floors in indoor areas. They can be • Operators should be physically capable to maneuver, used on most floor surfaces including short pile carpet,... -
Page 4: Know Your Machine

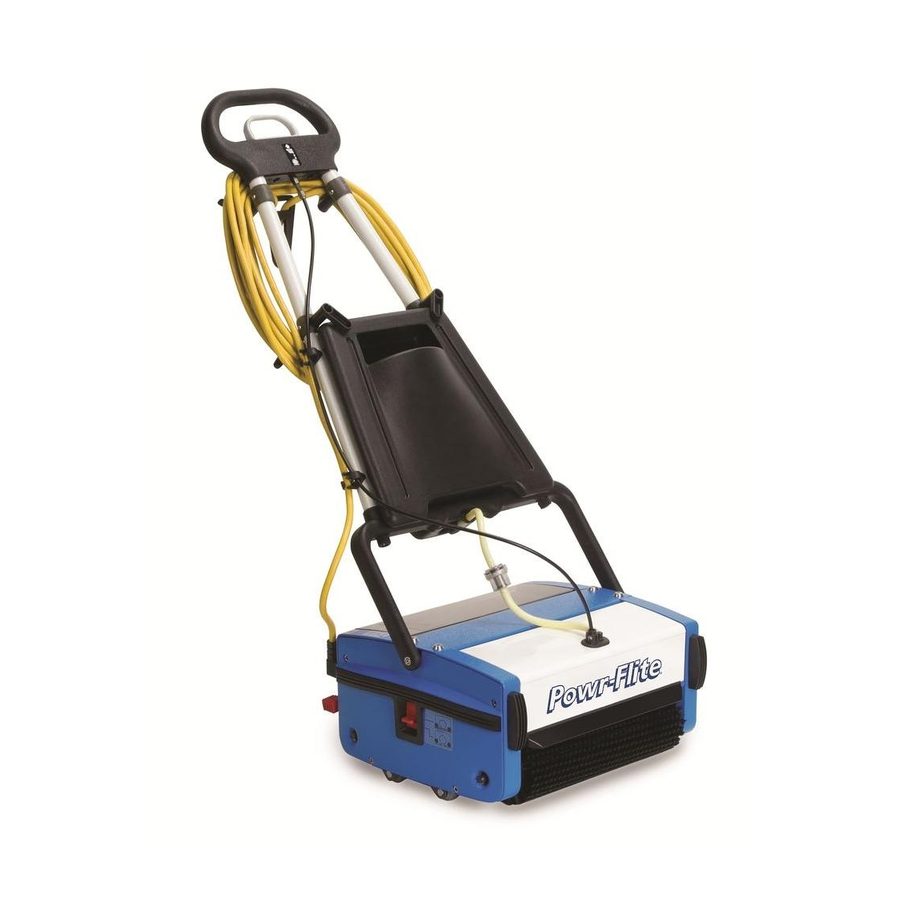

KNOW YOUR MACHINE (1) Top handle (2) Solution control handle (3) Solution tank (4) Bottom handle (5) Dirty water tank (6) Inline solution filter (7) Component housing (8) Conveyor drum (9) Brush (10) Handle release pedal (10) -
Page 5: Preparing For Use
(12) 1. The Powr-Flite Multiwash 14 ships with the handle dismantled. To assemble, verify that all of the parts listed are included. 2. Remove the hook, which holds the bottom handle with the machine body, while holding the bottom handle. -
Page 6: Brush Selection Guide
BRUSH SELECTION GUIDE Type of floor First time cleaning Maintenance cleaning Grouted Tile, Ceramic, Standard Soft Mosaic, Wood, Sports floors, Rubber, Vinyl tile Short Pile Carpet Soft Soft Marble, Granite, Slate Soft Soft Smooth Concrete Hard Standard Escalator Escalator Escalator Others To suit individual floor conditions BRUSH IDENTIFICATION... -
Page 7: Controls
CONTROLS On/Off Control Release the pedal handle lightly with your foot (1), pull back the handle (2) to start the motor. The brushes and the drum starts rotating. Pulling the handle further without pressing the pedal, lowers the machine and engages the rotating brushes onto the floor. To stop working, take the handle to the vertical position. -
Page 8: Operating Machine
OPERATING THE MACHINE Before the washing operation starts Warning! Pre-sweep the floor to remove debris before using the Multiwash. 1. Verify that the brushes are fitted properly. 2. Fill fresh water tank with cleaning solution. 3. Insert the plug into grounded 3-pronged outlet. (ii) (ii) Recommended washing sequence... -
Page 9: Care Of The Machine
CARE OF THE MACHINE Warning! Before cleaning the machine, switch off the machine and unplug from the electrical supply. 1. Move the Transport / Working mode control knob to BOTTOM (Transport) position (Fig- viii). 2. Disconnect the power supply by unplugging the electrical plug and wind the cable over cable holders in the handle. -
Page 10: Accessories
1 year on parts and workmanship. In case you as our customer, meet any trouble with your machine, contact your Powr-Flite representative who will be happy to be of service to you and will take care of the war- ranty settlement. -
Page 11: Electrical Diagram
ELECTRICAL DIAGRAM BR/W MOTOR CAPACITOR 1. Electrical layout Diagrams are made available in the cover (Power cord side) of the respective machine for service purpose. Warning! Any service or attempt to service by persons other than authorized servicing agent will invalidate the warranty. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Specification Units Multiwash 14 Cleaning capacity* square feet/hr 5500 Cleaning width inches Fresh water tank capacity gallons Overall dimensions Height with handle inches 44" Height without handle inches 8.5" Width inches 17.5" Length inches 15" Weight lbs. 53 lbs. - Page 14 A Tacony Company 3101 Wichita Court • Ft. Worth, TX 76140-1755 Tel: 800.880.2913 • Fax: 817.551.0700 www.Powr-Flite.com...
