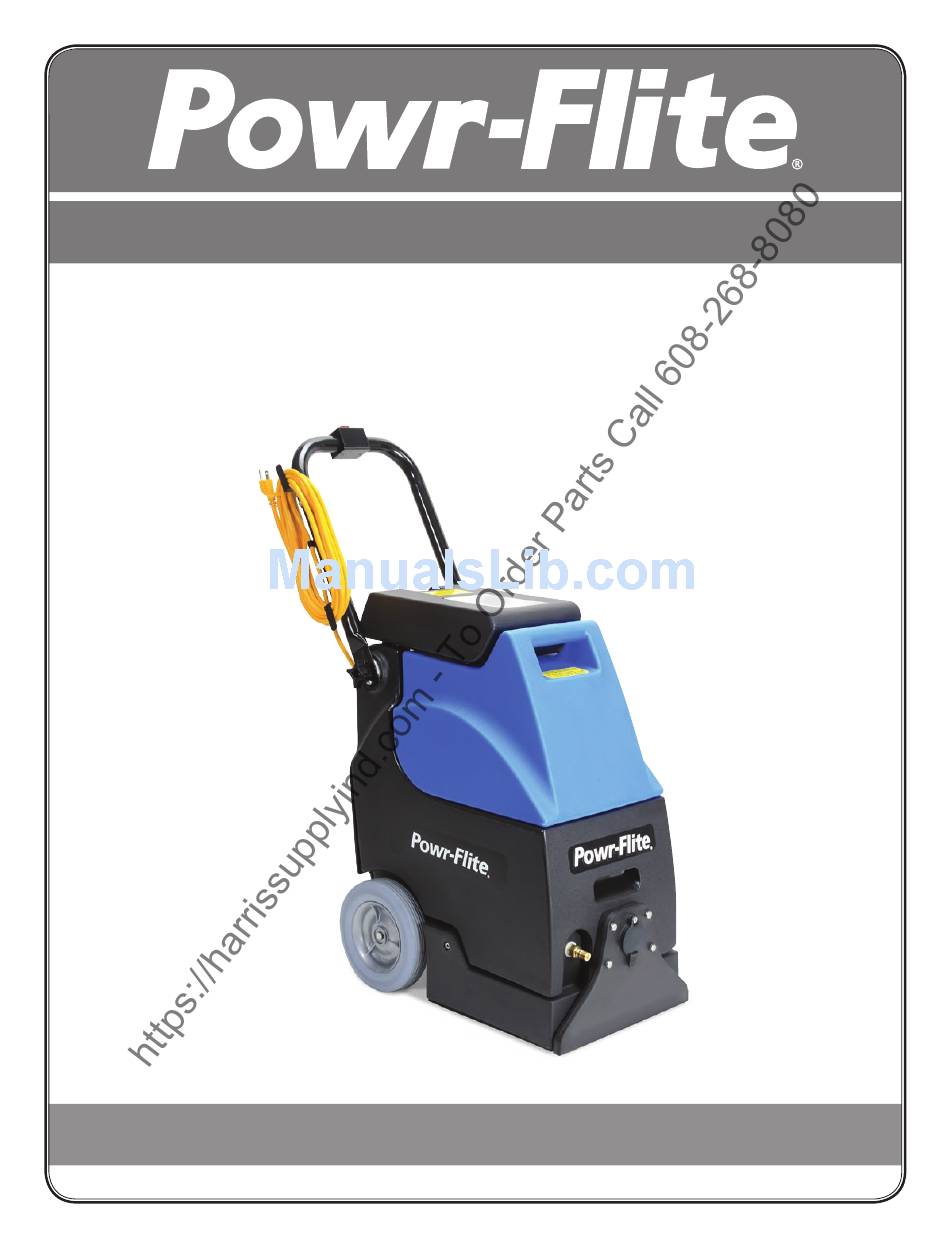

OPERATOR'S MANUAL & PARTS LIST
Self-Contained Carpet Extractors
Model 98150-PF
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©
Tacony, Inc., All rights reserved
Save These Instructions
98150-PF-MAN 7/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 98150-PF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powr-Flite 98150-PF

Summary of Contents for Powr-Flite 98150-PF

  • Page 1 OPERATOR’S MANUAL & PARTS LIST Self-Contained Carpet Extractors Model 98150-PF WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved Save These Instructions 98150-PF-MAN 7/16...

  • Page 2: Table Of Contents

    1 year from date of purchase on parts and workmanship. In case you as our customer, YEARS on meet any trouble with your machine, contact your Powr-Flite® representative who will be One Piece Housing happy to be of service to you and will take care of the warranty settlement.

  • Page 3: Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS WARNING!: To reduce the risk of fire, electric shock, or injury WARNING WARNING To avoid electric shock, To avoid fire, DO NOT DO NOT expose to use with a flammable or rain. combustible liquid to clean Store Indoors. floor.

  • Page 4: Grounding Instructions

    GROUNDING INSTRUCTIONS DANGER : Improper use of the grounding plug can result in a risk of electric shock. GROUNDING INSTRUCTIONS This self-contained extractor must be properly grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock.

  • Page 5: General Instructions

    (Figure 4) Do not use recovery tank to fill machine. Use a clean bucket. Figure 2 5) Add a recommended Powr-Flite exraction cleaner, such as Powr-Extract 7 or Powr-Extract Plus. 6) Replace recovery tank and close cover after filling.

  • Page 6: General Instructions

    GENERAL INSTRUCTIONS OPERATION OF SELF-CONTAINED CARPET CLEANER FOR SAFETY: Do not operate machine unless operator manual is read and understood. PRE-OPERATION 1) Vacuum carpet and remove other debris. 2) Perform MACHINE SETUP procedures. 3) Inspect power cord for damage. CLEANING CARPETS 1) Turn main power switch on (Figure 5).

  • Page 7: Draining Tanks

    GENERAL INSTRUCTIONS OPERATION OF SELF-CONTAINED CARPET CLEANER CLEANING WITH ACCESSORY TOOLS 1) Connect accessory tool hoses to solution hose coupler and vacuum hose port located at front of machine (Figure 9). 2) Turn main power switch on (Figure 10). 3) Operate accessory tools as normal. NOTE: When cleaning upholstery always check cleaning instructions sewn in furniture by manufacturer.

  • Page 8: Storing Machine

    GENERAL INSTRUCTIONS STORING MACHINE 1) Before storing machine, be certain to empty and rinse both tanks of all solution. 2) Store machine in a dry area in the upright position. 3) Open recovery tank cover to promote air circulation. ATTENTION: Do not expose to rain. Store indoors. ATTENTION: Do not store in freezing temperatures of 32ºF (0ºC) or below.

  • Page 9: Routine Maintenance Instructions

    GENERAL INSTRUCTIONS ROUTINE MAINTENANCE INSTRUCTIONS MONTHLY (EVERY 80 HOURS OF OPERATION) 1) Flush solution system with recommended liquid neutralizer to dissolve normal chemical buildup. a. Pour 2 gal (7.5 L) of hot water 140ºF (60ºC) into solution tank. Add a liquid neutralizer according to mixing instructions on bottle.

  • Page 10: Illustrated Parts List

    ILLUSTRATED PARTS LIST Motor/pump assembly 44 46 – 10 –...
  • Page 11 ILLUSTRATED PARTS LIST Motor/pump assembly continued ref# order# description ref# order# description washer-plain #10 plug in elbow 3/8" 00696 32183 01574 washer-lock (1/4") 32186 male conector 3/8" 01604 nut-finished hex #10-32 32245 lock washer 5/16" 01713 washer, lock #10 32905 clevis pin spring screw-phillips round head machine 1/4-20 x 2"...

  • Page 12: Solution Tank Assembly

    ILLUSTRATED PARTS LIST Solution tank assembly ref# order# description ref# order# description 03261 screw, tct panhead, #10-32 x 3/8 32938 inline filter 04145 grommet, 3/8" id x 9/64 wall 33901 recovery tank blue 04442 screw-phillips pan head machine 1/4-20 x 33089 solution tank back cover...
  • Page 13 ILLUSTRATED PARTS LIST Exterior assembly ref# order# description washer-lock(i/t)1/4" 07870 15139 terminal-q.d. female 1/4' 15391 1/4" piggyback terminal 17177 screw-hex head cap 1/4-20 x 1-1/4 32998 solution tank label-bilingual solution tank label-bilingual 32999 5/16 id x 15/32 od steel washer 33066 shoulder bolt, 1/4-20 x 1.25l, ss 33408...
  • Page 14 MAINTENANCE GUIDE Machine does not operate CAUSE: SOLUTION: 1) Faulty switches or wiring. 1) Contact manufacturer or service center. 2) Faulty power cord. 2) Contact manufacturer or service center. 3) Building circuit breaker tripped. 3) Reset circuit breaker according to operating instructions.
