INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide safe, reliable, user-friendly operation for gas heating appliances. This is a dry
contact, thermostat controlled system with built-in timer that can be operated from the transmitter.

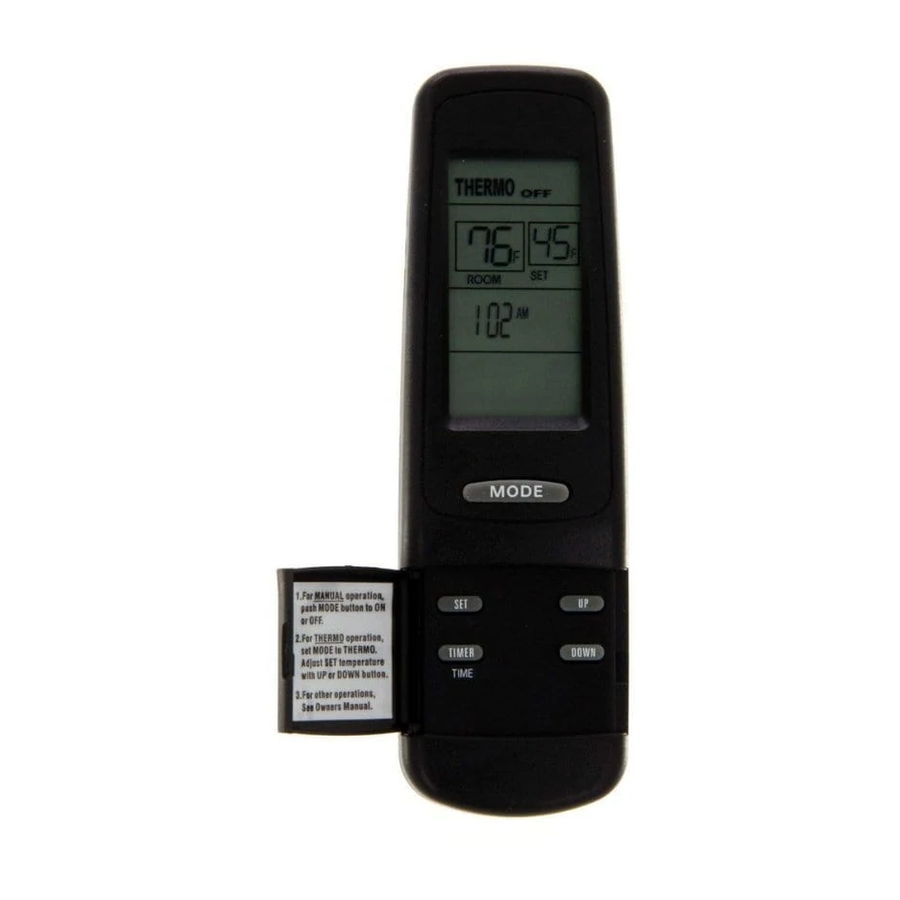

TRANSMITTER
+
-
LIQUID CRYSTAL DISPLAY - LCD
ON
3 THERMO
X
OFF
7
E
E
SET
ROOM
AM
6
PM
TIMER
FLAME
MODE FUNCTION
To select an operational mode, press the MODE button on the transmitter.
ON - Turns the appliance ON, the flame icon will appear on the LCD screen.
THERMO - Remote is in THERMO mode.
OFF - Turns the appliance OFF, the flame will disappear from the LCD screen.
SETTING ºFAHRENHEIT / ºCELSIUS SCALE
The factory setting for temperature is degrees Fahrenheit (ºF). To change this
setting to degrees Celsius (ºC):
• Remove battery cover on the back of the transmitter and locate the setting
button in the top center of the battery compartment.
• Push the button once to enter temperature scale setting mode.
• Use the up and down buttons to switch between the ºF and ºC.
• Push the setting button again once again to set the displayed temperature
scale.
• Repeat this procedure to switch back to ºF.
Skytech: Smart Batt III
Model: Smart Batt III
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on (2) AAA 1.5V batteries that are included. Install the AAA
batteries supplied with the unit into the battery compartment. It is recommended
that ALKALINE batteries always be used for this product. Be sure the batteries are
installed with the (+) and (-) ends facing the correct direction.
-
If the transmitter does not illuminate when you press any buttons, or you see nothing
on the LCD screen, check the position of the batteries.
+
1
1. Low Battery Indicator - Battery power is low, replace batteries within two weeks.
4
2. Timer - Time remaining before the system shuts off.
3. Mode - Indicates whether the system is ON, OFF, or in THERMO mode.
4. Set - Indicates the desired SET temperature when in THERMO mode.
8
5. Flame - Indicates appliance is on.
6. Clock - Indicates current time.
2
7. Room - Indicates current ROOM temperature.
8. ºF - Indicates degrees Fahrenheit (ºC indicates degrees Celsius).
5
SETTING
BUTTON
-
+
REV. 8-7-17 Page 1
