INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide safe, reliable, user-friendly operation for gas heating appliances. This is a dry
contact, thermostat controlled system with built-in timer that can be operated from the transmitter.
NOTE: This product is designed for use with an attended hearth appliance or fire feature. Adults must be present when the Control
System is operating. DO NOT program or thermostatically set this Control to operate a hearth appliance or fire feature when Adults
are not physically present. Furthermore, DO NOT leave the hearth appliance or fire feature burning unattended; it may cause damage
or serious injury. If an Adult is going to be away from the hearth appliance or fire feature for any length of time, then the handheld/wall
mount, receiver/control module and application should be in the "OFF" position.

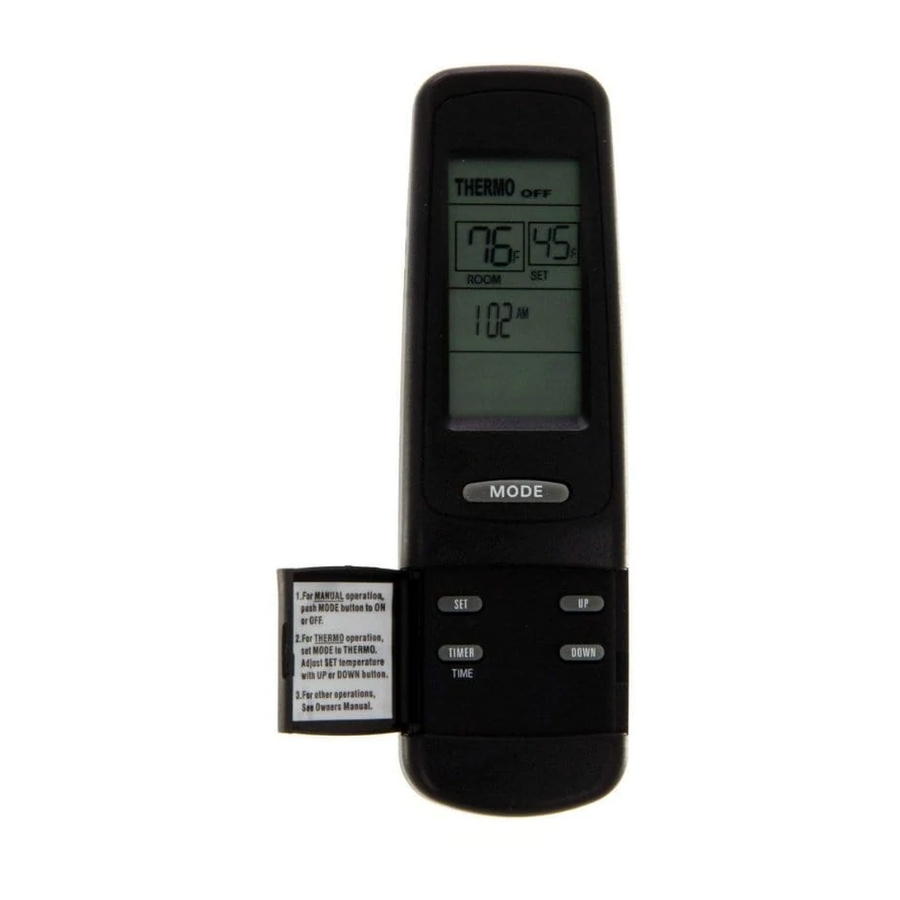

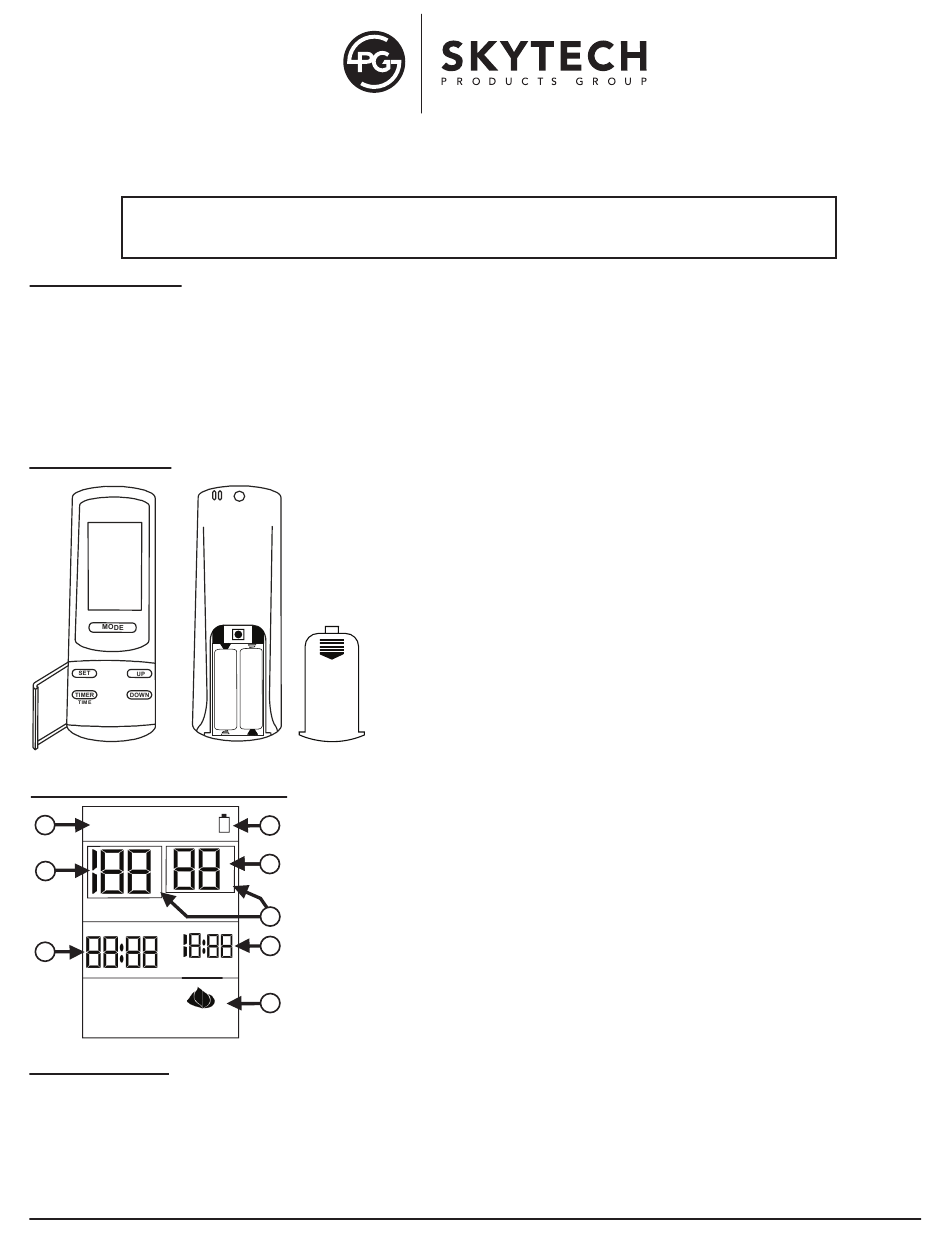

TRANSMITTER
LIQUID CRYSTAL DISPLAY - LCD
ON
3
THERMO
OFF
7
E
SET
ROOM
AM
6
PM
TIMER
FLAME
MODE FUNCTION
T o select an operational mode, press the MODE button on the transmitter.
ON - Turns the appliance ON, the flame icon will appear on the LCD screen.
THERMO - Remote is in THERMO mode.
OFF - Turns the appliance OFF , the flame will disappear from the LCD screen.
Skytech: Smart Batt III
Model: Smart Batt III
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on (2) AAA 1.5V batteries that are included. Install the AAA
batteries supplied with the unit into the battery compartment. It is recommended
that ALKALINE batteries always be used for this product. Be sure the batteries are
installed with the (+) and (-) ends facing the correct direction.
If the transmitter does not illuminate when you press any buttons, or you see nothing
on the LCD screen, check the position of the batteries.
+
-
+
-
1
X
1.
Low Battery Indicator - Battery power is low, replace batteries within two weeks.
4
2.
Timer - Time remaining before the system shuts off.
E
3.
Mode - Indicates whether the system is ON, OFF , or in THERMO mode.
4.
Set - Indicates the desired SET temperature when in THERMO mode.
8
5.
Flame - Indicates appliance is on.
6.
Clock - Indicates current time.
2
7.
Room - Indicates current ROOM temperature.
8.
ºF - Indicates degrees Fahrenheit (ºC indicates degrees Celsius).
5
REV. 5-20-22 Page 1
