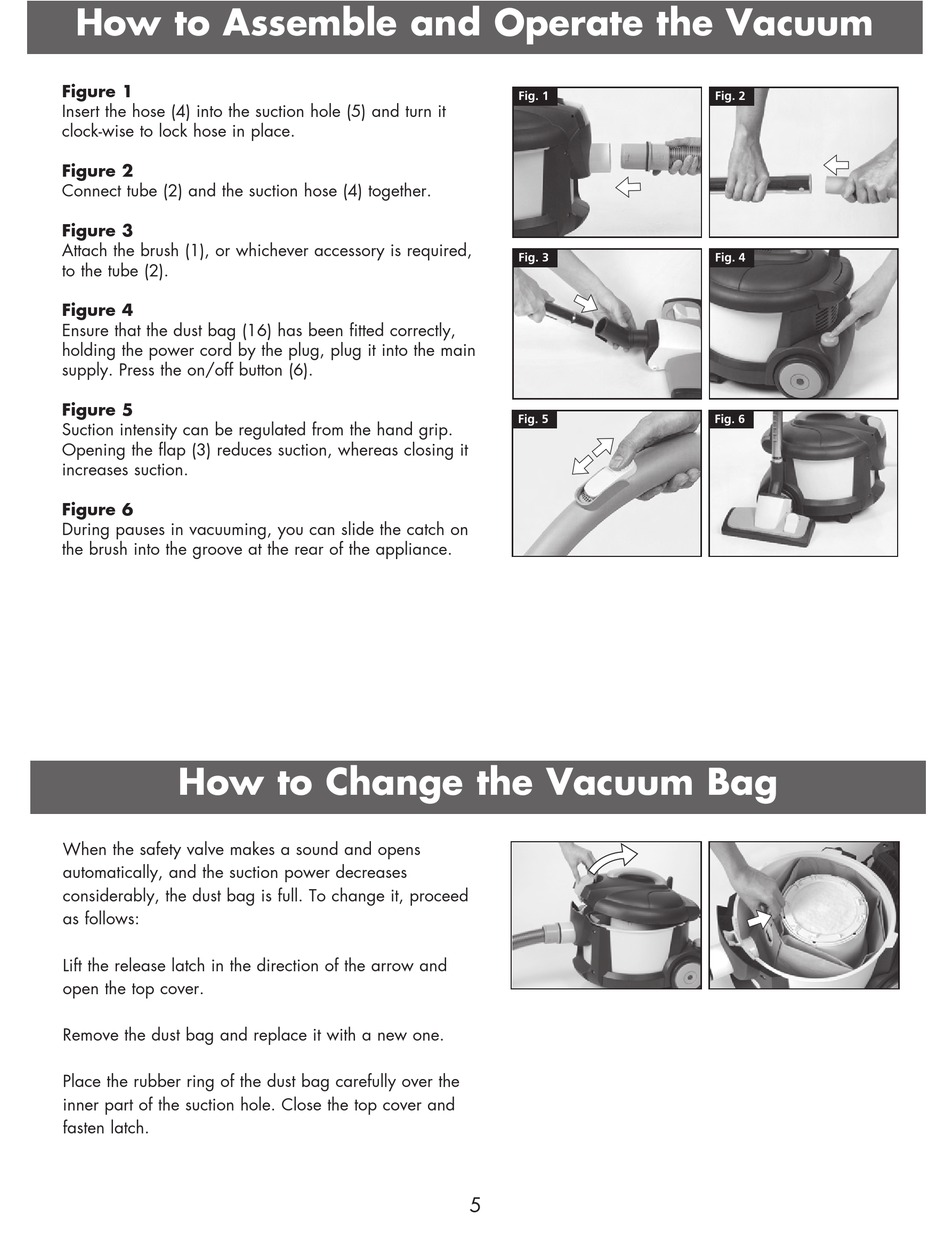

How to Assemble and Operate the Vacuum

Figure 1
Insert the hose (4) into the suction hole (5) and turn it
clock-wise to lock hose in place�
Figure 2
Connect tube (2) and the suction hose (4) together�
Figure 3
Attach the brush (1), or whichever accessory is required,
to the tube (2)�
Figure 4
Ensure that the dust bag (16) has been fitted correctly,
holding the power cord by the plug, plug it into the main
supply� Press the on/off button (6)�
Figure 5
Suction intensity can be regulated from the hand grip�
Opening the flap (3) reduces suction, whereas closing it
increases suction�
Figure 6
During pauses in vacuuming, you can slide the catch on
the brush into the groove at the rear of the appliance�
How to Change the Vacuum Bag
When the safety valve makes a sound and opens
automatically, and the suction power decreases
considerably, the dust bag is full� To change it, proceed
as follows:
Lift the release latch in the direction of the arrow and
open the top cover�
Remove the dust bag and replace it with a new one�
Place the rubber ring of the dust bag carefully over the
inner part of the suction hole� Close the top cover and
fasten latch�
