SECTION 7

7-1 CABINET PARTS

[MAIN UNIT]
REF. NO. ORDER NO.
MP4 8510015670 2681 shield plate
[CHASSIS PARTS]
REF. NO. ORDER NO.
J1 6910014700 2600 ant connector
MP1 8010019290 2681 chassis
MP2 8950005511 2403 contact spring -1
MP3 8930058561 2403 A-main seal-1
MP4 8930059800 2600 pet sheet
MP5 8930059830 2600 sheet
MP6 8930051500 O ring (AB)
MP7 8930055870 O ring (AO)
MP8 8930058550 O ring (AS)
MP9 8830001600 Screw nut (L)
MP10 8830001470 VR nut (N)
MP11 8850001880 Sealing washer (W)
MP12 8810009510 Screw B0 2 x 4 NI-ZU (BT)
MP13 8810007890 Screw B0 2 x 4 SUS
MP14 8810010120 Screw B0 2 x 8 SUS ZK
MP15 8810010190 Screw M2 x 4 SUS ZK
[FRONT UNIT]
REF. NO. ORDER NO.
DS401 5030002630 L3-0048TAY-2
EP402 8930061530 SRCN-2681-SP-N-W
SP401 2510001092 036D0801B
W401 8900011880 OPC-1210
MP401 8210019860 2681 front panel
MP404 8930060540 2681 4-2 Key board
MP405 8210019880 2681 PTT button
MP406 8930060550 2681 PTT Plate
MP407 8930060710 2681 PTT rubber
MP408 8310059540 2681 LCD plate
MP410 8210019890 2681 Reflector
MP411 8310059530 2681 window plate
MP412 8930060860 2681 window sheet
MP413 8930059360 2600 release button
MP414 8930055761 2403 release plate
MP415 8930056540 Spring (AH)
MP417 8930055730 2403 connector seal
MP418 8930055890 2403 connector sheet
MP419 8930056430 2403 9-pin sheet
MP421 8610011380 Knob N-313
MP423 8930061110 2681 mic tape
MP424 8810009510 Screw B0 2 x 4 NI-ZU (BT)
MP426 8930061200 2681 mic rubber
MP429 8930062240 Sponge (HM)
[VR UNIT]
REF. NO. ORDER NO.
R601 7210003130 TP76N97N-13F-10KA-2497
[CONNECTOR UNIT]
REF. NO. ORDER NO.
MP701 8950005520 2403 9-pin connector
Screw abbreviations

MECHANICAL PARTS AND DISASSEMBLY

DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
B0, BT: Self-tapping
ZK: Black
SUS: Stainless
NI-ZU: Nickel-zinc

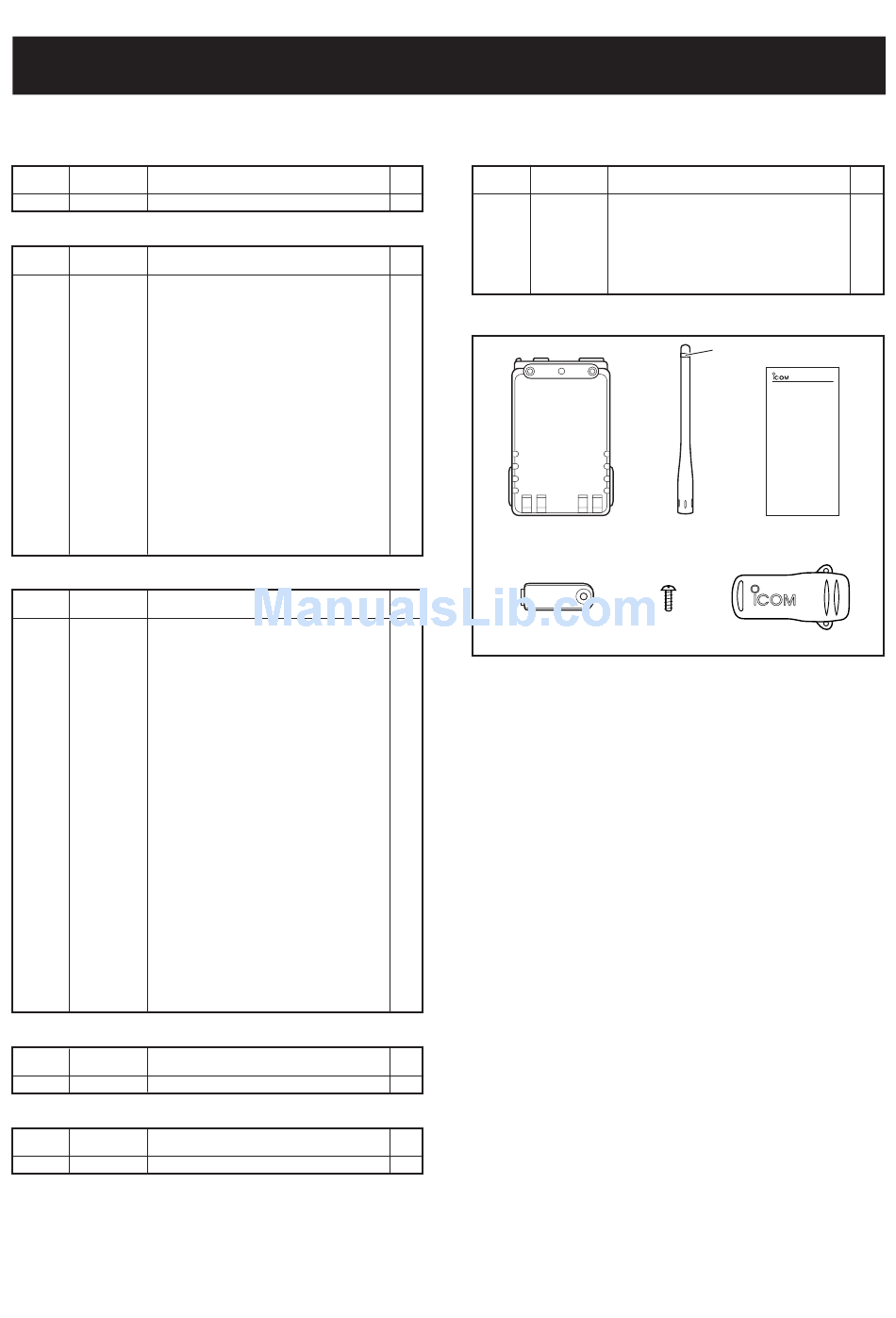

[ACCESSORIES]
REF. NO. ORDER NO.
1 EP1 0800006730 Battery BP-227
EP2 3310003020 Antenna FA-S59V ACC
MP1 8930061480 Clip MB-98 ACC
MP2 8210017071 2337 C-PANEL-1
MP3 8810009270 Screw M3 x 4 SUS ZK
1
MP4 8310060530 2681 key-sticker
1
1
1
1
1
1
1
1
1
1
2
7
1
2
EP1
3
1
2
MP2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
4
1
1
1
1
7 - 1
DESCRIPTION
Color: blue
EP2 MP4
MP3 MP1
QTY.
1
1
1
1
1
1
