SECTION 7

7-1 CABINET PARTS

[CHASSIS PARTS]
REF. NO. ORDER NO.
SP1 2510001120 Speaker SDRS-3650P-008
EP1 3310003060 Antenna 2628 ANT
MP1 8210019410 2628 Front panel
MP2 8110007920 2628 Rear cover
MP3 8210019420 2628 Rear panel
MP4 8310054740 2628 Window plate
MP5 8930059220 2628 Window sheet
MP6 8930059210 2628 SP JACK CAP
MP7 8610011270 Knob N-296
MP8 8930059240 2628 4-key
MP9 8930059250 2628 PTT rubber
MP10 8930059260 2628 A-terminal
MP11 8930059270 2628 B-terminal
MP12 8930059280 2628 Detect button
MP13 8930059280 2628 PTT sheet
MP14 8110007910 2628 Lock cover
MP15 8930059290 O-ring (AU)
MP16 8930059590 O-ring (AV)
MP17 8930045220 2045 BATT seal
MP19 8930045370 2045 C-terminal
MP20 8810008750 Screw PH B0 2x15 ZK (BT)
MP22 8930058310 2605 DC cap
MP25 8830000550 Nut (E)
MP32 8810009560 Screw PH B0 2x6 ZK (BT)
MP33 8810008620 Screw PH B0 2x20 ZK (BT)
MP35 8930059600 2628 Mic rubber
MP36 8930059610 Sponge (HC)
[MAIN UNIT]
REF. NO. ORDER NO.
R406 7210001970 RV-244
J301 6450001060 HSJ1493-01-01
J302 6450002130 04-730A-02BKA
J303 6450000130 HSJ1102-01-540
DS300 5030002520 LCD L2-0494TAY
MC300 7700002160 KUC3523-040245
S304 2260001900 SW-149
EP303 8930059580 LCD contact SRCN-2045-SP-N-W
MP301 8210019390 2628 Reflector
MP302 8930059230 2628 LCD holder
MP303 8810004890 Screw PH 2x6 ZK
MP304 8010019180 2628 CHASSIS
[RF UNIT]
REF. NO. ORDER NO.
MP1 8510011570 2405 VCO case
Screw abbreviations

MECHANICAL PARTS AND DISASSEMBLY

QTY.
DESCRIPTION
QTY.
DESCRIPTION
QTY.
DESCRIPTION
B0, BT: Self-tapping
PH: Pan head
ZK: Black

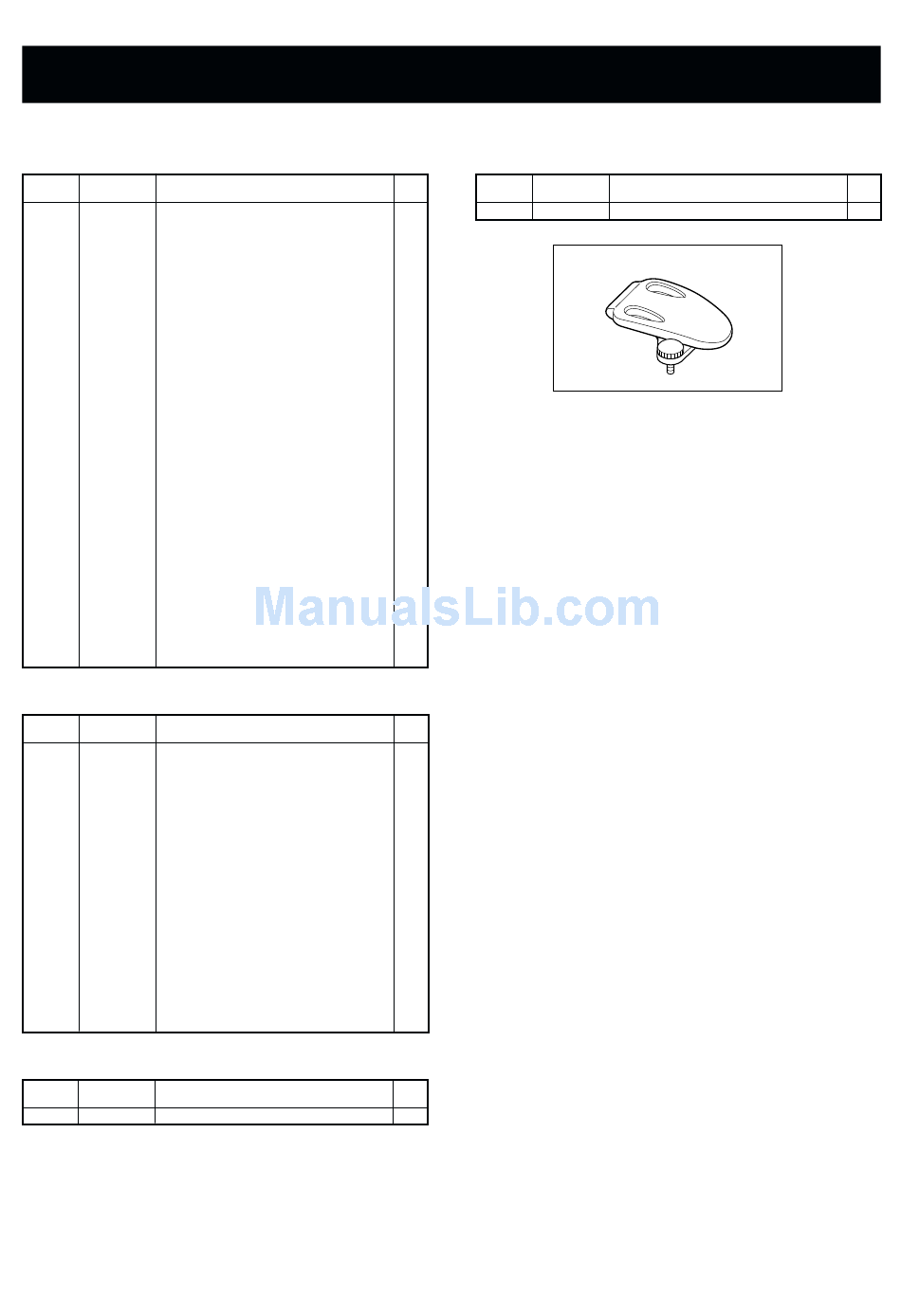

7-2 ACCESSORIES

REF. NO. ORDER NO.
MP1 8930045331 2405 Belt clip-1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
5
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
7 - 1
DESCRIPTION
MP1
QTY.
1
