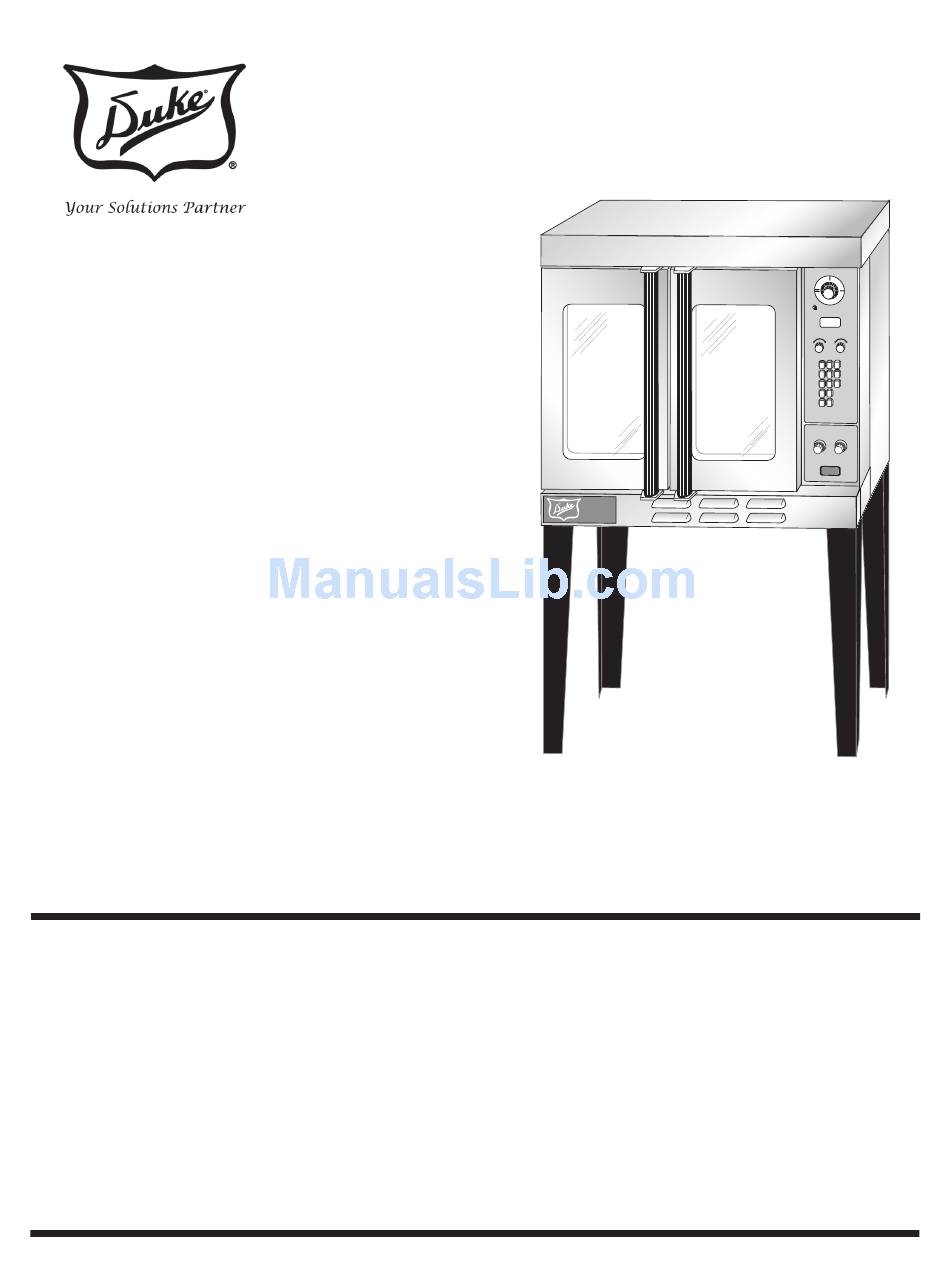

613 & E SERIES
ELECTRIC
CONVECTION OVEN
Please read this manual completely before attempting
This manual is Copyright © 2011 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
to install, operate or service this equipment
trademark of the Duke Manufacturing Co.
Duke Manufacturing Co.
2305 N. Broadway
St. Louis, MO 63102
Phone: 314-231-1130
Toll Free: 1-800-735-3853
Fax: 314-231-5074
www.dukemfg.com
Installation and
Operation Manual
P/N: 152469X
Advertisement
Table of Contents
Related Manuals for Duke 613 SERIES
Summary of Contents for Duke 613 SERIES
- Page 1 Please read this manual completely before attempting to install, operate or service this equipment This manual is Copyright © 2011 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.
-
Page 2: Table Of Contents
Installation and Operation of 613 & E Series Electric Convection Oven TABLE OF CONTENTS IMPORTANT WARNING AND SAFETY INFORMATION ..............3 SPECIFICATIONS ........................... 3 INSTALLATION INSTRUCTIONS ....................4 A. QUALIFIED PERSONNEL ....................4 B. DELIvERY AND INSPECTION .................... 4 C. LOCATION OF ThE OvEN ....................4 D. -
Page 3: Important Warning And Safety Information
Installation and Operation of 613 & E Series Electric Convection Oven “ZZ” CONTROLLER WIRING SChEMATIC ................30 CUSTOMER ASSISTANCE ......................31 IMPORTANT WARNING AND SAFETY INFORMATION POST IN A PROMINENT LOCATION instructions to be followed in the event the user smells gas. This information shall be obtained by consulting the local gas supplier. -
Page 4: Installation Instructions
The blower motor has a thermal protection device, which will Duke Manufacturing Co. does everything within its power trip, because of excessive ambient temperatures at the to insure you received your oven in good condition. -
Page 5: Oven Assembly
Installation and Operation of 613 & E Series Electric Convection Oven area. Standard wiring schematics are also included at NOTE: If you plan to use casters, a fixed restraint of the the back of this manual. proper length must be incorporated to secure the oven to a non-movable surface to eliminate strain on the power Note to Electrical Inspector: Inspection of... -
Page 6: Operating Instructions
Installation and Operation of 613 & E Series Electric Convection Oven OPERATING INSTRUCTIONS THE “E” & 6/13 SERIES OF CONVECTION The information in this section is intended for the use OVENS of qualified operating personnel. Qualified Operating Personnel are those individuals who have carefully Convection cooking has been around from the 1960s. -
Page 7: Oven Controls
Installation and Operation of 613 & E Series Electric Convection Oven A. OVEN CONTROLS "v" CONTROLLER Electro-Mechanical 1. The Power Switch - Controls power to ON or Cool Down Function. 2. The Indicator Light - When lit indicates burners are operating. When the light goes out, the oven has reached its cooking temperature. -
Page 8: Cooking
Installation and Operation of 613 & E Series Electric Convection Oven Fan Speed Switch The fan speed can be set to high or low speed by placing the FAN hI/LOW button to the desired setting. Cooking A cooking cycle can be initiated as follows: •... -
Page 9: Xx" Controller
Installation and Operation of 613 & E Series Electric Convection Oven “XX” CONTROLLER Oven Controls – Solid State Digital 1. The Power Switch – Controls power to Cook or Cool Down functions. 2. The Indicator Light – When lit indicates burners or elements are operating. - Page 10 Installation and Operation of 613 & E Series Electric Convection Oven 8. Wait until the temperature display stops flashing, • hold Mode: In this mode the oven operates at a when it stops flashing the oven has reached the specified hold temperature; however the fan only set temperature.
-
Page 11: Zz" Controller
Installation and Operation of 613 & E Series Electric Convection Oven “ZZ” CONTROLLER Oven Controls – Solid State Digital Control with Rack Timer Capability. 1. Fan Mode High – LED is lit when fan is in hIGh mode. 2. Fan Mode Low – LED is lit when the fan is in low speed mode. - Page 12 Installation and Operation of 613 & E Series Electric Convection Oven speed, controller-compensated time, or straight time SHELF COOK NO will be displayed. Use the Left countdown mode. or Right arrow keys to select YES or NO for Shelf Cook. Then press the “P” key. Using profile baking with muffins, for example, yields excellent results.
- Page 13 Installation and Operation of 613 & E Series Electric Convection Oven ALARM X DONE will be displayed with either AUTOMATIC or MANUAL. To change between the 2 ENTER CODE will be displayed. Type in 3228. Then settings, use the Left or Right arrow keys. Then press press the “P”...
- Page 14 Installation and Operation of 613 & E Series Electric Convection Oven ADDING PRODUCT AND PRE-ALARM PREhEAT TIME will be displayed then XX:XX. To NAMES, PASS CODE #3228 change the preheat time, type in a new time. Then press the “P” key. Programming a Custom Product and Pre-alarm name To Exit System Programming...
-
Page 15: Zz" Controller Repair Parts List
Installation and Operation of 613 & E Series Electric Convection Oven “ZZ” CONTROLLER REPAIR PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 155115 Screws, thumb 153036 Motor, 208/240v, 2-speed, 1/2 hP 155113 Support rack, oven 153210 Terminal block 155114 Rack, oven 153156 Contactor, 208/240v, 3-pole, 50 amp 155107... -
Page 16: General Guidelines For Operation
Installation and Operation of 613 & E Series Electric Convection Oven B. GENERAL GUIDELINES FOR OPERATION • You may wish to experiment with leaving the oven OFF after pre-heating the oven and loading when These guidelines are to assist you in obtaining the best baking light products such as light cake batter performance from your oven: or custard so the product will have time to set. -
Page 17: Suggested Times & Temperatures
Installation and Operation of 613 & E Series Electric Convection Oven C. SUGGESTED TIMES & TEMPERATURES PRODUCT °F °C COOK TIME RACKS TEMP TIME BEEF hAMBURGER PATTIES (3.3 OZ) 8 – 10 MIN MEAT LOAF 40 -45 MINE STEAMShIP ROUND (80 LBS QUART) 2 ¾... -
Page 18: Cook & Hold/Roast & Hold Recommended Time & Temperature
Installation and Operation of 613 & E Series Electric Convection Oven D. COOK & HOLD/ROAST & HOLD RECOMMENDED TIME & TEMPERATURE PRODUCT COOK HOLD COOK HOLD TIME TOTAL TEMP TEMP TIME MINIMUM TIME PRIME RIB 3 hRS 1 hR 4 hR BONE IN 200°F 140°F... -
Page 19: General Guidelines For Cook & Hold - Roast & Hold
Installation and Operation of 613 & E Series Electric Convection Oven E. GENERAL GUIDELINES FOR COOK & HOLD - ROAST & HOLD • Always allow the meat to remain in the "hOLD" cycle for a minimum of two hours. This will assure that the stored heat of the “COOK - ROAST”... -
Page 20: Maintenance Instructions
3. Position the doors so they are nearly closed but If you should require assistance in the selection of not latched. a qualified service agency, please contact Duke 4. To adjust the cam loosen the setscrew and rotate Manufacturing Co.’s Service Department at 800- the cam until you hear the switch click. -
Page 21: To Check Calibration
Installation and Operation of 613 & E Series Electric Convection Oven thermostat related problems could be attributed to their This thermostat is a direct-acting (opens on temperature being out of adjustment (calibration). A thermostat that is rise) device. out of calibration may cause unsatisfactory cooking results such as uneven baking, prolonged cooking times, etc. -
Page 22: 6/13 - Electric Convection Oven Repair Parts List
Installation and Operation of 613 & E Series Electric Convection Oven 6/13 & "E" SERIES– ELECTRIC CONVECTION OVEN REPAIR PARTS LIST Part # Description Part # Description 155363 Mylar, lower, electric "E" Series 153164 Baffle, 6/13 porcelain 153134 Mylar panel, “v” model, 2-button 153738 Baffle, 6/13, stainless steel 153566... -
Page 23: Mounting Flue Extension To Top Oven
Installation and Operation of 613 & E Series Electric Convection Oven MOUNTING FLUE EXTENSION TO TOP OVEN 1. Remove existing flue trim from the top of oven. 2. Insert flue extension thru top opening first and then Screws (4) align holes on flue extension with holes on rear Flue Trim panel of oven. -
Page 24: 6/13 Door Assembly (Typical)
Installation and Operation of 613 & E Series Electric Convection Oven 6/13 DOOR ASSEMBLY (TYPICAL) 153237 Assy, Turnbuckle 153403 Finish Piece, Top 153416 Catch, Door 153801 Latch, Roller 153088 153084 Assy, Glass Gasket, Top 153462 Door, Left 153083 Gasket, Side (2) 153285 Door,Right 153085... -
Page 25: 6/13 "V" Controller Assembly
Installation and Operation of 613 & E Series Electric Convection Oven 6/13 “V” CONTROLLER ASSEMBLY 153460 Switch, Rotary 149403 Thermostat 153134 156015 Mylar Panel, V Model Timer 1-Hr, 120V, 60Hz 153142 553925 Knob Buzzer, 120V 153203 Light, Oven Ready, 120V 153142 Knob 153144... -
Page 26: 6/13 "Xx" Controller Assembly
Installation and Operation of 613 & E Series Electric Convection Oven 6/13 “XX” CONTROLLER ASSEMBLY 153460 Switch, Rotary 153564 153177 XX Controller Probe, Temperature 153566 159107 Mylar Panel, XX Model Keps Nut 4-40 153142 Knob 153203 Light, Oven Ready, 120V 153144 Switch, 2-Speed, Fan 153142... -
Page 27: 6/13 Contactor Identification
Installation and Operation of 613 & E Series Electric Convection Oven 6/13 CONTACTOR IDENTIFICATION POWER SUPPLY CONNECTION 153210 153156 Terminal Block Contactor, 50AMP GROUND WIRES 153213 Plug, Ground SOURCE WIRES L1, L2 & L3 ShOWN (3 PhASE) L1 & L3 (1 PhASE) -
Page 28: V" Controller Wiring Schematic
Installation and Operation of 613 & E Series Electric Convection Oven “V” CONTROLLER WIRING SCHEMATIC... -
Page 29: Xx" Electric Control Wiring Schematic
Installation and Operation of 613 & E Series Electric Convection Oven “XX” ELECTRIC CONTROL WIRING SCHEMATIC... - Page 30 Installation and Operation of 613 & E Series Electric Convection Oven “ZZ” CONTROLLER WIRING SCHEMATIC...
- Page 31 Toll Free: 800-735-3853 Phone: +86 21 59153525 / 59153526 Fax: 314-231-2460 Fax: +86 21 33600628 service-dispatch@dukemfg.com DUKE EMEA - EUROPE, MIDDLE DUKE EMEA – UK, IRELAND, NORDIC EAST, AFRICA, RUSSIA COUNTRIES Duke Manufacturing CR, s.r.o. Duke Manufacturing UK Ltd. Zdebradska 92...
- Page 32 2305 N. Broadway St. Louis, MO 63102 Phone: 314-231-1130 Toll Free: 800-735-3853 Fax: 314-231-5074 www.dukemfg.com Duke EMEA - Europe, Middle East, Africa, Russia Duke Manufacturing CR, s.r.o. Zdebradska 92 jazlovice, Ricany Building number DC 4 on the ProLogis Park Prague D1 West...
