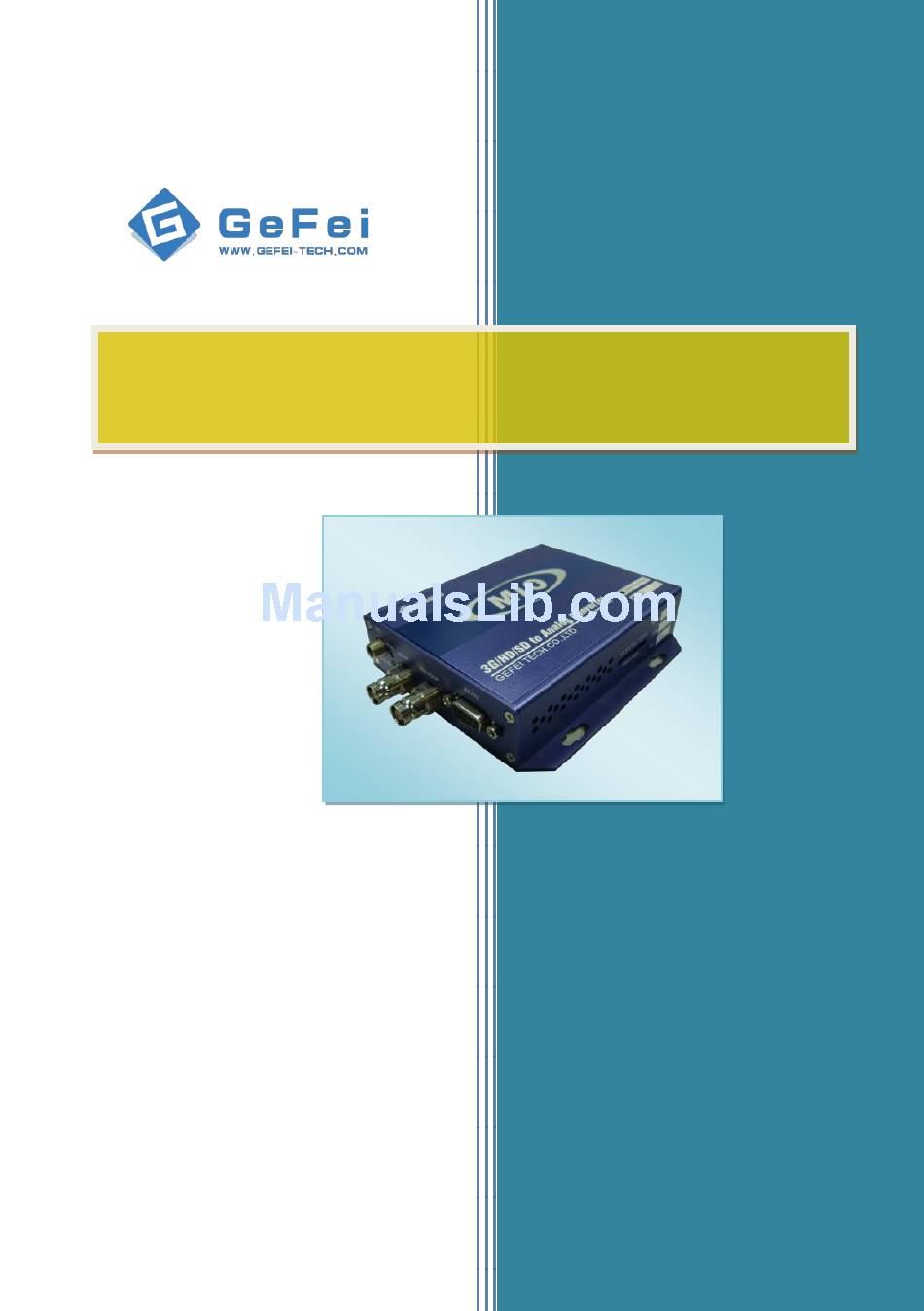

- Page 1 MIO ENC-HD-AUD 3G/HD/SD to Analog Video and Audio User Manual V1.0 www.gefei-tech.com [Gefei Tech.Co.,Ltd]...
-
Page 2: Table Of Contents
Table of Content I. Description ...............................1 II. Features of products ...........................1 III. Interfaces on the panel ..........................2 3.1 Overview ..........................2 3.2 Left panel ..........................2 3.3 Right panel ..........................4 3.4 Front panel ..........................4 IV. Technical specification ...........................7 V. Contact Us ...............................9 Device List................................. - Page 3 Copyright Copyright © 2009 Gefei Tech. Co., Ltd all rights reserved. This document may not be copied in whole or in part. Trademarks Gefei-Tech，Magi，MIO，VIO，XIO，MVS，MRS are either registered trademarks or trademarks of Gefei Tech. Co., Ltd in China and/or other countries. Other trademarks used in this document are either registered trademarks or trademarks of the manufacturers or vendors of the associated products.
-
Page 4: Description
MIO ENC-HD-AUD I. Description Based on Mini BOX platform, MIO ENC-HD-AUD is a small converter which can convert 3G/HD/SD-SDI to analog composite video signal, analog component video signal, S-video signal, or HD YUV signal and supports the input format of 480i 59.94, 576i 50, 720p, 1080i and 1080p. -
Page 5: Interfaces On The Panel
MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual Supply real-time input signal status indicator and power indicator Support loop function with power on III. Interfaces on the panel 3.1 Overview Load Default Load Default: Using a push pin to press the button to restore the default settings. The default parameters: CVBS + YC output, G1 CH1&CH2. - Page 6 IN：Signal indicator, the indicator shows green as the video is locked with no errors. SDI-IN：BNC interface, digital video signal input (support SDI with embedded audio). MIO ENC-HD-AUD cannot change the frame frequency, that is, the frame frequency of output signal is the same as the one of input signal.
-
Page 7: Right Panel
3.3 Right panel Analog Video OUT：BNC interface, outputs analog video signal and supports three kinds of output: CVBS/YUV/YC. MIO ENC-HD-AUD cannot change the frame frequency, that is, the frame frequency of output signal is the same as the one of input signal. - Page 8 MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual MODE SET: DIP dial switch; Users can set the DIP to get more functions according to their actual demand. Please refer to the specific meanings switch table： Function...
- Page 9 MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual set by the computer. 2) NO. 0 (10) determines whether the device under adjustment status. Put it at ON, it indicates the device under adjustment status, users can adjust the other switches to achieve the functions in the list;...
-
Page 10: Technical Specification
MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual IV. Technical specification Digital video input: Input interface: 1*3G/HD/SD-SDI, BNC connection Impedance: 75Ω Format: 525i 59.94, 625i 50, SMPTE 259M-C；270Mb/s 720p 50/59.94/60, 1080i 50/59.94/60, SMPTE-292M；1.485Gps 1080p 50/59.94/60, SMPTE-425；2.970Gps... - Page 11 MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual Impedance: 600Ω Status indicator: Input signal status indicator Power indicator (Indicate by shining or extinguishing of the green LED) Power consumption: Power: 12VDC 1 A Dimension: 123mm*92mm*29mm 8 / 10...
-
Page 12: Contact Us
V. Contact Us Technical support Tel: 010-58858188 Fax: 010-58858189 Website www.gefei-tech.com E-mail：support@gefei-tech.com Address Beijing Gefei Tech. Co., Ltd A-603 Power Creative Plaza NO.1 Shangdi E.Rd. Haidian District Beijing 100085 To Find More information , please visit www.gefei-tech.com 9 / 10... -
Page 13: Device List
MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output User manual Device List Name Specification Quantity Remark MIO ENC-HD-AUD 3G/HD/SD to analog converter with analog audio output 12VDC 1A AC-DC power Total Accessories List Name Specification Quantity Remark Video Cable/interface...
