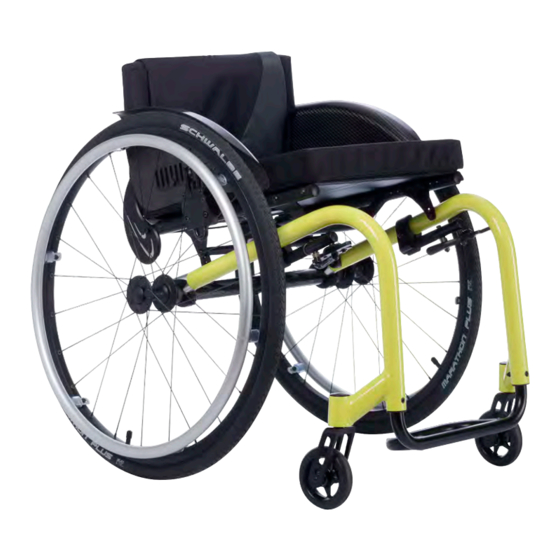

KÜSCHALL K-SERIES
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Küschall K-SERIES

Summary of Contents for Küschall K-SERIES

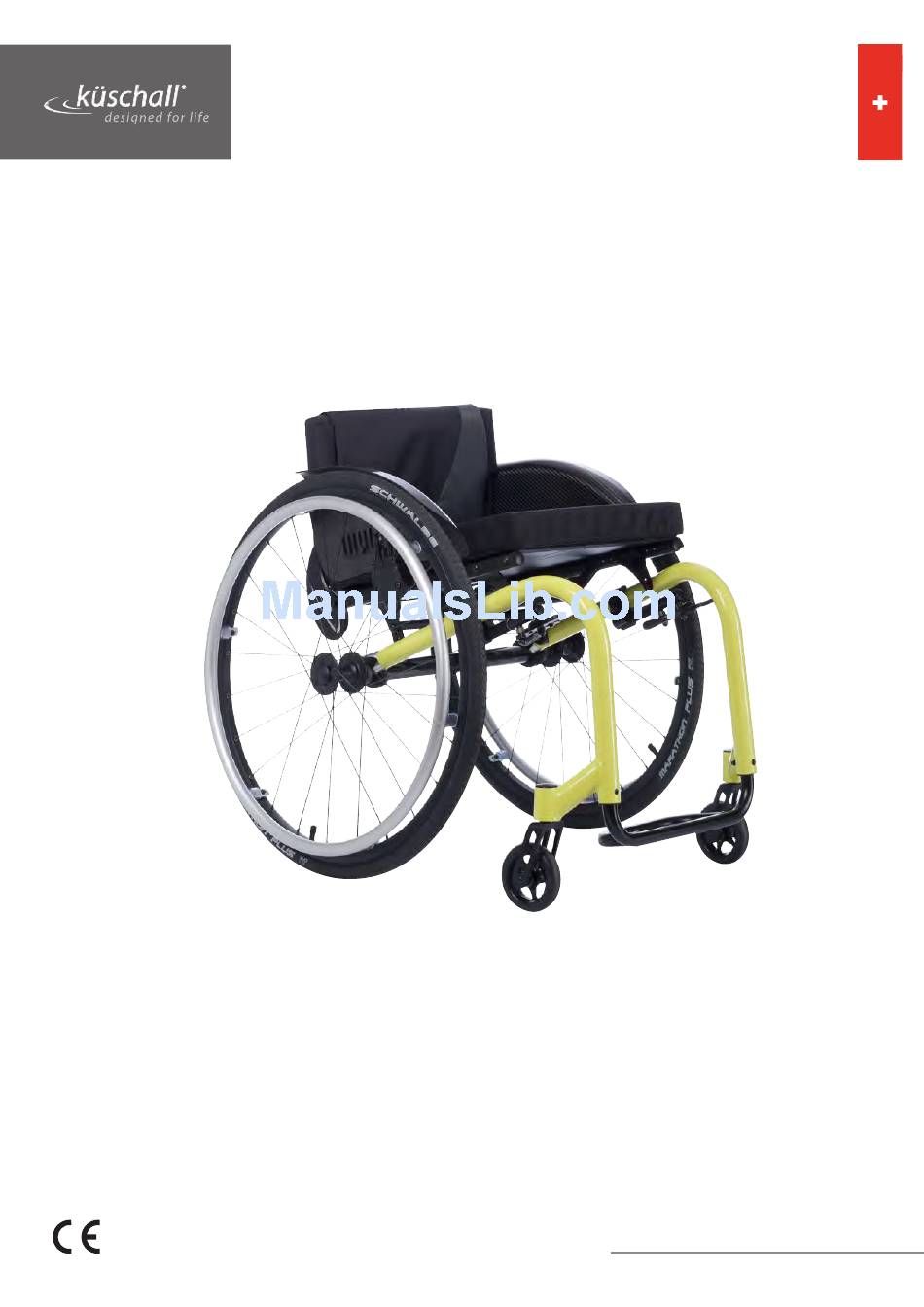

  • Page 1 KÜSCHALL K-SERIES Service Manual...

  • Page 3: Table Of Contents

    Service Manual KÜSCHALL K-SERIES TABLE OF CONTENTS GENERAL ........................4 Introduction Spare parts and adaptations Tightening Allen screws Torque Checks Identifying and alleviating malfunctions FRAME ..........................6 SEAT ..........................7 Seat width (SB) Seat depth (ST) Front seat height (SHv) Rear seat height (SHh)

  • Page 4: General

    Service Manual KÜSCHALL K-SERIES GENERAL Introduction This service manual is part of the instructions and contains the tech- nical information for servicing, configuring and repairing a küschall ® wheelchair. WARNING!  Danger of accident and severe injuries. If the wheelchair is improperly set it can cause accidents and severe injuries.

  • Page 5: Torque

    Service Manual KÜSCHALL K-SERIES Tightening and loosening if there is no nut If an Allen screw is directly screwed into a screw thread, the screw must be tightened using an Allen key. Ensure that the Allen key is of good quality and not worn.

  • Page 6: Frame

    FRAME FRAME The K-Series frame is available in aluminium, titanium and carbon. Aluminium and titanium frames come with frame angles of 75° and 90°; carbon frames come with a frame angle of 75°. Further- more, the 75° and the 90° aluminium frames come with adduction and in a short, respective +5 version.

  • Page 7: Seat

    Service Manual KÜSCHALL K-SERIES SEAT SEAT Seat width (SB) Available seat widths: SB 340 to 480 in 20 mm steps. Changing the seat width is very complicated and requires the replacement of numerous parts. Seat depth (ST) Available seat depths: ST 375 to 525 in 25 mm steps.
  • Page 8 Service Manual KÜSCHALL K-SERIES SEAT Possible front and rear wheel combinations Rear Frame wheel 75° short 24‘‘ 75° / 75 / 90° °+5 short 90° / 90° 75° short 75° / 75° 25‘‘ 90° short 90° / 90° 75° / 75°...

  • Page 9: Rear Seat Height (Shh)

    Service Manual KÜSCHALL K-SERIES SEAT Rear seat height (SHh) The seat braces can be repositioned to adjust the rear seat height. The seat braces are available in three different sizes, covering seat heights of between 380 and 490 mm. Generally, we recommend fixing the seat braces to the lower hole on the frame.

  • Page 10: Tipping Point Adjustment

    Service Manual KÜSCHALL K-SERIES SEAT Tipping point adjustment The tipping point of the wheelchair can be adjusted by changing the horizontal position of the seat module. Difficulty: Tools: à 4, 5 ˜˜˜ Remove the rear wheels, fold the backrest forward and place the ...

  • Page 11: Backrest

    Service Manual KÜSCHALL K-SERIES BACKREST BACKREST The adjustable back is fitted with velcro bands and a cover. Apart from the adjustable back there is the light cover, which is produced individually for each backrest height (RH) and seat width (SB).

  • Page 12: Backrest Height (Rh)

    Service Manual KÜSCHALL K-SERIES BACKREST Backrest height (RH) The height of the backrest can be adjusted by moving the backrest tube. Adjusting the backrest height Readjusting the push handle/telescopic tube à 3 Difficulty: Tools: ˜™™ Remove the backrest padding. ...

  • Page 13: Replacing The Backrest Tube

    Service Manual KÜSCHALL K-SERIES BACKREST Replacing the backrest tube Difficulty: Tools: à 3,4 8, 10 ˜™™ Remove the backrest padding.  Slide the backrest bands upwards or downwards to gain access to  the screws . Remove the screws and nuts on both sides.

  • Page 14: Replacing The Handle

    Service Manual KÜSCHALL K-SERIES BACKREST Replacing the handle An adhesive (e.g. hair spray) is used in these instructions. When applied to the handle, this substance works as a lubricant and as an adhesive once dry.  After drying, the adhesive used must be able to resist a pull-off force of 750 N.

  • Page 15: Backrest Angle (Rw)

    Service Manual KÜSCHALL K-SERIES BACKREST Backrest angle (RW) The angle of the backrest can be changed by repositioning the excentre plate in the backrest joint plate. The following angles (measured from the seat) can be set: 74° 78° 82° 86°...

  • Page 16: Footrests

    Service Manual KÜSCHALL K-SERIES FOOTRESTS FOOTRESTS The footrest must be selected in accordance with the seat width. A standard footrest and an angle-adjustable footrest are available. Furthermore, there is a choice between a high-mounted footrest and a fold-up footrest. Lower leg length (UL) To change the lower leg length, the footrest can be fixed at a high- ...

  • Page 17: Fitting And Adjusting High-Mounted Footrest

    Service Manual KÜSCHALL K-SERIES FOOTRESTS Fitting and adjusting high-mounted footrest Difficulty: Tools: à 4, 5 8, 10 ˜™™ Fit the frame bar  for the high-mounted footrest to the front  frame on both sides using the screw connections .

  • Page 18: Side Parts

    Service Manual KÜSCHALL K-SERIES SIDE PARTS SIDE PARTS Armrest The clothes-guard fitted as standard can be augmented with an armrest. Fitting and adjusting an armrest à 3, 4, 5 8, 10 Difficulty: Tools: ˜˜™ Fold the backrest forwards.  Remove the backrest spigots and replace them with the armrest ...

  • Page 19: Clothes-Guard/Mudguard

    Service Manual KÜSCHALL K-SERIES SIDE PARTS Clothes-guard/mudguard The clothes-guard fitted as standard can be replaced by a mudguard. Clothes- guard and mudguard are available in plastic or in carbon. For the carbon mudguard there is an additional size (XL) for the two smallest rear seat hights (SHh).
  • Page 20 Service Manual KÜSCHALL K-SERIES SIDE PARTS Replacing the clothes-guard The mounting element  on the backrest must already be fitted. Difficulty: Tools: à 3, 4 ˜˜™ If present, remove the clothes-guard to be replaced by loosening  the screw connection .

  • Page 21: Front Wheels

    Service Manual KÜSCHALL K-SERIES FRONT WHEELS FRONT WHEELS Replacing a front wheel à 2x3 Difficulty: Tools: ˜™™ Remove the screw  with disk on one side. Remove the wheel  axle . Remove the front wheel .  Place the sleeves  between the new front wheel  and the fork.

  • Page 22: Rear Wheels

    Service Manual KÜSCHALL K-SERIES REAR WHEELS REAR WHEELS Ensuring the rear wheels are parallel à 5 Difficulty: Tools: ˜˜™ Loosen the screws  on both clamp sets. Rotate the axle tube to  set the correct position. Tighten the screw  on both sides.

  • Page 23: Changing The Wheel Chamber / Fitting And Adjusting An Axle

    Service Manual KÜSCHALL K-SERIES REAR WHEELS Changing the wheel chamber / Fitting and adjusting an axle Standard axle Difficulty: Tools: à 5 ˜˜™ A new axle must be used to change the wheel chamber. Remove the screws  on both sides and open up the lower part ...

  • Page 24: Brakes

    Service Manual KÜSCHALL K-SERIES BRAKES BRAKES Fitting / adjusting the parking brake à 5 Difficulty: Tools: ˜˜™  Following each positioning, the rear wheel parking brakes (e.g. when changing the wheel chamber) must be readjusted.  The parking brake function is only guaranteed if the tire has the corresponding air pressure.

  • Page 25: Options & Accessories

    Service Manual KÜSCHALL K-SERIES OPTIONS & ACCESSORIES OPTIONS & ACCESSORIES Antitipper There are two different sizes of antitipper for both the left and the right sides. Fit antitipper without rear wheel extension à 3, 5 Difficulty: Tools: ˜˜™ Loosen the screw  and the screw connection  and remove ...

  • Page 26: Active Antitipper

    Service Manual KÜSCHALL K-SERIES OPTIONS & ACCESSORIES Active antitipper Fitting and adjusting an active antitipper Difficulty: Tools: à 3, 5 ˜˜˜ Fit the holder  to the axle tube. Here, only lightly tighten the  screws . Remove the QuickPin , slide the active antitipper over the holder ...

  • Page 27: Fitting The Pelvic Belt

    Service Manual KÜSCHALL K-SERIES OPTIONS & ACCESSORIES Fitting the pelvic belt Difficulty: Tools: 10 mm ˜™™ 1. Remove cap nut  and washer . 2. Attach the steel strap  to the backrest joint screw  using the supplied, new cap nut  and washer .

  • Page 28: Küschall Ag, Switzerland | 2014-07

    Küschall AG Benkenstrasse 260 CH-4108 Witterswil kueschall@invacare.com www.kuschall.com Service manual küschall K-Series ENGLISH | 2014-07 küschall distributors ® Belgium & Luxemburg: Invacare nv • Autobaan 22 • B-8210 Loppem Tel: (32) (0)50 83 10 10 • Fax: (32) (0)50 83 10 11 • belgium@invacare.com Danmark: Invacare A/S •...
