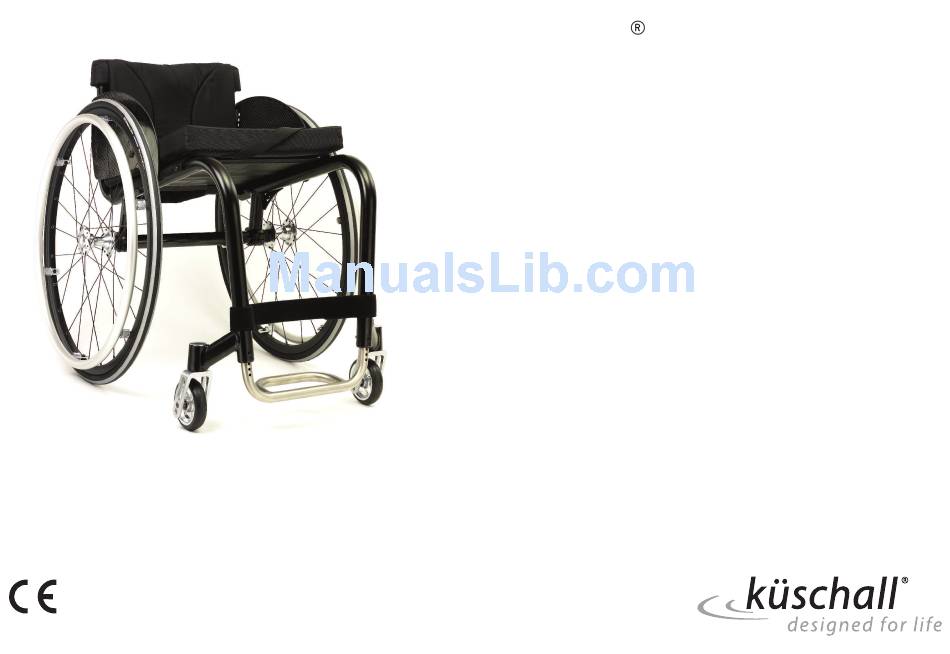

Page 1: User Manual
Küschall The KSL EN Active wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference. - Page 2 ©2013 Küschall AG All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Küschall AG. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Küschall AG or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents Negotiating steps and kerbs ....16 Going up and down stairs ....18 Negotiating ramps and slopes . -
Page 4: General
The KSL 1 General WARNING! Indicates a hazardous situation that could result in serious injury or death if it is not avoided. 1.1 Information about the User Manual CAUTION! Thank you for choosing a küschall® wheelchair. Indicates a hazardous situation that could result in This User Manual contains important information about using the minor or slight injury if it is not avoided. -
Page 5: Intended Use
General 1.6 Copyright protection costs arising from the rectification of defects such as freight and travel expenses, labour costs, fees etc. This User Manual is protected by copyright. It may not be reprinted or copied or transferred to third parties in part or in full without the prior The term of the warranty is 24 months. -
Page 6: Safety
The KSL 2 Safety WARNING! Risk due to wheelchair being out of control At high speed you could lose control of your wheelchair 2.1 Safety information and overturn. This section contains important safety information for the protection Never exceed a speed of 7 km/h. -
Page 7: Components And Their Functions
Footrest Parking brake Frame Seat / Cushion Clothes-guard Short description The KSL is a rigid frame wheelchair. The equipment of your wheelchair may differ from the diagram as each wheelchair is manufactured individually to the specifications in the order. 1525133-B... -
Page 8: Parking Brakes
The KSL 3.2 Parking brakes Performance brake The parking brakes are used to immobilise the wheelchair when it is stationary to prevent it from rolling away. WARNING! Risk of overturning if you brake sharply If you apply the parking brakes while you are moving,... -
Page 9: Backrest
Components and their functions 3.3 Backrest 3.4 Foldable backrest (optional) Backrest cover Folding down/straightening up the back You can adjust the tension of the backrest cover as required. Adjusting the backrest cover Remove the backrest cushion Loosen the Velcro® tapes on the rear of the backrest cover by simply pulling on them. -
Page 10: Antitipper
The KSL 3.5 Antitipper An antitipper prevents the wheelchair from tipping backwards. WARNING! Risk of overturning Antitippers that are incorrectly set or no longer working can lead to overturning. Always check that the antitipper is working before using the wheelchair and have it set or readjusted by a specialist dealer when required. -
Page 11: Seat Cushion
Components and their functions Activating the antitipper Push the antitipper downwards against the spring and swivel it backwards through 90° until it engages. WARNING! Risk of tipping An activated antitipper can catch when negotiating a step or an edge. Always deactivate the antitipper before driving over a step or kerb. -
Page 12: Accessories
The KSL Fitting the pelvic belt 4 Accessories Remove the backrest cover and attach the Velcro® fastener to the 4.1 Pelvic belt backrest at the required height. Ensure that the fastener is at the front. Your wheelchair can be fitted with a pelvic belt which will prevent... -
Page 13: Setup
Setup 5 Setup 5.1 Safety information CAUTION! Risk of injury Before using the wheelchair, check its general condition and its main functions, 8.2 Maintenance Schedule, page 24. Your specialist dealer will supply your wheelchair ready for use. Your dealer will explain the main functions and ensure that the wheelchair meets your needs and requirements. -
Page 14: Using The Wheelchair
The KSL 6.2 Braking during use 6 Using the wheelchair Whilst you are moving, you brake by transferring force to the handrim with your hands. 6.1 Safety information WARNING! WARNING! Risk of overturning Risk of accidents If you apply the parking brakes while you are moving,... -
Page 15: Getting In And Out Of The Wheelchair
Using the wheelchair 6.3 Getting in and out of the wheelchair 6.4 Driving and steering the wheelchair You drive and steer the wheelchair using the handrims. WARNING! Before driving without an assistant you must find your wheelchair’s Risk of overturning tipping point. -
Page 16: Negotiating Steps And Kerbs
The KSL 6.5 Negotiating steps and kerbs Finding the tipping point WARNING! Risk of overturning When negotiating steps you could lose your balance and tip the wheelchair over. Always approach steps and kerbs slowly and carefully. Do not go up or down steps that are higher than 25 cm. - Page 17 Using the wheelchair With an assistant Going up a step WARNING! Risk of serious injuries Going up steps and kerbs frequently can result in earlier than expected fatigue break of the wheelchair backrest. The user might fall out of the wheelchair. Always use a tipper aid when going up steps or kerbs.
-
Page 18: Going Up And Down Stairs
The KSL 6.6 Going up and down stairs WARNING! Risk of tipping WARNING! When going down a step without an assistant you Risk of overturning could tip over backwards if you cannot control your When negotiating stairs you could lose your balance wheelchair. -
Page 19: Negotiating Ramps And Slopes
Using the wheelchair 6.7 Negotiating ramps and slopes Going up slopes To go up a slope, you must create some momentum, keep up the WARNING! momentum and control the direction at the same time. Risk due to wheelchair being out of control When negotiating slopes or gradients your wheelchair could tip backwards, forwards or sideways. -
Page 20: Stability And Balance When Seated
The KSL Going down slopes Leaning forwards When going down slopes, it is important to control your direction and WARNING! particularly your speed. Risk of falling out If you lean forwards out of the wheelchair you could fall out of it. - Page 21 Using the wheelchair Reaching backwards WARNING! Risk of falling out If you lean too far backwards you could tip your wheelchair over. Do not lean out over the backrest. Use an antitipper device. Point the front wheels forwards. (To do this, move your wheelchair forwards slightly then back again.) Do not apply the parking brakes.
-
Page 22: Transport
The KSL 7.2 Removing and fitting the rear wheels 7 Transport WARNING! 7.1 Safety information Risk of overturning If the removable axle of a rear wheel is not fully WARNING! engaged, the wheel can become loose during use. This Risk of injury if wheelchair is not secured during can lead to overturning. - Page 23 Transport Fitting the rear wheels Release the brakes. With one hand, hold the wheelchair upright. With the other, hold the wheel through the external spoke rim around the wheel hub. Using your thumb, press the removable axle button and hold it down.
-
Page 24: Maintenance
The KSL 8 Maintenance weekly monthly annually Check parking brakes 8.1 Safety information Have wheelchair checked by a specialist dealer WARNING! Some materials deteriorate naturally over time. This Check the tyre pressure could result in damage to wheelchair components. Your wheelchair should be checked by a specialist Check the tyre pressure, 11.3 Tyres, page 31. - Page 25 Tighten any loose bolts with the suitable torque. Therefore damage as a result of a heavy collision or hard blow. refer to the Service Manual The KSL, available on the internet at www.kueschall.com. It is essential to have your wheelchair checked by a specialist dealer after a heavy collision or hard blow.
-
Page 26: Cleaning
The KSL 8.4 Disinfection round to ensure that the inner tube is not trapped between the tyre and the rim. The wheelchair may be disinfected by spraying or wiping with tested, Inflate the tyre to the maximum operating pressure. Check that approved disinfectants. -
Page 27: Troubleshooting
Troubleshooting 9 Troubleshooting 9.1 Safety information Faults may arise as a result of daily use, adjustments or changing demands on the wheelchair. The table below shows how to identify and repair faults. CAUTION! Contact your specialist dealer immediately if you notice a fault with your wheelchair, e.g. -
Page 28: Identifying And Repairing Faults
The KSL 9.2 Identifying and repairing faults Fault Possible cause Action The wheelchair does not travel Incorrect tyre pressure on one rear wheel Correct tyre pressure, → 11.3 Tyres, page 31 in a straight line One or more spokes broken Replace faulty spoke(s), →... -
Page 29: After Use
After Use 10 After Use 10.1 Re-use The wheelchair is suitable for re-use. The following actions should be taken: • Cleaning and disinfection, 8.3 Cleaning, page 26 and 8.4 Disinfection, page 26 in this manual. • Inspection, 8.2 Maintenance Schedule, page 24 in this manual. •... -
Page 30: Technical Data
The KSL 11 Technical data Seat depth 385 - 485 mm, in increments of 25 mm Backrest angle 74°, 78°, 82°, 86°, 90° 11.1 Dimensions and weight Knee-to-heel length 350 - 500 mm, in increments of 10 mm All dimension an weight specifications refer to a seat width of 400 mm,... -
Page 31: Environmental Conditions
Technical data 11.2 Environmental conditions Manufacturer’s address Do not expose the wheelchair to temperatures below -20 °C or above Product description 40 °C. Date of manufacture 11.3 Tyres Instruction to read the User Manual The ideal pressure depends on the tyre type: Maximum user weight Tyre Max. - Page 32 Invacare Australia Pty Ltd, ABN 45 074 676 378, PO Box 5002, 1 Lenton Place, North Rocks, NSW 2151, Australia Freephone: 1800 069 042, Fax: 02 8839 5353, E-mail: sales@invacare.com.au Web: www.invacare.com.au Küschall AG, Benkenstrasse 260, CH-4108 Witterswil, www.kuschall.com 1525133-B 2013-09-04 *1525133B*...
