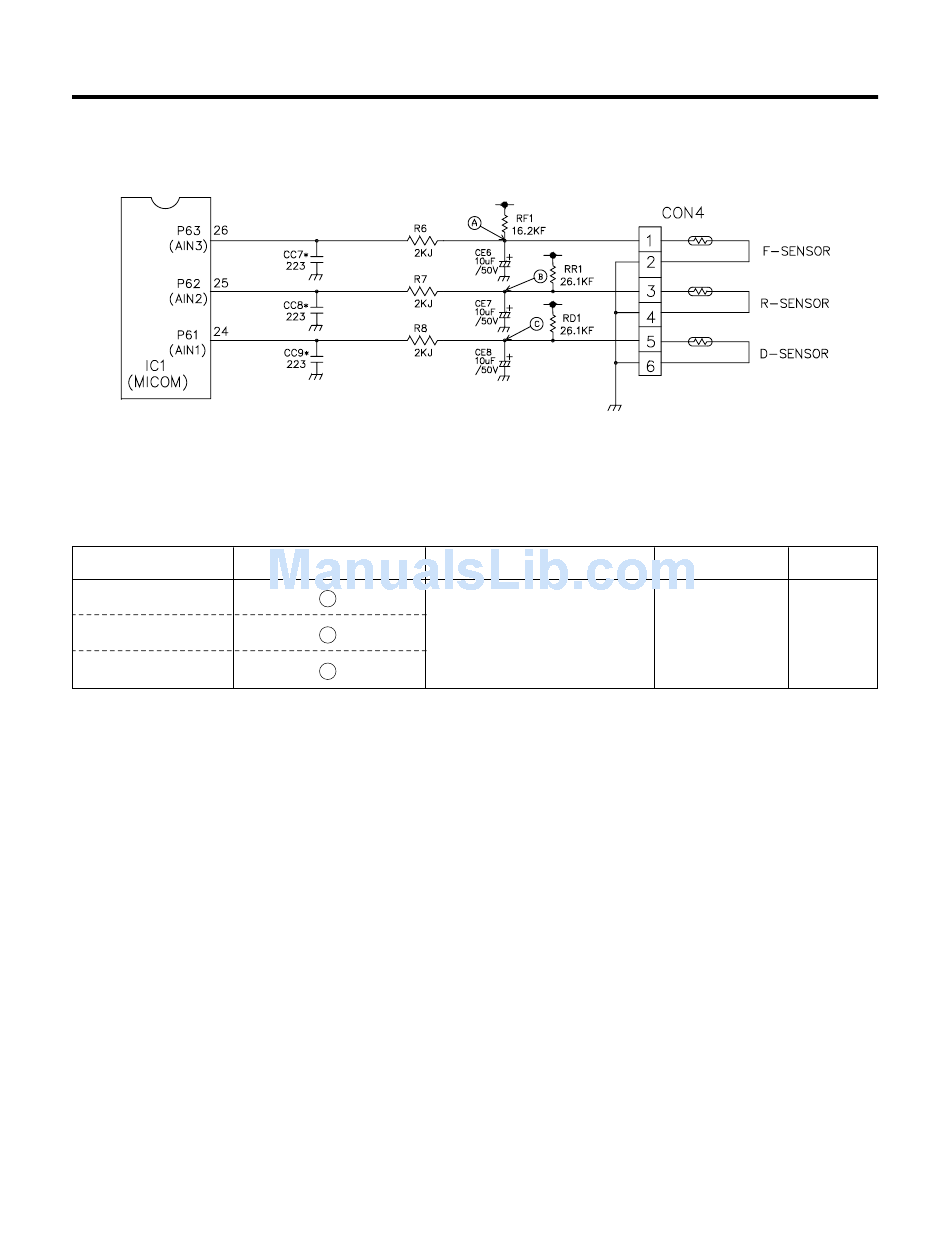

8-2-5 Temperature Sensor Circuit
The upper CIRCUIT reads REFRIGERATOR temperature, FREEZER T emperature, and DEFROST-SENSOR temperature
for defrosting and the indoor temperature for compensating for the surrounding temperature into MICOM.
OPENING or SHORT state of each TEMPERATURE SENSOR are as follows:
SENSOR
Freezer Sensor
Refrigerator Sensor
Defrosting Sensor
CHECK POINT
POINT A Voltage
POINT B Voltage
POINT Voltage
C
NORMAL (-30°C ~ 50°C)
0.5 V ~ 4.5 V
-29 -
SHORT-CIRCUITED OPEN
0 V 5 V
