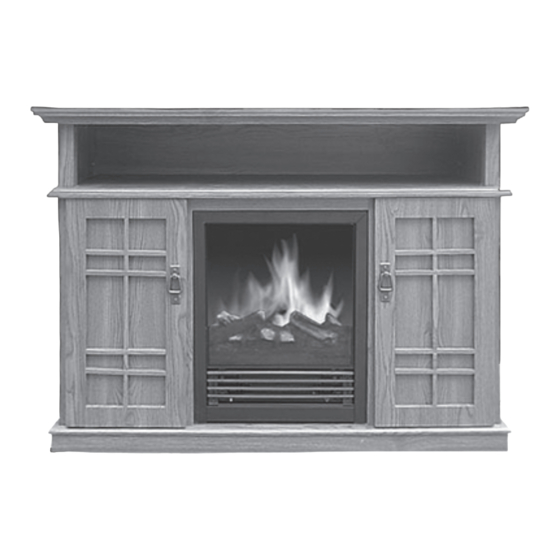

decorflame M903L-48BHO Owner's Manual

Electric fireplace heater
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
IMPORTANT:
PLEASE NOTE: WHEN YOU OPEN THE CARTON CAREFULLY CHECK THE UNIT
AND MAKE SURE THERE IS NO DAMAGE. IF YOU HAVE ANY PROBLEMS WITH
THE UNIT, WITH HOW THE VARIOUS FUNCTIONS WORK, DAMAGED OR MISSING
PARTS PLEASE CALL 1-844-455-4621 IMMEDIATELY FOR SERVICE.
NOTe: DO NOT ReTuRN uNIT TO THe sTORe BefORe CALLINg THe TOLL fRee
NuMBeR. DO NOT DIsPOse Of yOuR CARTON uNTIL yOu ARe COMPLeTeLy
sATIsfIeD wITH yOuR New fIRePLACe HeATeR.
NOTE: Light bulbs may become loose during shipping. If the flame effect is dim or does
not work, please check that light bulb or bulbs are finger tight in socket. See instructions for
replacing bulb or bulbs. Please do not return the sample to the store before checking light bulbs.
NOTE: The electric fireplace heater may emit a slight harmless odor when first turned on.
This is caused by activating the internal heater components for the first time and should not
occur again.
iNStrUctiON MANUAl
ATTeNTION:
1. Find a location for the fireplace heater that is protected from direct sunlight.
2. Do not plug the unit into the power outlet before reading all instructions.

iMPOrtANt SAFEtY iNStrUctiONS

wHeN usINg eLeCTRICAL APPLIANCes, BAsIC PReCAuTIONs sHOuLD ALwAys
Be fOLLOweD TO ReDuCe THe RIsk Of fIRe, eLeCTRIC sHOCk, AND INJuRy TO
PeRsONs, INCLuDINg THe fOLLOwINg:
1) Read all instructions before using this electric fireplace heater.
2) This electric fireplace heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. The grill directly in front of the heater outlet becomes
hot during heater operation. keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) away
from the front of the unit and keep them away from the sides and rear.
3) extreme caution is necessary when any heater is used by or near children
or individuals with disabilities and whenever the fireplace is left operating
and unattended.
4) Always unplug fireplace when not in use.
5) Do not operate any electric fireplace with a damaged cord or plug or after
the heater malfunctions, has been dropped or damaged in any manner.
6) Do not use outdoors.
7) This electric fireplace heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater where it may fall into a
bathtub or other water container.
8) Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
9) To disconnect fireplace, turn controls to off, then remove plug from outlet.
10) Connect to properly grounded outlets only.
11) Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
ElEctric FirEPlAcE
HEAtEr
Model: M903L-48BHO / BDC (NDf-68N)
12) To prevent a possible fire, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become blocked.
13) A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
14) use this fireplace heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury
to persons.
15) Avoid the use of an extension cord because the extension cord may overheat
and cause a risk of fire. However, if you have to use an extension cord, the cord
shall be No.14 Awg minimum size and rated not less than 1875 watts.
16) Do not plug this product into a receptacle controlled by a wall switch
or dimmer.
17) when storing or transporting the unit and cord, keep in a dry place,
free from excessive vibration and store so as to avoid damage.
SAVE tHESE iNStrUctiONS FOr FUtUrE USE.
CAuTION:
If yOu use THIs HeATeR IN CONJuNCTION wITH A THeRMAL CONTROL, A
PROgRAM CONTROLLeR, A TIMeR OR ANy OTHeR DevICe THAT swITCHes THe
HeATeR ON AuTOMATICALLy, ReMeMBeR TO OBseRve ALL sAfeTy wARNINgs
AT ALL TIMes. THe fIRePLACe HeATeR HAs sAfeTy OveRHeAT PROTeCTION.
If THe OveRHeAT PROTeCTION TRIPs, swITCH Off ALL swITCHes AND wAIT
APPROxIMATeLy 5–10 MINuTes. IT sHOuLD ReseT AuTOMATICALLy ONCe THe
uNIT COOLs DOwN.
warNiNG: DO NOt lOaD MOrE tHaN 22.7 kG (50 lBS) ON tHE tOp SHElF.
wARNINg:
PROCeDuRes AND TeCHNIques, If NOT CARefuLLy fOLLOweD, wILL ResuLT
IN DAMAge TO THe equIPMeNT, AND wILL exPOse THe useR TO THe RIsk Of
seRIOus INJuRy, ILLNess OR DeATH.
THIs eLeCTRIC fIRePLACe HeATeR Is fOR use ON 120 vOLTs. THe CORD HAs
A PLug As sHOwN AT A IN ILLusTRATION BeLOw. AN ADAPTeR As sHOwN AT
C Is AvAILABLe fOR CONNeCTINg THRee-BLADe gROuNDINg-TyPe PLugs TO
TwO-sLOT ReCePTACLes. THe gReeN gROuNDINg PLug exTeNDINg fROM
THe ADAPTeR MusT Be CONNeCTeD TO A PeRMANeNT gROuND suCH As A
PROPeRLy gROuNDeD OuTLeT BOx. THe ADAPTeR sHOuLD NOT Be useD If A
THRee-sLOT gROuNDeD ReCePTACLe Is AvAILABLe.
A 15 AMP CIRCuIT Is RequIReD TO OPeRATe THIs HeATeR. If THe BReAkeR
TRIPs wHeN THe HeATeR Is useD, yOu MAy NeeD TO MOve THe HeATeR TO
ANOTHeR LOCATION OR uNPLug OTHeR APPLIANCes THAT ARe ON THe sAMe
CIRCuIT. If yOu RequIRe AN exTeNsION CORD, use ONe THAT Is RATeD AT
1875 wATTs.
1
