Note : Follow the disassembly procedure in the numerical order given.

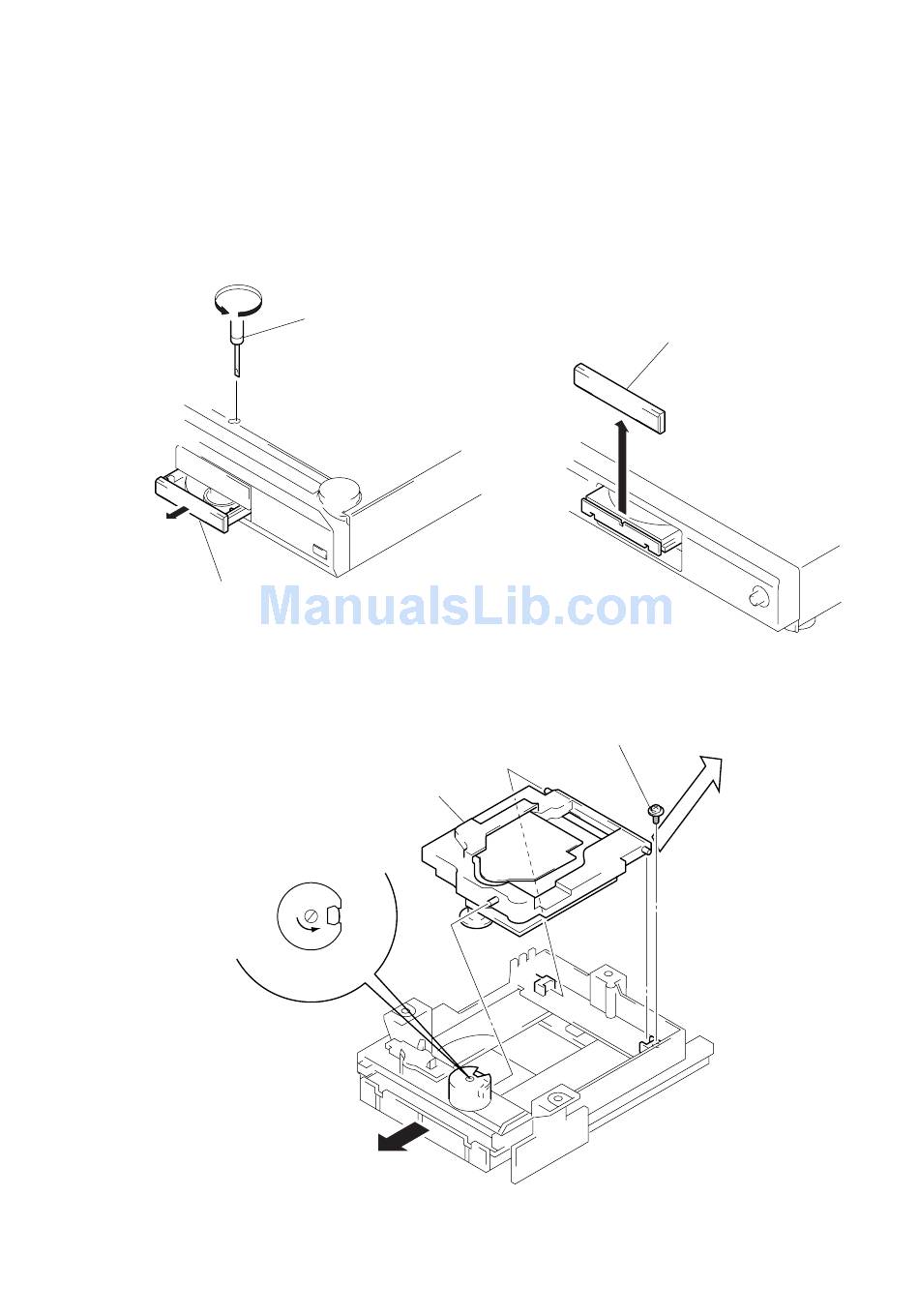

3-1. FRONT PANEL

• In order to remove the front panel block when the power supply
does not turn on, rotate the cam with tapering driver as the figure
shows, and the loading part will be moved.
Then pull out the loading part by your hand to remove the load-
ing panel as the figure shows. After that take out the front panel
block.
Loading part

3-2. BASE UNIT (BU-5BD22)

1 Turn the cam to the direction of ar-
row (counter clock wise)
by tapering driver.
SECTION 3

DISASSEMBLY

Tapering driver
BU-5BD22
2 Take off the disc table.
— 5 —
Loading panel
3 Yoke bracket
4 Remove the Base unit
(BU-5BD22) to the direction
of arrow.
