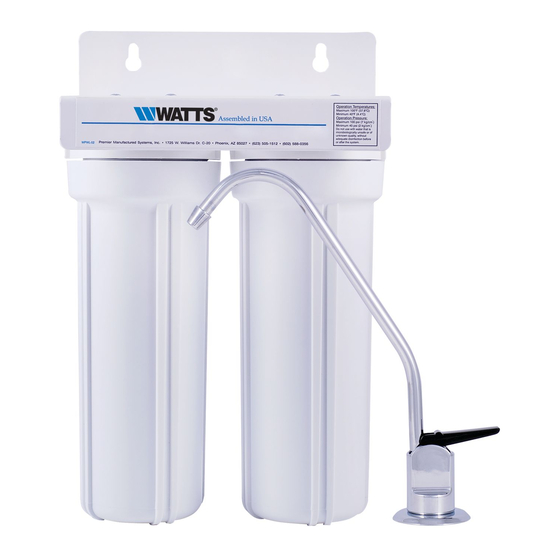

Watts PWDWLCV2 Pure Water Installation, Operation And Maintenance Manual
2-stage lcv under counter system
Hide thumbs
Also See for PWDWLCV2 Pure Water:
Table of Contents
Advertisement
Quick Links
Installation, Operation
and Maintenance Manual
2-Stage LCV Under Counter System
Model PWDWLCV2
PURE WATER
PWDWLCV2
Table of Contents
Maintenance Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operational Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contents of LCV System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools Recommended For Installation . . . . . . . . . . . . . . . . . . . . . . . . 3
Drill / Punch a Hole for Watts Top Mount Faucet . . . . . . . . . . . . . . . . 3
Standard Faucet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Under Sink Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adapt-A-Valve™ Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Filter Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Do not use with water that is microbiologically unsafe or
Note:
of unknown quality without adequate disinfection before or after
the system . Systems certified for cyst reduction may be used
on disinfected waters that may contain filterable cysts .
IOM-WQ-PWDWLCV2
Advertisement
Table of Contents
Related Manuals for Watts PWDWLCV2 Pure Water
Summary of Contents for Watts PWDWLCV2 Pure Water
-
Page 1: Table Of Contents
Drill / Punch a Hole for Watts Top Mount Faucet . . . . . . . . . . . . . . . -
Page 2: Maintenance Record
. When replac- ing any of the filter elements, pay special attention to any cleaning instructions . Should you have any further questions please refer to our website at www.watts.com or call our customer service depart- ment at 1-800-244-1299. Maintenance Record... -
Page 3: Operational Parameters
1 Faucet Assembly set on the slowest speed, drill ⁄ “ pilot hole through both If any of the items are missing, please contact Watts Premier prior to porcelain and metal casing installing. of sink at the marked center of the desired location . Use... -
Page 4: Standard Faucet Installation
STEP 2 Standard Faucet Installation Step A – Remove nut (item 11) and blue tubing (item 12) from faucet (Leave the nut and plastic delrin sleeve (item 10) on the blue tube) . Step B – Feed both the red and black tubing through the pre drilled hole in the sink/counter until faucet is seated . -
Page 5: Under Sink Mounting
STEP 3 Start Up Instructions Drinking Water Module Mounting Step A– Turn on the incoming cold water at the angle stop valve . Turn the knob on the Adapt-A-Valve™ by turning coun- Step A – Determine best location for terclockwise . Check the system for leaks and tighten any the Drinking Water system to fittings as necessary . -
Page 6: Filter Change
PWCB10LCV 6 Months 1-micron carbon block filter same, but only filters by Watts are manufactured to fit your LCV filter note: Water conditions may require more frequent cartridge replacement unit in order to ensure proper reduction of water contaminants . -
Page 7: Parts Listing
Parts List STANDARD FAUCET 1/4” BLUE TUBE KITCHEN SINK 1/4” GREEN TUBE FEED WATER ADAPT-A-VALVE MAIN WATER SUPPLY SHUT-OFF VALVE SEDIMENT CARBON FILTER BLOCK IteM DescrIPtIon 7300068 ADAPT-A-VALVE™ 7300031 ELBOW - 1/4" C X 1/4" M 7300081 FILTER HOUSING - LID - 1/4" PORTS 7300044 FILTER HOUSING - BOWL - 10"... -
Page 8: Limited Warranty
Warranty: Certain Watts Pure Water products come with a limited warranty from Watts Regulator Co. Other products may have no warranty or are covered by the original manufacturer’s warranty only. For specific product warranty information, please visit www.watts.com or the published literature that comes with your product. Any remedies stated in such warranties are exclusive and are the only remedies for breach of warranty.
