Installation, Operation
and Maintenance Manual

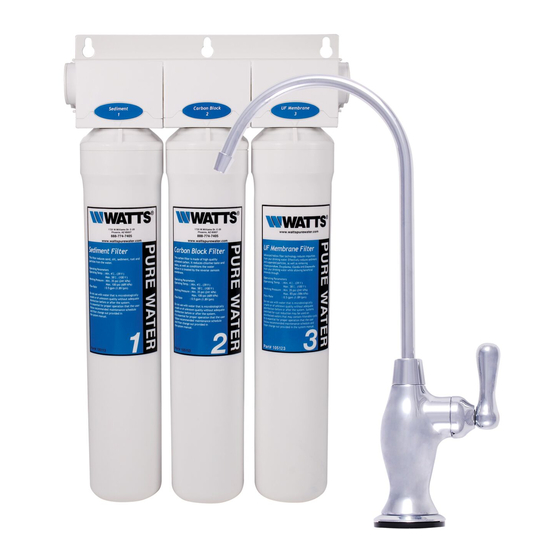

Ultra Filtration Membrane Water Filtration System
Model PWDWUFKC3
PURE WATER
Important
Please read the entire manual before proceeding with the
installation and startup. Your failure to follow any attached
instructions or operating parameters may lead to the product's
failure.
Save manual for future reference.
PWDWUFKC3

Table of Contents

Operational Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contents of PWDWUFKC3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools Recommended for Installation . . . . . . . . . . . . . . . . . . . . . . . . . 3
Drill a Hole for the Faucet in a Porcelain Sink . . . . . . . . . . . . . . . . . . . 3
Faucet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adapt-A-Valve™ Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Green Tube Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
UF Drinking System Module Mounting . . . . . . . . . . . . . . . . . . . . . . . 6
Blue Tube Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System Start up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6-Month System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Annual Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts List / Unit Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Do not use with water that is microbiologically unsafe or
Note:
of unknown quality without adequate disinfection before or after
the system .
IOM-WQ-PWDWUFKC3
