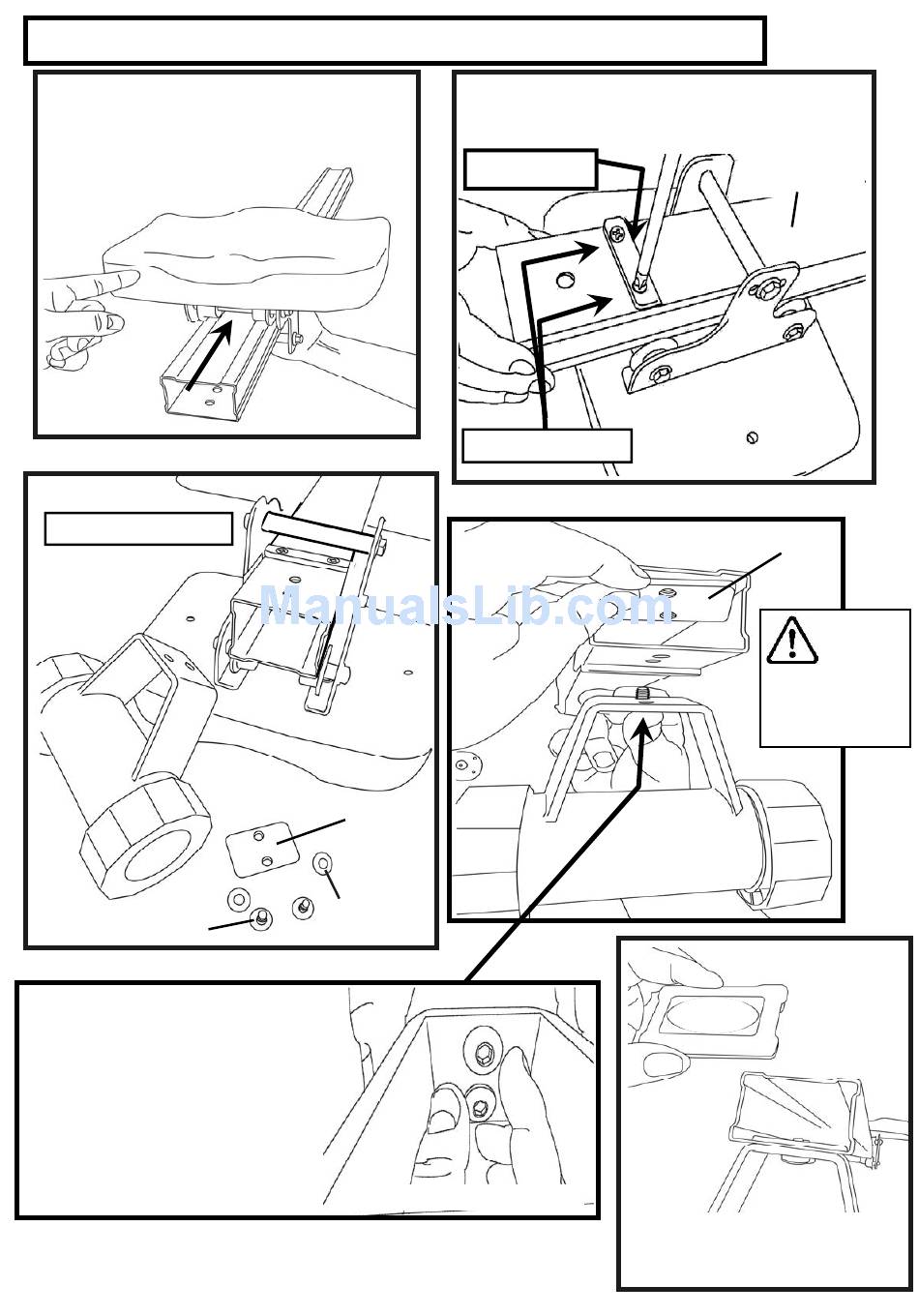

Installing the Seat and Rear Leg to Seat Rail
Install the Rower Seat onto the Seat Rail
as shown, with seat indentation facing
rearward.
Indentation
Rear Leg Assembly
Rear Leg
M8x15mm Bolt
Mount Rear Leg as shown,
aligning the M8x15 bolts and
washers up through the Rear
Leg, the bottom of the Seat Rail
and threading into the Internal
Seat Rail Bracket as illustrated.
4
Seat Rail
Rower Seat
Internal Seat Rail Bracket
M8 Washer
M8x15mm bolts/washers
Next, install Rear Bumpstop on underside of
Seat Rail using 2x M6x10mm bolts. Beveled
edge must face forward.
Beveled edge
M6x10mm Bolts
Internal Seat Rail Bracket
Rear Leg
Install Rubber End Cap
once Rear Leg assembly
is completed.
Underside of
Seat Rail
Rubber
Bumpstop
Rower Seat
Install front
M8x15mm bolt
and washer first
