Summary of Contents for SOMFY Impresario Chronis RTS

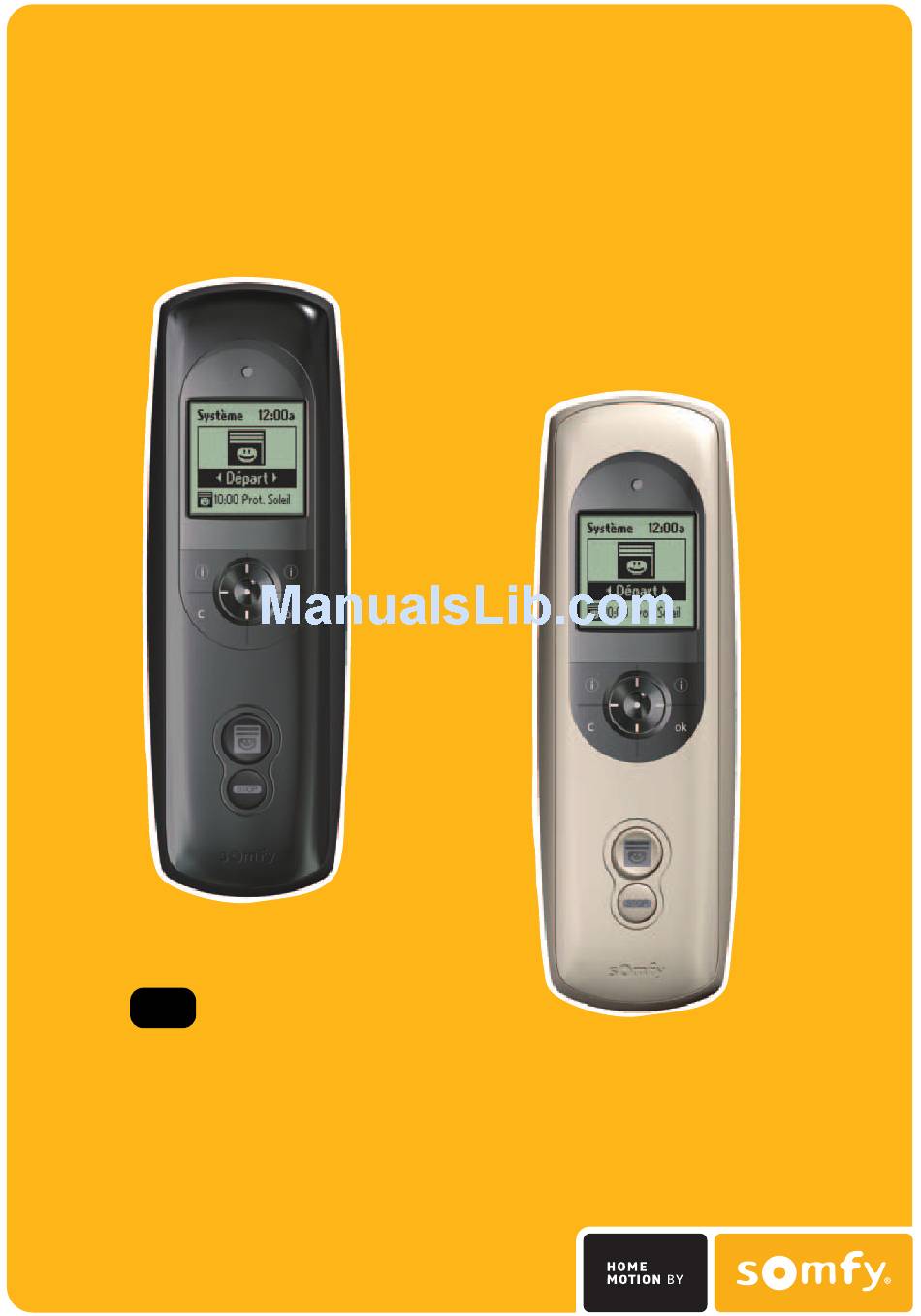

  • Page 1 Impresario Chronis RTS USER MANUAL 5015235A...
  • Page 2 ( N) ( N ) ( C ) (ok) 16 17 18 19 20 21...
  • Page 3 Cancel or back to a previous Mount compartment screen ( C ) Battery compartment cover Validation (ok) Help/Information on the screen dis- played ( N ) Description of the symbols used in Impresario Chronis RTS menus: Scenarios Solar sensors Days Settings Weeks Motors...
  • Page 4: Table Of Contents

    CONTENTS GENERAL PRESENTATION Programming weeks General characteristics Creating a week Modifying / Duplicating / Renaming / Deleting a week Presentation Modifying an existing week Technical specifications Duplicating an existing week Fitting/replacing batteries Renaming an existing week Deleting an existing week QUICK START GUIDE Introduction MEMORY AVAILABLE...
  • Page 5: General Presentation

    GENERAL PRESENTATION General characteristics Presentation Impresario Chronis RTS is a remote control that lets you drive up to 20 products compatible with Somfy (RTS) radio technology. The following product categories can be controlled by the Impresario Chronis RTS remote control: •...
  • Page 6: Quick Start Guide

    Introduction Scenarios for your home The Impresario Chronis RTS remote control lets you create your own scenarios to match your needs (amount of light, degree of heat, simulating a presence, etc.). Whether wall mounted in automatic mode or hand held in manual mode, your Impresario Chronis RTS remote control will drive your products to reproduce the scenarios recorded at the right time.
  • Page 7: Daily Programming (Typical Days)

    A preset typical week is available as soon as you set your system into service: “Week-sy” (described in Table 2 in the “Programming” chapter). Note: The preset programs in the Impresario Chronis RTS remote control automatically integrate each new motor paired with the remote control. These programs can be modified and deleted.
  • Page 8: Operating Modes

    24 hours) is indicated at the bottom of the screen. You can display the full make up of the current day by pressing (i). To return to manual mode, take the Impresario Chronis RTS remote control off its wall mount.
  • Page 9: Moving Through The Menus

    Press ( C ) as many times as necessary to return to the main screen. As a rule, (i) lets you choose the element that the cursor is pointing to and (ok) confirms an action. The Impresario Chronis RTS menu and submenu layout looks like this:...
  • Page 10: Programming

    Prior conditions that must be met before setting into service The Impresario Chronis RTS remote control must be set into service after all of the motor drive systems are operational. The various motors must be individually set up and paired with a local control unit.
  • Page 11: Renaming A Motor

    PROGRAMMING Renaming a motor Motor name” ( s ) menu, use the (o ) keys to select Motor From the “System > > the motor to rename and confirm with (i) or (ok). Name mot. • To check which motor corresponds to the selected motor name, press (i): every time you press (i) the motor successively receives the following orders: up / stop / down / up / stop, etc.
  • Page 12: Programming Scenarios

    PROGRAMMING SCENARIOS To make programming easier, you can use or copy the table below to prepare your scenarios. ( a ) Programming scenarios Table 1: Creating scenarios Preset scenarios Your scenarios Lists of motors c : Up order a : Down order stored in e : Favourite position order --- : No order...
  • Page 13: Creating Your Own Scenarios

    PROGRAMMING SCENARIOS Creating your own scenarios Creating a scenario Scenarios are programmed from the “System > Scenarios” ( a ) menu. Creating a scenario Select “---New---” using the (o ) keys and confirm with (i) or (ok). You can name your new scenario by entering a name in full (Enter name) or by selecting one from a preset list using (Choose name).
  • Page 14: Modifying /Duplicating / Renaming / Deleting A Scenario

    PROGRAMMING SCENARIOS Modifying /Duplicating / Renaming / Deleting a scenario You can modify, duplicate, rename or delete any existing scenario. From the “System > Scenarios” ( a ) menu, select the required scenario using the (o ) keys and validate by pressing (i) or (ok).
  • Page 15: Programming The Clock

    PROGRAMMING THE CLOCK The clock built into the Impresario Chronis RTS remote control is used to assign times to the previously created scenarios so as to make up “Typical days”. These “Typical days” can in turn be used to make up “Typical weeks”.
  • Page 16: Programming Days And Weeks

    PROGRAMMING THE CLOCK To simplify programming, you can use or copy the table below to prepare your “Typical days” and “Typical weeks”. Programming days and weeks Table 2: Programming the clock Days Weeks Name Function Name Function Work-sy 7 h 30 : Open-sy Week-sy 1 : Work-sy V : Close-sy...
  • Page 17: Programming Days

    PROGRAMMING THE CLOCK Days are programmed from the “System > Days” ( c ) menu. Programming days Creating a day Select “New” with the (o ) keys and confirm with (i) or (ok). • To create a new day faster, you can duplicate and modify a previously created day.
  • Page 18 The original setting can be modified from the “System > Settings > Twilight mode” (g) menu. Refer to “Settings”. The Impresario Chronis RTS remote control also lets you set day programming to activate and deactivate the solar sensors (refer to “Programming solar sensors”).
  • Page 19: Previewing Day Programming

    PROGRAMMING THE CLOCK Previewing day programming Select “Preview” and press (i) or (ok) to preview the settings programmed for a day. Preview provides a complete vision of the day: scenarios and solar sensors, where programmed. Modifying / Duplicating / Renaming / Deleting a day You can modify, duplicate, rename or delete any existing day.
  • Page 20: Programming Weeks

    PROGRAMMING THE CLOCK ) Programming weeks Creating a week Weeks are programmed from the “System > Weeks” ( e ) menu. Select “New” using the (o ) keys and confirm with (i) or (ok). You can name your new week by entering its name or selecting a name from a preset list of names.
  • Page 21: Modifying / Duplicating / Renaming / Deleting A Week

    Select “Delete” and press (i) or (ok). Confirm by pressing (ok) or cancel the deletion by pressing ( C ). MEMORY AVAILABLE The Impresario Chronis RTS remote control lets you store: • 20 motors • 16 scenarios • 6 days •...
  • Page 22: Programming Solar Sensors

    Among other functions, solar sensors make it possible to keep the indoor temperature down in summer and to protect furniture from harsh sunlight. The Impresario Chronis RTS remote control makes it possible to activate or deactivate all solar sensors manually or automatically using the clock.
  • Page 23: Settings

    Select the chosen option with (i) and confirm with (ok). Reset Resetting the Impresario Chronis RTS remote control returns it to the original factory set up. All of the scenario, day and week settings are lost. All of the products paired with the Impresario Chronis RTS remote control are retained after reset.
  • Page 24: Installation

    Prior conditions that must be met before setting into service The Impresario Chronis RTS remote control must be set into service after all of the motor drive systems are operational. The various motors must be individually set up and paired with a local control unit.
  • Page 25: Pairing And Naming Motors

    INSTALLATION Pairing and naming motors The “System > Motors > Pairing” ( s ) menu lets you add or delete motors from the Impresario Chronis RTS remote control memory. Adding a motor Select “Add motors” and confirm with (i) or (ok).
  • Page 26: Deleting A Motor

    Local Control Options 2- Press the (Prog ) key on the Impresario Chronis RTS remote control for 0.5 seconds. The corresponding product is again activated (a brief movement or blinking) confirming the end of the procedure.
  • Page 27: Radio Frames

    5 - Finish with (ok) or start again if the procedure failed. Radio frames To optimise battery service life, the Impresario Chronis RTS remote control is configured as standard to work with an installation comprising up to 12 products. This setting can be modified for installations comprising more than 12 products (up to a maximum of 20).
  • Page 28: Attaching The Wall Mount

    Choose an accessible location where it is easy to see and use. As the Impresario Chronis RTS remote control is intended to drive all of the automation systems covering the ope- ning and closing systems in a home, the wall mount must be installed at a location that is within radio range of all of the products to control.
  • Page 29: Index

    INDEX Heading pages Heading pages AUTOMATIC MODE TWILIGHT AUTOMATIC TIME CHANGES TYPICAL DAY Definition Preset scenarios 4, 13 BATTERIES Creating Modifying Duplicating BROWSING Renaming Deleting 20, 25 CONTACT 20, 21 DATE AND TIME TYPICAL WEEK Définition Preset scenarios 4, 13 3, 7, 10, 21 FAVOURITE POSITION Creating...
  • Page 30: Notes

    NOTES...
  • Page 31 India : SOMFY INDIA PVT Ltd Slovaquia : (43) 662 62 53 08 (91) 11 51 65 91 76 cf. Czech Republic - SOMFY Spol s.r.o. (420) 296 372 486-7 Belgium : SOMFY BELUX Italy : SOMFY ITALIA s.r.l (32) 2 712 07 70...
  • Page 32 SOMFY SAS Capital 20 000 000 euros RCS Bonneville 303.970.230 - 12 -2006...
