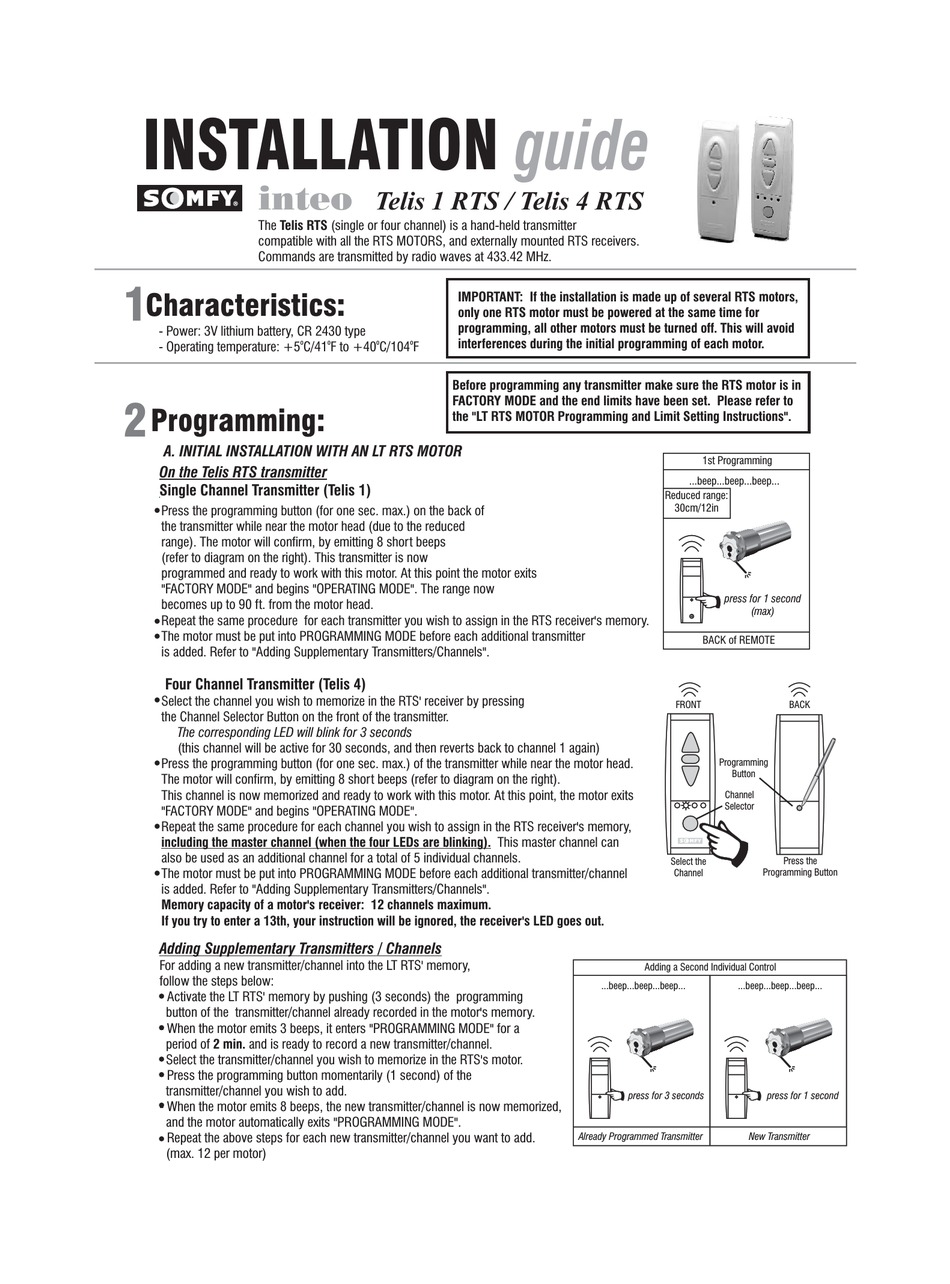

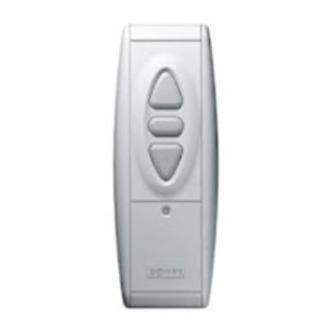

SOMFY Inteo Telis 1 RTS Installation Manual

INSTALLATION
inteo
The Telis RTS
compatible with all the RTS MOTORS, and externally mounted RTS receivers.
Commands are transmitted by radio waves at 433.42 MHz.
1

Characteristics:

- Power: 3V lithium battery, CR 2430 type
o
- Operating temperature: +5 C/41 F to +40 C/104 F
2

Programming:

A. INITIAL INSTALLATION WITH AN LT RTS MOTOR
On the Telis RTS transmitter
Single Channel Transmitter (Telis 1)
Press the programming button (for one sec. max.) on the back of
the transmitter while near the motor head (due to the reduced
range). The motor will confirm, by emitting 8 short beeps
(refer to diagram on the right). This transmitter is now
programmed and ready to work with this motor. At this point the motor exits
"FACTORY MODE" and begins "OPERATING MODE". The range now
becomes up to 90 ft. from the motor head.
Repeat the same procedure for each transmitter you wish to assign in the RTS receiver's memory.
The motor must be put into PROGRAMMING MODE before each additional transmitter
is added. Refer to "Adding Supplementary Transmitters/Channels".
Four Channel Transmitter (Telis 4)
Select the channel you wish to memorize in the RTS' receiver by pressing
the Channel Selector Button on the front of the transmitter.
The corresponding LED will blink for 3 seconds
(this channel will be active for 30 seconds, and then reverts back to channel 1 again)
Press the programming button (for one sec. max.) of the transmitter while near the motor head.
The motor will confirm, by emitting 8 short beeps (refer to diagram on the right).
This channel is now memorized and ready to work with this motor. At this point, the motor exits
"FACTORY MODE" and begins "OPERATING MODE".
Repeat the same procedure for each channel you wish to assign in the RTS receiver's memory,
including the master channel (when the four LEDs are blinking).
also be used as an additional channel for a total of 5 individual channels.
The motor must be put into PROGRAMMING MODE before each additional transmitter/channel
is added. Refer to "Adding Supplementary Transmitters/Channels".
Memory capacity of a motor's receiver: 12 channels maximum.
If you try to enter a 13th, your instruction will be ignored, the receiver's LED goes out.

Adding Supplementary Transmitters / Channels

For adding a new transmitter/channel into the LT RTS' memory,
follow the steps below:
- Activate the LT RTS' memory by pushing (3 seconds) the programming
button of the transmitter/channel already recorded in the motor's memory.
- When the motor emits 3 beeps, it enters "PROGRAMMING MODE" for a
period of 2 min. and is ready to record a new transmitter/channel.
Select the transmitter/channel you wish to memorize in the RTS's motor.
- Press the programming button momentarily (1 second) of the
transmitter/channel you wish to add.
- When the motor emits 8 beeps, the new transmitter/channel is now memorized,
and the motor automatically exits "PROGRAMMING MODE".
- Repeat the above steps for each new transmitter/channel you want to add.
(max. 12 per motor)
Telis 1 RTS / Telis 4 RTS
(single or four channel) is a hand-held transmitter
IMPORTANT: If the installation is made up of several RTS motors,
only one RTS motor must be powered at the same time for
programming, all other motors must be turned off. This will avoid
interferences during the initial programming of each motor.
o o o
Before programming any transmitter make sure the RTS motor is in
FACTORY MODE and the end limits have been set. Please refer to
the "LT RTS MOTOR Programming and Limit Setting Instructions".
This master channel can
guide
...beep...beep...beep...
Reduced range:
30cm/12in
FRONT
Select the
Channel
Adding a Second Individual Control
...beep...beep...beep...
press for 3 seconds
Already Programmed Transmitter
1st Programming
press for 1 second
(max)
BACK of REMOTE
BACK
Programming
Button
Channel
Selector
Press the
Programming Button
...beep...beep...beep...
press for 1 second
New Transmitter
