Telis 4 RTS Contents 1. Brief introduction to the Telis 4 RTS remote control 1.1 What is the Telis 4 RTS for? 1.2 A few definitions 2. Safety - Important information 2.1 Installation and commissioning 2.2 Operating 2.3 Environment 3. Content of the kit and tools required 3.1 List of parts...
This is made possible by the Telis 4 RTS using a 5 channel radio system, each channel being identified by the indicator lights. The Telis 4 RTS also makes it possible to control several products at once.
Avoid moving the product if ice has formed in it, unless the motor is fitted with anti-freeze protection. Do not leave the Telis 4 RTS behind a window in full sunlight: the Telis 4 cannot withstand temperatures greater than 60°C.
3. Content of the kit and tools required 3.1 List of parts Before starting installation and commissioning of the Telis 4 RTS, check that all parts listed in the table below are present in the correct quantity (Q): Components...

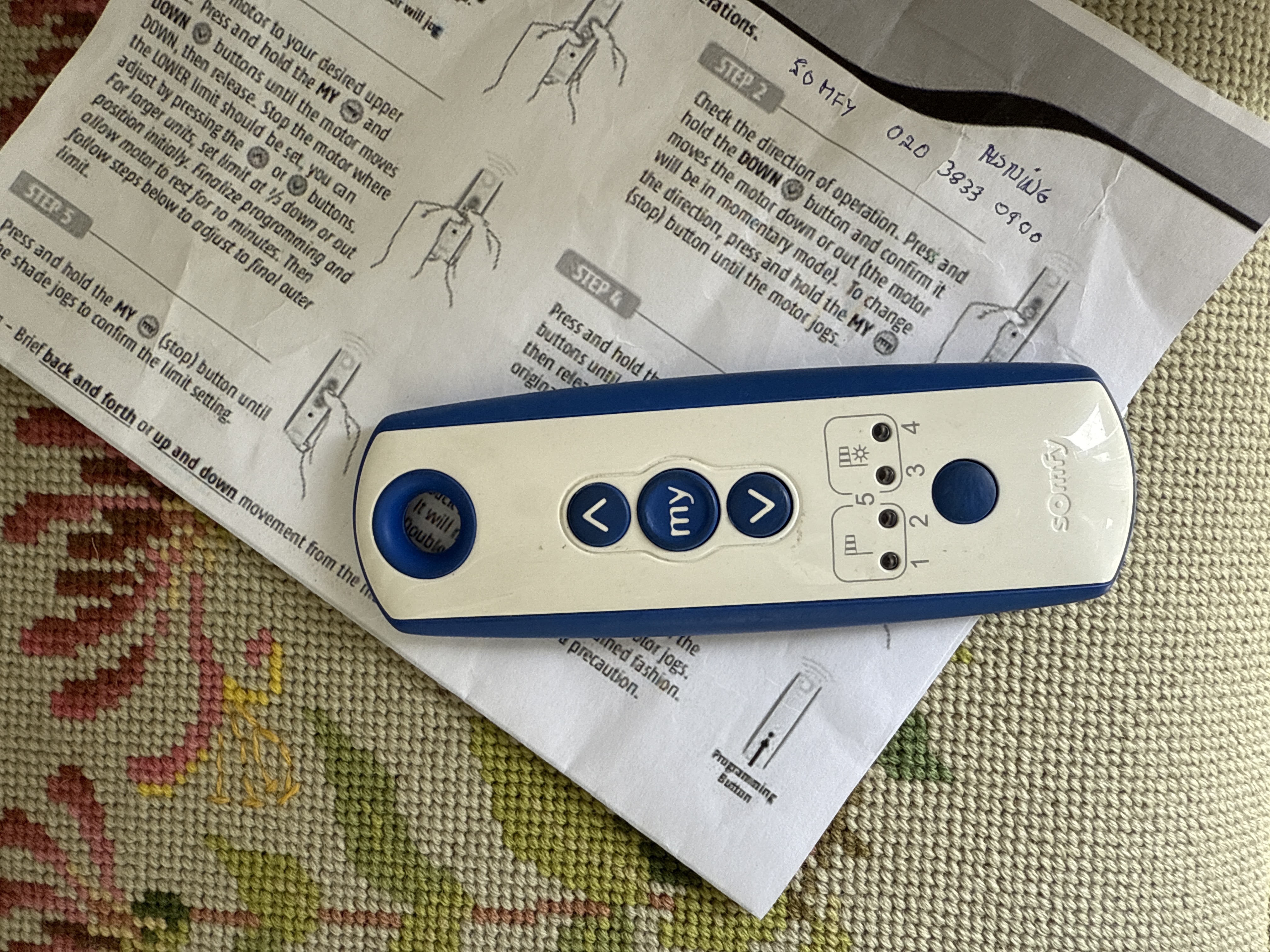

5. How does the Telis 4 RTS operate? 5.1 Channels and indicator lights 5.1.1 Description The Telis 4 RTS allows independent or simultaneous control of different products. This functionality is possible thanks to a 5 channel system, identified by indicator lights: each channel corresponds to an individual remote control and is associated with one or several indicator lights.
Page 7
Press one of the three buttons, Up/ STOP/Down to control the operations. Note: the Telis 4 RTS will store the last channel activated. Press the Selection button (E), the indicator light of the last channel used will light up.
4 blinds independently but also on certain occasions all 4 blinds at the same time. In order to control these 4 blinds with the Telis 4 RTS, each blind must be allocated a channel and then all 4 blinds allocated to the fifth channel.
Page 9
Press the Selection button (E) to light up the first indicator light (channel 1). Briefly press the PROG button (F) located on the back of the Telis 4 RTS: The blind will perform a second ► brief movement to indicate the new Telis 4 RTS is programmed.
Page 10
Press the Selection button (E) to light up the third indicator light (channel 3). Briefly press the PROG button (F) located on the back of the Telis 4 RTS: The blind will perform a second ► brief movement to indicate the new Telis 4 RTS is programmed.
Page 11
Press the Selection button (E) to light up all 4 indicator lights (channel 5). Briefly press the PROG button (F) located at the rear of the Telis 4 RTS until the blind moves briefly a second time. Press the PROG button of the original Study blind control point until the Study blind moves briefly.
6.1 Identifying the original control point 6.1.1 Installation recommendations To add a Telis 4 RTS, use the control point linked to the product which controls only this product: pressing the Down or Up button only causes movement of the product to which the new Telis 4 RTS must be connected.
Page 14
Press the PROG button (F) on the new Telis 4 RTS briefly with the tip of a pencil: the product will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 RTS is stored.
Telis 4 RTS Press the PROG button (F) on the new Telis 4 RTS briefly with the tip of a pencil: the product will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 RTS is stored.
Page 17
Caution! If after removing the front cover, no PROG button is found, this means that the control point is not compatible: the Telis 4 RTS cannot be linked to the product. 6.3.2 Adding the Telis 4 RTS Switch the mains power supply back on or reconnect the battery to the motor.
Page 19
Press the PROG button (F) on the new Telis 4 RTS briefly with the tip of a pencil: the product will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 RTS is stored.
Press the PROG button (F) on the new Telis 4 RTS briefly with the tip of a pencil: the product will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 RTS is stored.
(5a) and the Telis Soliris RTS has two indicator lights (5b). If the original remote control has more than two indicator lights, refer to the section "Telis 4 RTS/Telis 4 Soliris RTS remote controls". Move close to the product to install the Telis 4 RTS.
Page 22
Telis 4 RTS Press the PROG button (F) on the new Telis 4 RTS briefly with the tip of a pencil: the product will make another brief movement (or emit a series of 8 beeps) to indicate that the new Telis 4 RTS is stored.
7.2 One lost or broken control point amongst others Find one of the control points linked to the product. Follow the steps described in the section "Adding the Telis 4 RTS" according to the control point model. Note: If, after having followed this operation, there is not a brief move- ment (or a series of beeps) from the product, contact the Somfy assis- tance service so they can provide guidance for the replacement.
Telis 4 RTS Screw the rear casing of the Telis 4 RTS back on. Press a button on the front panel: if one or all or the indicator lights come on, the battery replacement is correct. Caution: the Telis 4 RTS will store the last channel activated.
Page 28
Tel: +1 (0) 609 395 1300 Website: www.somfy.com/nam/index. cfm?language=en-us Somfy hereby declares that this product conforms to the essential requirements and other relevant provisions of Directive 1999/5/CE. A Declaration of Conformity is available at www.somfy.com/ce. For use in the European Union, the Swiss Confederation (Switzerland) and Norway.
