PHASE / INSERT

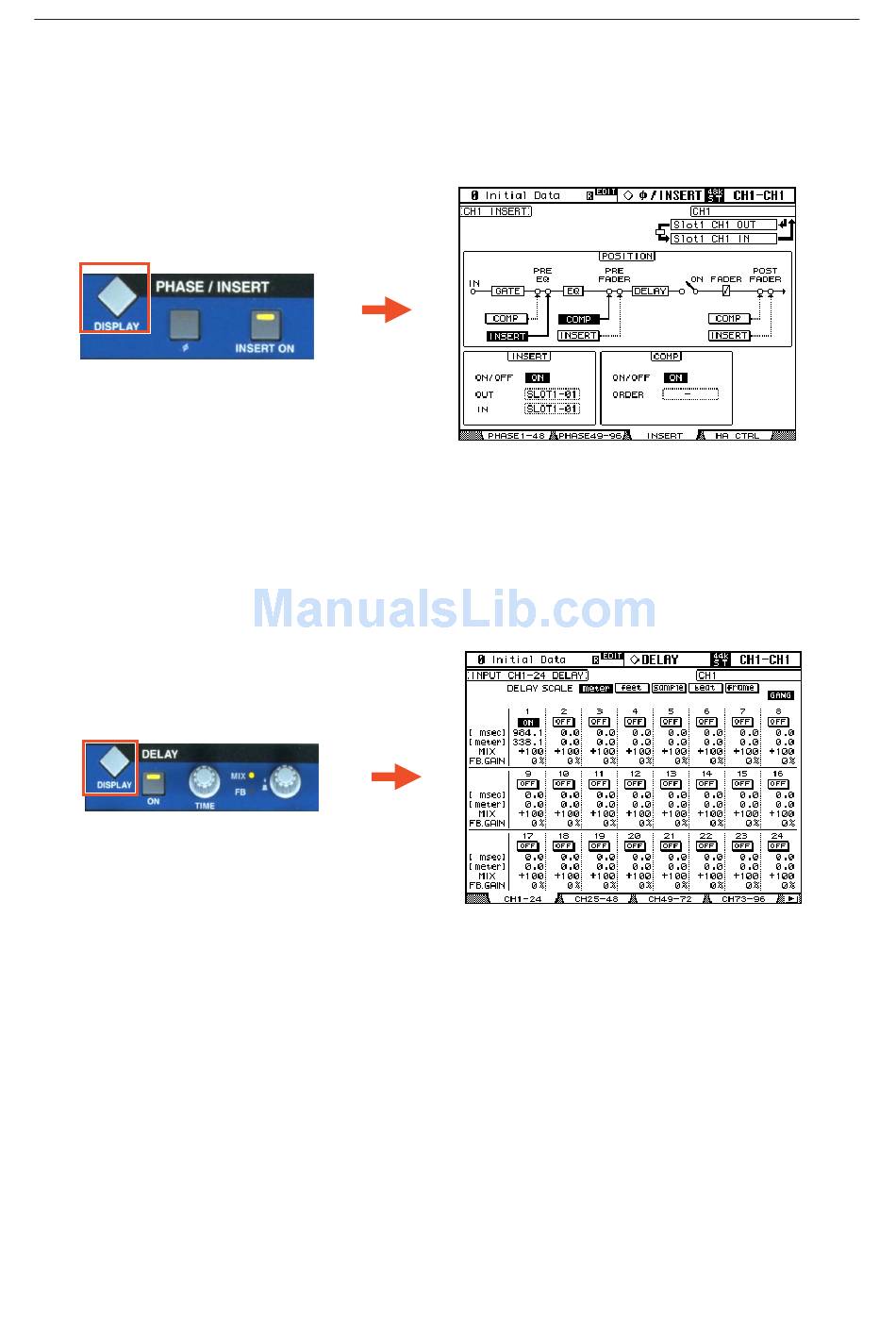

Press the PHASE/INSERT [DISPLAY] button to see Phase and Insert information on the LCD. Phase Reverse is only
available for input channels. Insert is available for all channels. Inserts need to be patched, choosing which rear-panel
connection (or internal Effect) to use for INSERT OUT and INSERT IN. The INSERT POSITION can also be changed
here.
✦

DELAY

Press the DELAY [DISPLAY] button to see Delay settings for each channel. All input and output channels have a Delay
function. The maximum possible Delay Time varies with sample rate. At 44.1KHz, the maximum possible Delay Time
is 984.1ms. Input channels have an FB.GAIN (Feedback Gain) and MIX parameter to create a simple Delay effect. The
DELAY SCALE can be changed to see the Delay Time in equivalent distance, number of samples, beats-per-minute or
number of Frames (linked to Time-Code Frame Rate).
