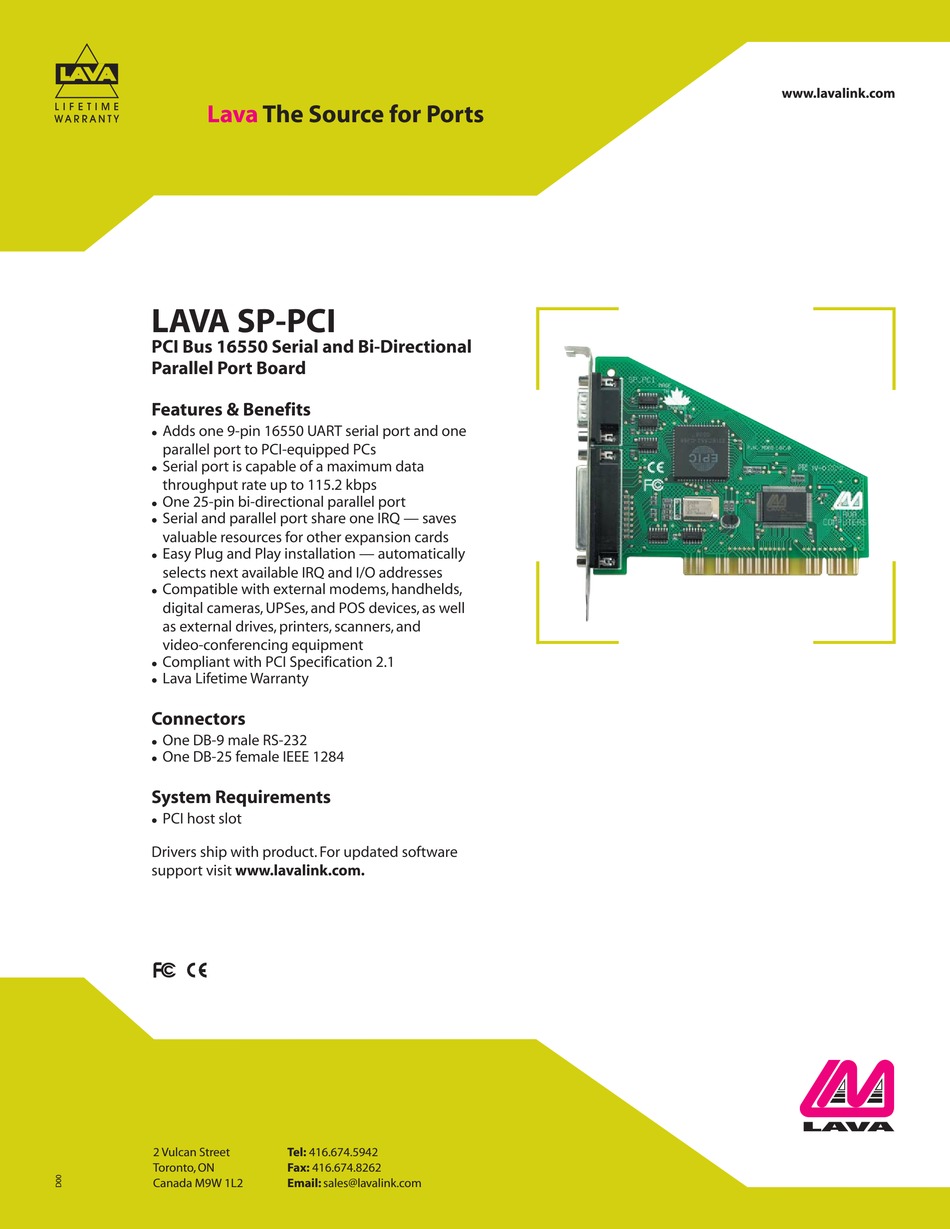

Lava SP-PCI Datasheet

Lava The Source for Ports
LAVA SP-PCI
PCI Bus 16550 Serial and Bi-Directional
Parallel Port Board
Features & Benefits
Adds one 9-pin 16550 UART serial port and one
l
parallel port to PCI-equipped PCs
Serial port is capable of a maximum data
l
throughput rate up to 115.2 kbps
One 25-pin bi-directional parallel port
l
Serial and parallel port share one IRQ — saves
l
valuable resources for other expansion cards
Easy Plug and Play installation — automatically
l
selects next available IRQ and I/O addresses
Compatible with external modems, handhelds,
l
digital cameras, UPSes, and POS devices, as well
as external drives, printers, scanners, and
video-conferencing equipment
Compliant with PCI Specification 2.1
l
Lava Lifetime Warranty
l
Connectors
One DB-9 male RS-232
l
One DB-25 female IEEE 1284
l

System Requirements

PCI host slot
l
Drivers ship with product. For updated software
support visit www.lavalink.com.
2 Vulcan Street
Tel: 416.674.5942
Toronto, ON Fax: 416.674.8262
Canada M9W 1L2 Email: sales@lavalink.com
www.lavalink.com
