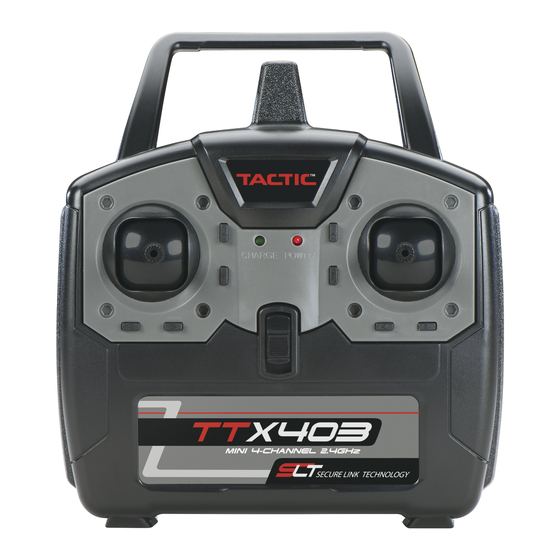

2.4GHz 4-Channel Micro Spread Spectrum Radio
The Tactic™ TTX403 Micro airplane radio system uses an advanced 2.4GHz spread
spectrum technology to prevent unwanted outside interference from interrupting
control of the model, ensuring error-free fl ying and eliminating the need to pull
frequency pins before every fl ight. Tactic 2.4GHz transmitters and receivers are not
compatible with other brand 2.4GHz equipment.
For safe operation and best results, it's strongly recommended to
read this manual in its entirety before use! Also read and understand
the instructions included with the model. Damage resulting from
misuse or modifi cation will void your warranty.
FEATURES
●
2.4GHz frequency hopping spread
spectrum technology
●
Tx can link to Tactic SLT 2.4GHz
receivers
●
Digital trims with power status LED
™
Instruction Manual
●
●
●
●
Built-in charger for 1S micro LiPo
batteries
V-Tail Mixing
Elevon Mixing
Channel Remapping
TACJ2403

Advertisement

Table of Contents
loading

Related Manuals for Tactic TTX403

Summary of Contents for Tactic TTX403

  • Page 1 2.4GHz 4-Channel Micro Spread Spectrum Radio Instruction Manual The Tactic™ TTX403 Micro airplane radio system uses an advanced 2.4GHz spread spectrum technology to prevent unwanted outside interference from interrupting control of the model, ensuring error-free fl ying and eliminating the need to pull frequency pins before every fl...
  • Page 2 TTX403 TRANSMITTER (Tx) The TTX403 4-Channel Micro airplane transmitter can be confi gured to operate as a 3-channel or 4-channel Tx. When confi gured for 4-channel operation the controls function like a normal Mode-2 transmitter with aileron + elevator on the right stick, and throttle + rudder on the left stick.
  • Page 3 Slide the battery door down, and insert the cells as shown. Make sure to note proper polarity for each cell. Close the battery door. Power LED and Low Battery Alarm The red power LED should light when the power switch is moved upwards to the on position.
  • Page 4 airplane to rise. Pushing the elevator stick forwards (away from you) will cause the nose of the airplane to drop. Throttle (Ch 3) Controls the speed (R.P.M.) at which the motor operates. Pulling the throttle stick back will cause the motor’s speed to decrease. Pushing the throttle stick forward will cause the motor’s speed to increase.
  • Page 5 Elevon & V-Tail Mixing Functions The TTX403 includes elevon and V-tail mixing functions, which can be turned on or off. “Elevon” control consists of a mixture between the elevator and aileron channels, and is useful for certain types of aircraft (such as a fl ying wing). “V-tail” control consists of a mixture between the elevator and rudder channels and is useful for aircraft which have a V-tail.
  • Page 6 ACCESSORIES section for suggested options. Built-In 1S LiPo Charger A 1S LiPo charger is built into the TTX403 transmitter itself. This charger is designed specifi cally for charging a micro 1S 3.7V LiPo cell which has a micro connector. Charge current is rated at 250mAh, with a maximum charge voltage of 4.20V.

  • Page 7: Link The Receiver To The Transmitter

    IMPORTANT WARNINGS REGARDING LIPO BATTERY USE NEVER ATTEMPT TO CARE FOR LITHIUM-POLYMER (LiPo) CELLS IN THE SAME WAY AS OTHER BATTERY TYPES! LiPo cells are much more sensitive and volatile than NiCd or NiMH batteries. Misuse and overcharge can quickly result in LiPo cells getting hot and/or swelling, which could lead to VIOLENT EXPLOSION AND/OR FIRE and serious personal injury and property damage.

  • Page 8: System Check And Operation

    SYSTEM CHECK AND OPERATION WARNING! During all pre-fl ight preparations with the aircraft on the ground, make sure the throttle stick remains at the minimum position and do not stand the Tx upright on the ground. Carefully lay the Tx on its back on the ground to prevent it from falling over and possibly dislodging the throttle stick from the low position which would create a safety hazard.

  • Page 9: Flying The Aircraft

    FLYING THE AIRCRAFT 1. Once all setup procedures have been confi rmed, and power has been removed from the model and transmitter, re-attach the propeller to the model. IMPORTANT: Be careful to stay clear from moving propellers!! 2. Make sure the airplane’s power batteries are fully charged. 3.
  • Page 10 Tactic TR324 3-Channel Receiver TACL0625 Tactic TR625 6-Channel Receiver TACL0424 Tactic TR424 4-Channel Receiver TACL1424 Tactic TR1424 4-Channel Receiver with 2 Servos TACM0021 Tactic TSX21 Linear Servo Actuator FUTM4503 FPC10M Micro Servo/Battery Connector FUTM4504 AEC-29 Micro Y-Harness 75mm, 3 in.

  • Page 11: Important Warnings And Precautions

    TTX403 4-CHANNEL MICRO SPECIFICATIONS TTX403 4-Channel Transmitter Channels Frequencies 2.403 – 2.480GHz Modulation FHSS spread spectrum Input power Five “AA” alkaline, NiCd, or NiMH cells (4.0 - 8.0V, not included) < 100 mW Rated output power Power indicators Red LED, with 4.5V low battery indicator...

  • Page 12: Troubleshooting

    ● ALWAYS make sure that all transmitter stick movements operate all servos properly in the model. Check the proper operation of control surfaces before and after starting the motor. ● Do not store your radio equipment in extremely hot or cold locations, in direct sunlight, or in locations with high humidity.

  • Page 13: Fcc Statement

    Charge Does Not Stop After 45 Minutes Internal problem might exist. Disconnect battery IMMEDIATELY and contact Hobby Services. Battery Voltage Low After Charge Is Completed Battery might be defective and requires replacement. Backup safety timer might have expired before full charge was reached – disconnect, then reconnect the battery to complete the charge process.

  • Page 14: Ce Compliance Information For The European Union

    Declaration of Conformity: Product: Tactic TTX403 2.4GHz 4-Channel Micro Tx Item number: TACJ2403 Equipment class: 1 Tactic TTX403 transmitter: The objects of the declaration described here are in conformity with the requirements of the specifi...
  • Page 15 Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes.
  • Page 16 ™ ® © 2013 Hobbico, Inc. Made in China TACJ2403...
