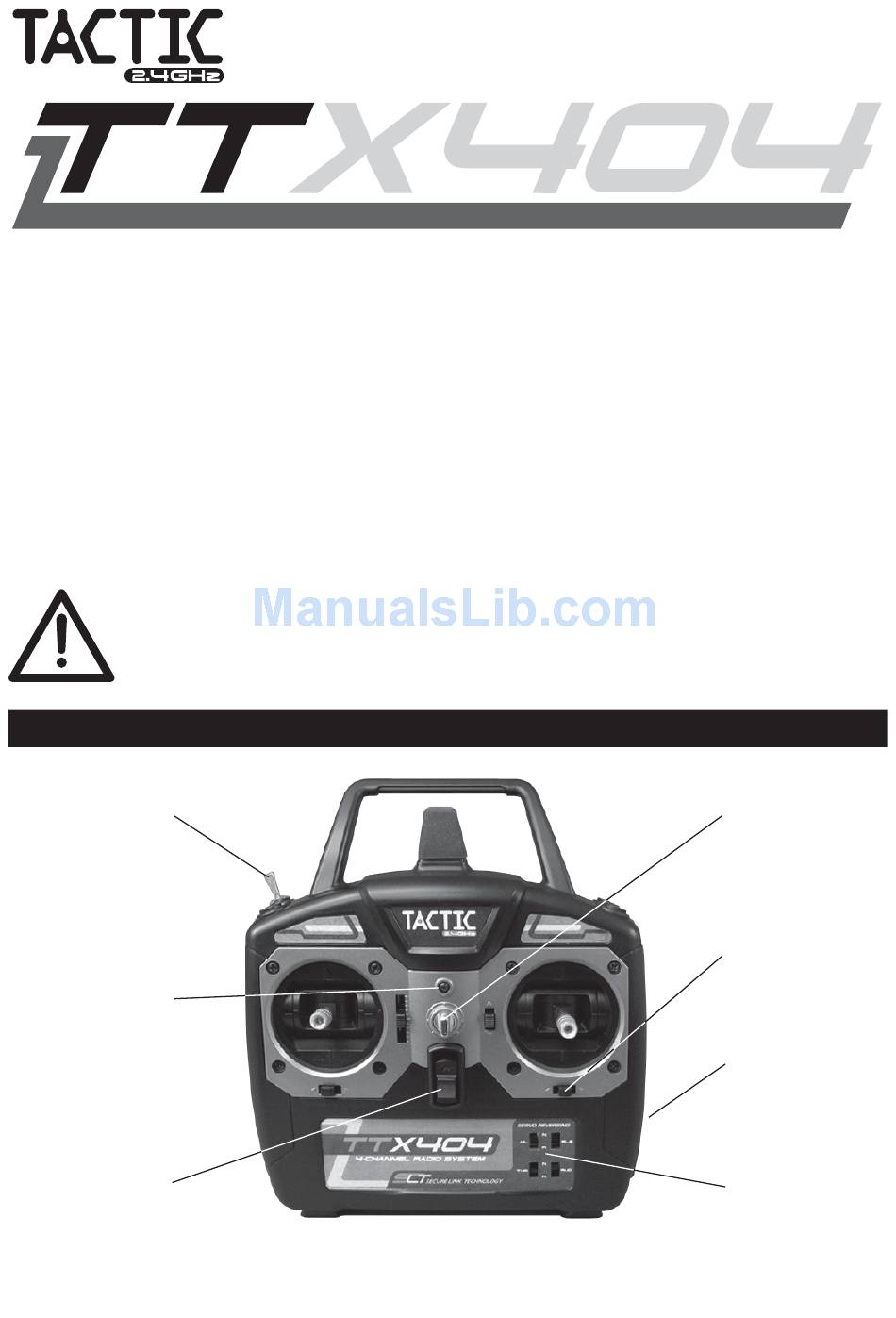

2.4GHz 4-Channel Spread Spectrum Radio

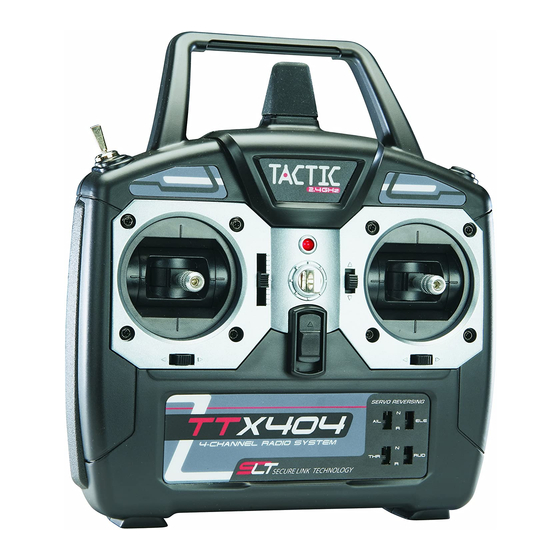

The Tactic TTX404 airplane radio system uses an advanced 2.4GHz spread
spectrum technology to prevent unwanted outside interference from interrupting
control of the model, ensuring error-free fl ying and eliminating the need to pull
frequency pins before every fl ight. Tactic 2.4GHz transmitters and receivers are not
compatible with other brands of 2.4GHz equipment.
For safe operation and best results, it's strongly recommended to
read this manual in its entirety before use! Also read and understand
the instructions included with the model. Damage resulting from
misuse or modifi cation will void your warranty.
FEATURES
Trainer
Switch
LED Power
Indicator
Power
Switch
● 2.4GHz spread spectrum technology
● Includes tiny, lightweight Tactic 6-channel receiver
● Transmitter binds to multiple Tactic 2.4GHz receivers ● Power status LED & built-in charge jack
™
INSTRUCTION MANUAL
● Built-in failsafe & wireless trainer function
● Analog & digital trims with servo reversing
Neck Strap
Eyelet
Trim
Lever
Charge
Jack
Reversing
Switches
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tactic TTX404
Summary of Contents for Tactic TTX404
-
Page 1: Instruction Manual
● 2.4GHz spread spectrum technology ● Built-in failsafe & wireless trainer function ● Includes tiny, lightweight Tactic 6-channel receiver ● Analog & digital trims with servo reversing ● Transmitter binds to multiple Tactic 2.4GHz receivers ● Power status LED & built-in charge jack... -
Page 2: Power Switch, Led, And Low Battery Alarm
TTX404 TRANSMITTER ( Tx ) The TTX404 airplane transmitter is available in either a “Mode 2” confi guration with throttle on the left and elevator on the right, or “Mode 1” confi guration with throttle on the right and elevator on the left. Mode 2 radios are most commonly used in the U.S., whereas Mode 1 radios are popular in other countries. - Page 3 Tx should have adequate power for fl ight when the LED is on constantly. Anytime the LED begins to fl ash, accompanied by the sounding of an audible tone, the Tx battery voltage has dropped too low and operation of the model should NOT be attempted! WARNING! Never operate an R/C model with weak Tx batteries! Reduced operational range and/or possible loss of control of the...
-
Page 4: Reversing Switches
left. When using the rudder in conjunction with the ailerons, the airplane’s nose can point into a turn (instead of pointing up and “skidding” through the turn), allowing the airplane to perform tighter, more coordinated turns. TRIMS A “trim” lever is included for each of the main controls, located adjacent to the respective stick. - Page 5 WARNING!! Do NOT attempt to recharge alkaline batteries! The charge jack should ONLY be used if rechargeable cells are used in the transmitter. The TTX404 includes a built-in charge jack for convenient recharging of NiCd or ® NiMH batteries, and is compatible with charge leads designed for Futaba brand ®...
-
Page 6: Trainer Function
ELEVON & V-TAIL MIXING FUNCTIONS The TTX404 includes elevon and V-tail mixing functions, which can be turned on or off. “Elevon” control consists of a mixture between the elevator and aileron channels, and is useful for certain types of aircraft (such as a fl ying wing). “V-tail” control consists of a mixture between the elevator and rudder channels and is useful for aircraft which have a V-tail. - Page 7 1. With the Tx power switch off, move the right stick to the bottom-right corner, and the left stick to the bottom-left corner. 2. While holding the sticks in these positions, turn the Tx power switch ON. 3. The LED should fl ash, and if accompanied by two audible tones the V-tail mixing function will now be turned ON.
-
Page 8: Receiver (Rx)
Additional Tactic TR624 receivers can be purchased from your local retailer (part number TACL0624) to work with this TTX404 transmitter. -
Page 9: Electronic Speed Control (Esc)
A switch harness and 4-cell battery holder is included with the TTX404 radio system. Refer to the model’s instructions for the optimum location to mount the battery, Rx, and... -
Page 10: System Check And Operation
switch harness for optimum weight distribution in the model. Locate the switch well away from the propeller and the exhausts from a glow engine. Cut a hole in the side of the fuselage large enough to allow the switch’s lever to move freely and fully from end- to-end. - Page 11 its back on the ground to prevent it from falling over and possibly dislodging the throttle stick from the low position which would create a safety hazard. Make sure all devices are properly mounted inside the model, and all wiring connections are solid to prevent them from easily becoming dislodged during normal fl...
-
Page 12: Flying The Aircraft
2. Move the throttle stick to the desired throttle position for when the Rx goes to failsafe. 3. Press the “BIND” button on the Tactic receiver. 4. When the Rx binds successfully, the Rx will remember the throttle channel’s failsafe position. -
Page 13: Safety Guide
SAFETY GUIDE The Academy of Model Aeronautics (AMA) has established an Offi cial Safety Code. Model fl ying MUST be in accordance with this Code in order for AMA Liability Protection to apply. All questions relating to the AMA Safety Code, liability insurance program, and other offi... -
Page 14: Radio Control
7. I will not operate model aircraft with metal-blade propellers or with gaseous boosts (other than air), nor will I operate model aircraft with fuels containing tetranitromethane or hydrazine. 8. I will not operate model aircraft carrying pyrotechnic devices which explode or burn, or any device, which propels a projectile of any kind. -
Page 15: Free Flight
5. I will operate my model aircraft using only radio-control frequencies currently allowed by the Federal Communications Commission (FCC). Only individuals properly licensed by the FCC are authorized to operate equipment on Amateur Band frequencies. 6. I will not knowingly operate my model aircraft within three (3) miles of any preexisting fl... -
Page 16: Batteries And Chargers
AA Alkaline Batteries (4) SANP1100 Sanyo ® N-700AAC 1.2V AA NiCd Cell TACP1000 Tactic NiMH Conv. Kit – 8 “AA” NiMHs, 110V Charger ELECTRONIC SPEED CONTROLS GPMM1800 Silver Series SS-8 Brushless 8 Amp ESC GPMM1810 Silver Series SS-12 Brushless 12A ESC... -
Page 17: Specifications
Built-in non-removable Charge jack Built-in (Futaba ® compatible, for use with optional NiCd or NiMH cells) Trainer function Wireless (compatible with Tactic brand transmitters only) Optional mixes Elevon, V-Tail Tactic TR624 Receiver Channels Frequencies 2.403 – 2.480GHz Modulation FHSS spread spectrum Input power Four “AA”... -
Page 18: Important Warnings And Precautions
IMPORTANT WARNINGS AND PRECAUTIONS ● NEVER allow water or moisture to make contact with the electronic components inside the transmitter, receiver, servos, switch harness, etc.! This could lead to failure or improper functionality of components and poor control of aircraft which could pose a safety hazard. ●... -
Page 19: Fcc Statement
Contact Hobby Services for further details. WIRELESS TRAINING FUNCTION NOT BINDING Check to see that another Tactic 2.4GHz system is not on in your area. The teacher’s and student’s transmitters were not powered in the proper sequence. Carefully follow the instructions on page 3 for proper binding and operation for training. - Page 20 Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes.
