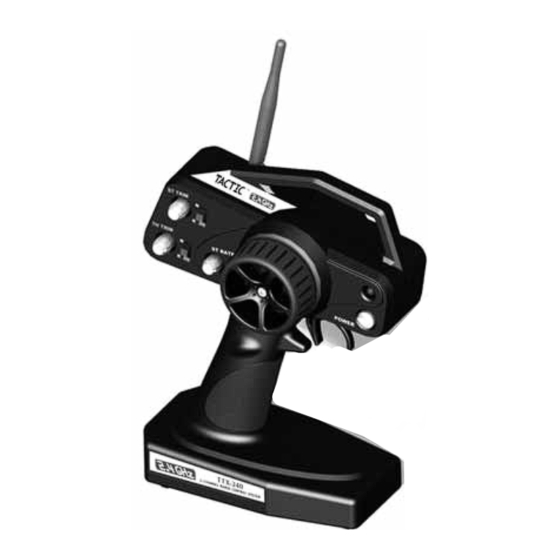

Tactic TTX240 Instruction Manual

2.4ghz radio control system
Hide thumbs Also See for TTX240:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for making the Tactic TTX240 2.4GHz system
your choice for radio control! This system uses modern
2.4GHz Spread Spectrum technology – an innovation that
allows for automatic channel selection and interference-
free control of R/C models.
FEATURES
● 2.4GHz Spread Spectrum Technology
● Transmitter can bind to multiple receivers
● Tiny, lightweight receiver with internal antenna
● Built-in fail-safe
● Steering and throttle trim dials
● Steering and throttle servo reversing
● Steering rate adjustment
● Power LED with low battery warning indication

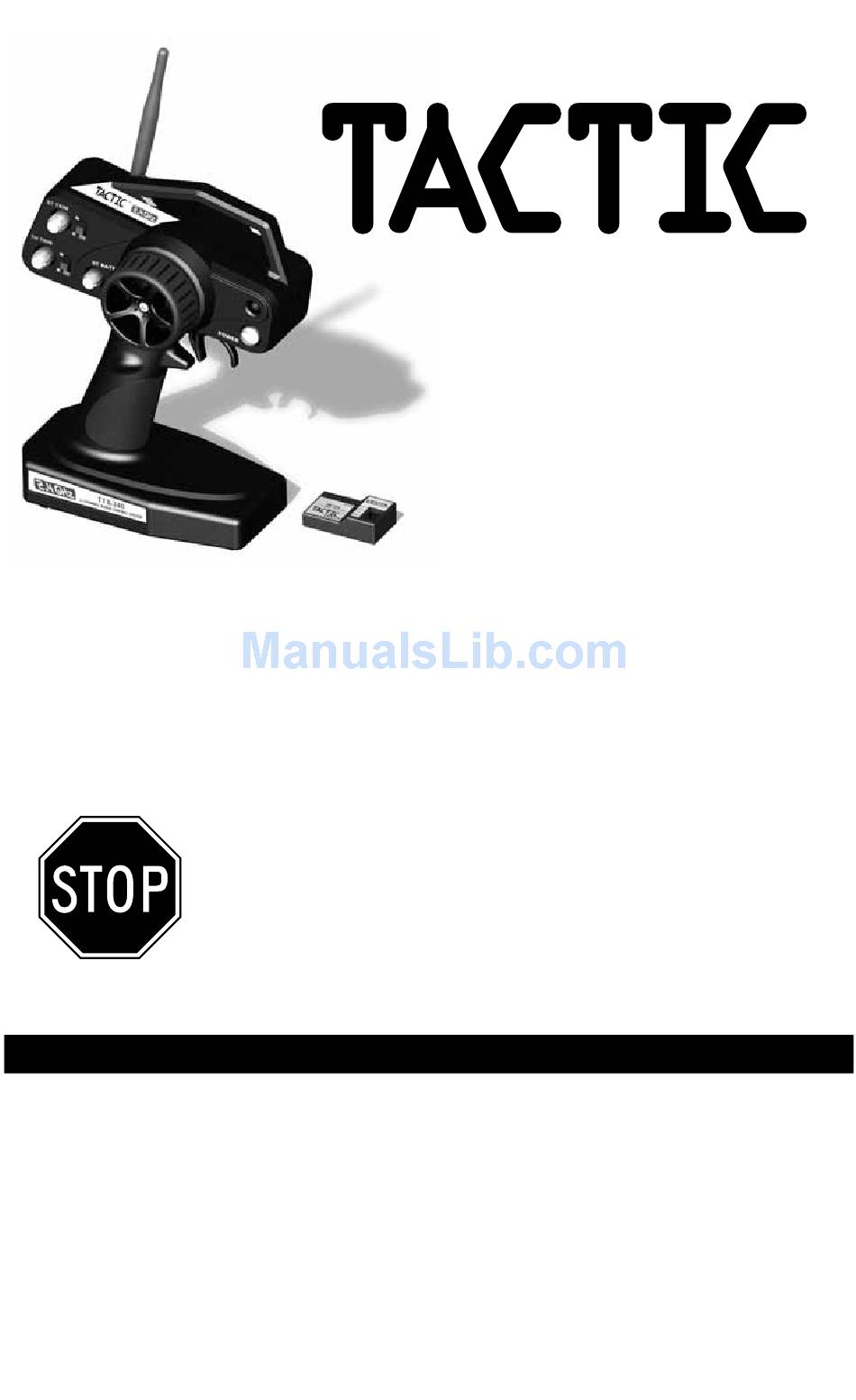

TTX240
2.4GHz Radio Control System
INSTRUCTION MANUAL
It is strongly recommended to completely
read this manual before use! Damage
resulting from misuse or modifi cation
will void your warranty.
™

Advertisement

Table of Contents
loading

Related Manuals for Tactic TTX240

Summary of Contents for Tactic TTX240

  • Page 1 TTX240 2.4GHz Radio Control System INSTRUCTION MANUAL Thank you for making the Tactic TTX240 2.4GHz system your choice for radio control! This system uses modern 2.4GHz Spread Spectrum technology – an innovation that allows for automatic channel selection and interference- free control of R/C models.
  • Page 2 See the SERVOS AND ACCESSORIES section at the end of this manual for optional rechargeable NiCd and NiMH batteries and chargers. Note the TTX240 transmitter does not include a charge jack for rechargeable cells. A separate AA cell charger will be necessary.

  • Page 3: Installation

    BIND THE RECEIVER TO THE TRANSMITTER For proper installation and operation of the 2.4GHz transmitter and receiver system, it is necessary to “bind” them together electronically. This ensures sole communication between the two and prevents other transmitters from being able to control the receiver. To bind the Tx and Rx: 1.

  • Page 4: System Check

    Switch / Battery: It may not be necessary to use the included switch harness and 4-cell battery holder if using an optional electronic speed control (ESC). Check the instructions with your ESC for further information. Otherwise, mount the included switch harness into the model as instructed in the model’s manual, and insert the switch harness’s proper mating plug into the receiver’s “BAT”...

  • Page 5: Servos And Accessories

    SERVOS AND ACCESSORIES Stock # Description TACL0324 Tactic RX324 2.4GHz Receiver only DTXC1900 Piranha 7.2V NiMH 2000mAh Stick w/Std Connector DTXC1901 Piranha 8.4V NiMH 2000mAh Stick w/Std Connector DTXC1930 Piranha 7.2V NiMH 2500mAh Stick w/Std Connector DTXC1960 Piranha 7.2V NiMH 3000mAh Stick w/Std Connector DTXC2020 Piranha 7.2V NiCd 1900mAh Stick w/Std Connector...

  • Page 6: Troubleshooting

    RECEIVER Channels: 2 Receiving freqs: 2.403 – 2.480GHz Modulation: spread spectrum Input power: four “AA” alkaline, NiCd or NiMH cells Dimensions: 1.77 x 0.98 x 0.5” (45 x 25 x 13mm) Weight: 0.25 oz (7g) TROUBLESHOOTING RANGE IS SHORT: Interference – check Rx installation and servo connections. Low Tx or Rx battery –...

  • Page 7: Warranty And Repair

    (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes. You will be required to provide proof of purchase (invoice or receipt).
  • Page 8 TTX240 2.4GHz Radio Control System...
