2.4GHz 4-Channel Spread Spectrum Radio

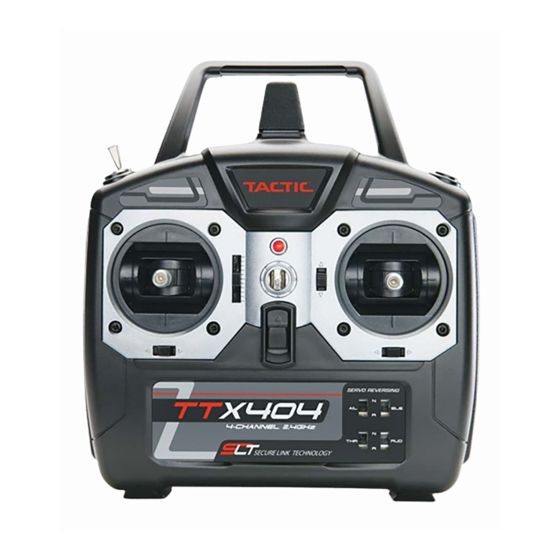

The Tactic TTX404 airplane radio system uses an advanced 2.4GHz spread
spectrum technology to prevent unwanted outside interference from interrupting
control of the model, ensuring error-free fl ying and eliminating the need to pull
frequency pins before every fl ight. Tactic 2.4GHz transmitters and receivers are not
compatible with other brands of 2.4GHz equipment.
For safe operation and best results, it's strongly recommended to
read this manual in its entirety before use! Also read and understand
the instructions included with the model. Damage resulting from
misuse or modifi cation will void your warranty.

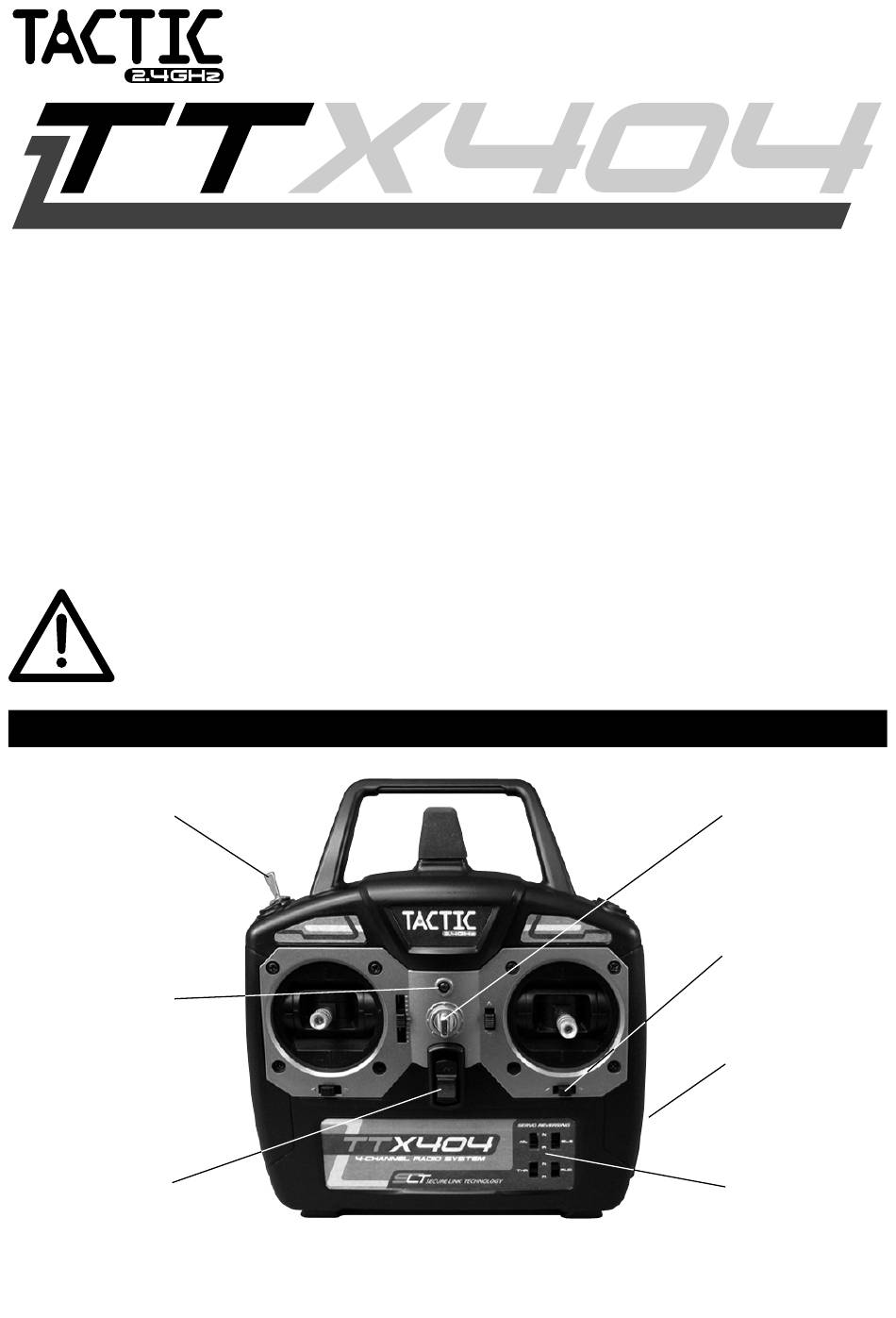

FEATURES
Trainer
Switch
LED Power
Indicator
Power
Switch
● 2.4GHz spread spectrum technology
● Includes tiny, lightweight Tactic 6-channel receiver
● Transmitter binds to multiple Tactic 2.4GHz receivers ● Power status LED & built-in charge jack
™
INSTRUCTION MANUAL
● Built-in failsafe & wireless trainer function
● Analog & digital trims with servo reversing
TACJ2404 v2.2
Neck Strap
Eyelet
Trim
Lever
Charge
Jack
Reversing
Switches
Advertisement
Table of Contents
Related Manuals for Tactic TACJ2404
Summary of Contents for Tactic TACJ2404
- Page 1 ● 2.4GHz spread spectrum technology ● Built-in failsafe & wireless trainer function ● Includes tiny, lightweight Tactic 6-channel receiver ● Analog & digital trims with servo reversing ● Transmitter binds to multiple Tactic 2.4GHz receivers ● Power status LED & built-in charge jack...
-
Page 2: Power Switch, Led, And Low Battery Alarm
TTX404 TRANSMITTER ( Tx ) The TTX404 airplane transmitter is available in either a “Mode 2” confi guration with throttle on the left and elevator on the right, or “Mode 1” confi guration with throttle on the right and elevator on the left. Mode 2 radios are most commonly used in the U.S., whereas Mode 1 radios are popular in other countries. - Page 3 Tx should have adequate power for fl ight when the LED is on constantly. Anytime the LED begins to fl ash, accompanied by the sounding of an audible tone, the Tx battery voltage has dropped too low and operation of the model should NOT be attempted! WARNING! Never operate an R/C model with weak Tx batteries! Reduced operational range and/or possible loss of control of the...
-
Page 4: Reversing Switches
left. When using the rudder in conjunction with the ailerons, the airplane’s nose can point into a turn (instead of pointing up and “skidding” through the turn), allowing the airplane to perform tighter, more coordinated turns. TRIMS A “trim” lever is included for each of the main controls, located adjacent to the respective stick. - Page 5 NiCd or NiMH batteries that are rated at 4.8V. Tactic’s optional TACP1000 rechargeable battery and wall charger kit includes eight “AA” size rechargeable NiMH cells and 110V AC wall charger, which is compatible with this Tx and can be found at local retailers.
-
Page 6: Trainer Function
TRAINER FUNCTION The TTX404 Tx includes a built-in wireless trainer function – no trainer cable required! This trainer system connects a teacher’s Tactic Tx to a student’s Tactic Tx by wireless connection. Tactic’s wireless trainer function is not compatible with trainer systems in any other brand radios. - Page 7 1. With the Tx power switch off, move the right stick to the bottom-right corner, and the left stick to the bottom-left corner. 2. While holding the sticks in these positions, turn the Tx power switch ON. 3. The LED should fl ash, and if accompanied by two audible tones the V-tail mixing function will now be turned ON.
-
Page 8: Receiver (Rx)
Additional Tactic TR624 receivers can be purchased from your local retailer (part number TACL0624) to work with this TTX404 transmitter. -
Page 9: Electronic Speed Control (Esc)
sticks in fl ight, it should be re-adjusted so as not to drain excessive current from the battery and thus shorten fl ight time. Throttle Rudder Elevator Aileron Servo Servo Servo Servo or ESC (Ch4) (Ch2) (Ch1) (Ch3) To Rx Battery Receiver Switch Harness To Charger... -
Page 10: Failsafe Function
One switch harness lead connects to the receiver’s “BAT” socket, another connects to the battery, and the third lead is for convenient recharging of the battery through the switch harness. Charging of the rechargeable battery through the switch harness can only be accomplished when the switch is in the OFF position. Use of “AA”... -
Page 11: System Check And Operation
IMPORTANT NOTE: Before manually resetting the failsafe, make sure the servo reversing switches are in the correct position for the application. 1. Apply power to the Tx and Rx. 2a. If using an ESC, do NOT arm the ESC. Do NOT attempt to adjust the throttle’s failsafe position if the ESC is armed. -
Page 12: Flying The Aircraft
a. Electric: confi rm that when the throttle stick is at maximum position the electronic speed control gives the appropriate indications (LED and/or audible indicators) for full forward fl ight. And, when the throttle stick is at minimum position the electronic speed control gives the appropriate indications for “off”... -
Page 13: Safety Guide
SAFETY GUIDE The Academy of Model Aeronautics (AMA) has established an Offi cial Safety Code. Model fl ying MUST be in accordance with this Code in order for AMA Liability Protection to apply. All questions relating to the AMA Safety Code, liability insurance program, and other offi... -
Page 14: Radio Control
8. I will not operate model aircraft carrying pyrotechnic devices which explode or burn, or any device, which propels a projectile of any kind. Exceptions include Free Flight fuses or devices that burn producing smoke and are securely attached to the model aircraft during fl ight. Rocket motors up to a G-series size may be used, provided they remain fi... -
Page 15: Free Flight
individual AMA members. Frequency-management agreements, including an interference test report if the agreement indicates no interference exists, will be signed by all parties and copies provided to AMA Headquarters. 7. With the exception of events fl own under offi cial AMA rules, excluding takeoff and landing, no powered model may be fl... -
Page 16: Batteries And Chargers
AA Alkaline Batteries (4) SANP1100 Sanyo ® N-700AAC 1.2V AA NiCd Cell TACP1000 Tactic NiMH Conv. Kit – 8 “AA” NiMHs, 110V Charger ELECTRONIC SPEED CONTROLS GPMM1800 Silver Series SS-8 Brushless 8 Amp ESC GPMM1810 Silver Series SS-12 Brushless 12A ESC... -
Page 17: Other Items Included
Tactic TR624 Receiver Channels Frequencies 2.403 – 2.480GHz Modulation FHSS spread spectrum Input power Four “AA” alkaline, NiCd or NiMH cells (4.0 – 6.0V, not included) Failsafe Programmable throttle, all other channels maintain last recognized positions 1.77 × 0.98 × 0.5" (45 × 25 × 13mm) -
Page 18: Troubleshooting
Contact Hobby Services for further details. WIRELESS TRAINING FUNCTION NOT BINDING Check to see that another Tactic 2.4GHz system is not on in your area. The teacher’s and student’s transmitters were not powered in the proper sequence. Carefully follow the instructions on page 3 for proper binding and operation for training. -
Page 19: Fcc Statement
Declaration of Conformity: Product: Tactic TTX404 2.4GHz 4-Channel Tx Rx Item number: TACJ2404 Equipment class: 1 Tactic TTX404 transmitter and Tactic TR624 receiver: The objects of the declaration described here are in conformity with the requirements of the specifi... -
Page 20: Ce Compliance Information For The European Union
Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes.
