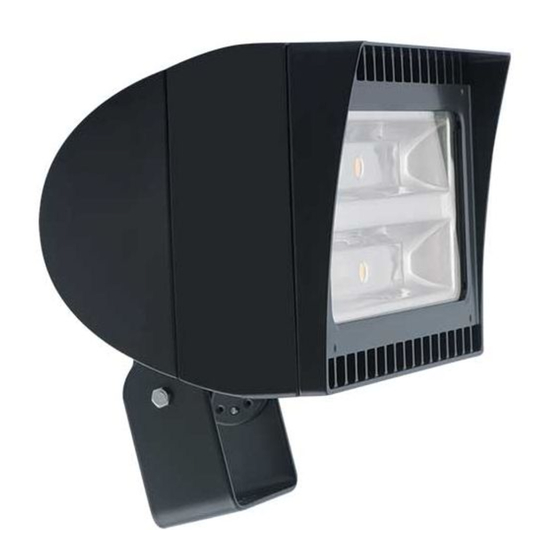

RAB Lighting FXLED78 Installation Instructions

FXLED78 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000, or email: marketing@rabweb.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable
parts inside.

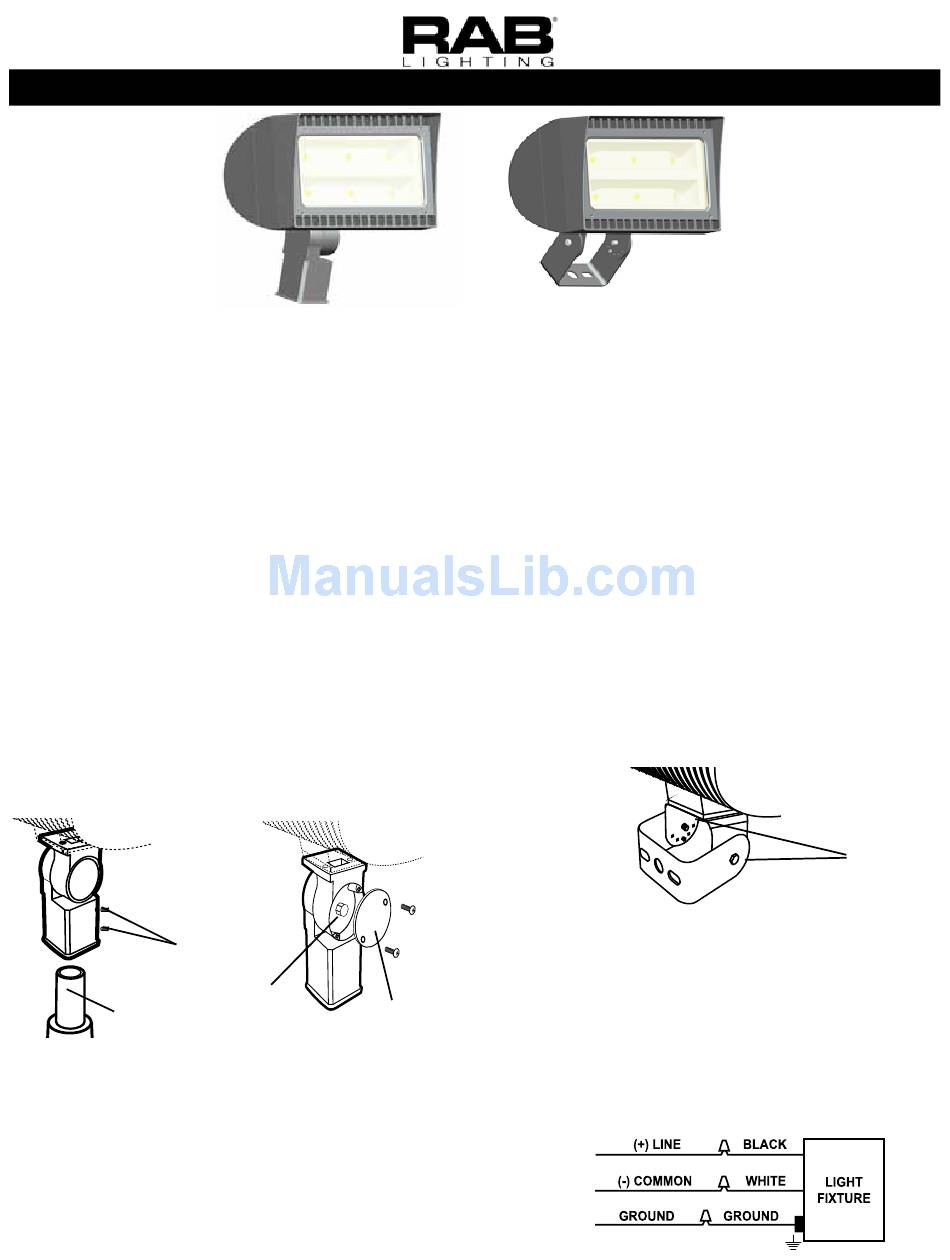

SLIPFITTER MOUNTING

1. The slipfitter mounting fits a 2 3 /8" O.D. Tenon.
Place the slipfitter over the Tenon and secure the
fixture with the 2 Set Screws on the side of the
slipfitter.
2. Remove 2 screws on side of Round Cover Plate.
Remove the Round Cover Plate and adjust the
angle of the fixture.
3. Loosen the Locking Bolt and swivel fixture to
desired angle.
4. Tighten the Locking Bolt and re-attach Round
Cover Plate.
Set
Screws
Tenon

TROUBLESHOOTING

1. Check that the line voltage at the fixture is correct.
Refer to wiring directions.
2. Is the fixture grounded properly?
3. Is the photocell, if used, functioning properly?
Locking
Round
Bolt
Cover
Plate

TRUNNION MOUNTING

CAUTION: UL and C-UL listed or CSA certified liquid
tight cord grip suitable for use with three conductor
type STW flexible cord shall be used for connection
to a wet location outlet box provided by others.
To adjust the angle of the fixture using the trunnion:
1. Loosen the Pivot Bolts & angle locking screw.
2. Adjust fixture to desired angle.
3. Tighten Pivot Bolts & angle locking screw.

WIRING

Universal voltage drivers permits operation at 120V to
277VAC, 50 or 60 Hz.
1. Connect the BLACK fixture lead to the
(+) LINE supply lead.
2. Connect the WHITE fixture lead to the
(-) COMMON supply lead.
3. Connect the bare copper Ground wire from fixture
to supply ground.
Pivot Bolts
