ENTRA 12 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

FIXTURE MOUNTING

To ensure weatherproof seal, apply weatherproof silicone
sealant around the edge of the Housing and/or Junction
Box. This is especially important with an uneven wall surface.
Silicone all plugs and unused conduit entries.

MOUNTING TO JUNCTION BOX

1. Loosen Door Screws and open the Door. Screws will
remain in place with Silicone Washers.
2. Loosen Reflector Screws and slide the Reflector down
from the Housing.
3. Knock out appropriate Slots when mounting to junction
box (not supplied) and secure to Junction box.
4. Feed supply wires through Junction Box. Check the
Gasket is fully sealed.
5. Make sure all gaskets are properly seated. Place the
Reflector and tighten the Reflector Screws. Close and
tighten the Door Screws. Silicone all Plugs and unused
conduit entries.

MOUNTING TO WALL

1. Loosen Door Screws and open the Door. Screws will
remain in place with Silicone Washers.
2. Loosen Reflector Screws and slide the Reflector down
from the Housing.
3. Knock out appropriate Slots when mounting to the wall
surface.
4. Secure Housing to a sturdy wall. Use appropriate
mounting hardware such as lag bolts and anchors with
washers suitable for the mounting surface. Check the
Gasket is fully sealed.
5. Make sure all gaskets are properly seated. Place the
Reflector and tighten the Reflector Screws. Close and
tighten the Door Screws. Silicone all Plugs and unused
conduit entries.
6. If outdoor surface is irregular, use caulk to seal any gaps
around the Housing.

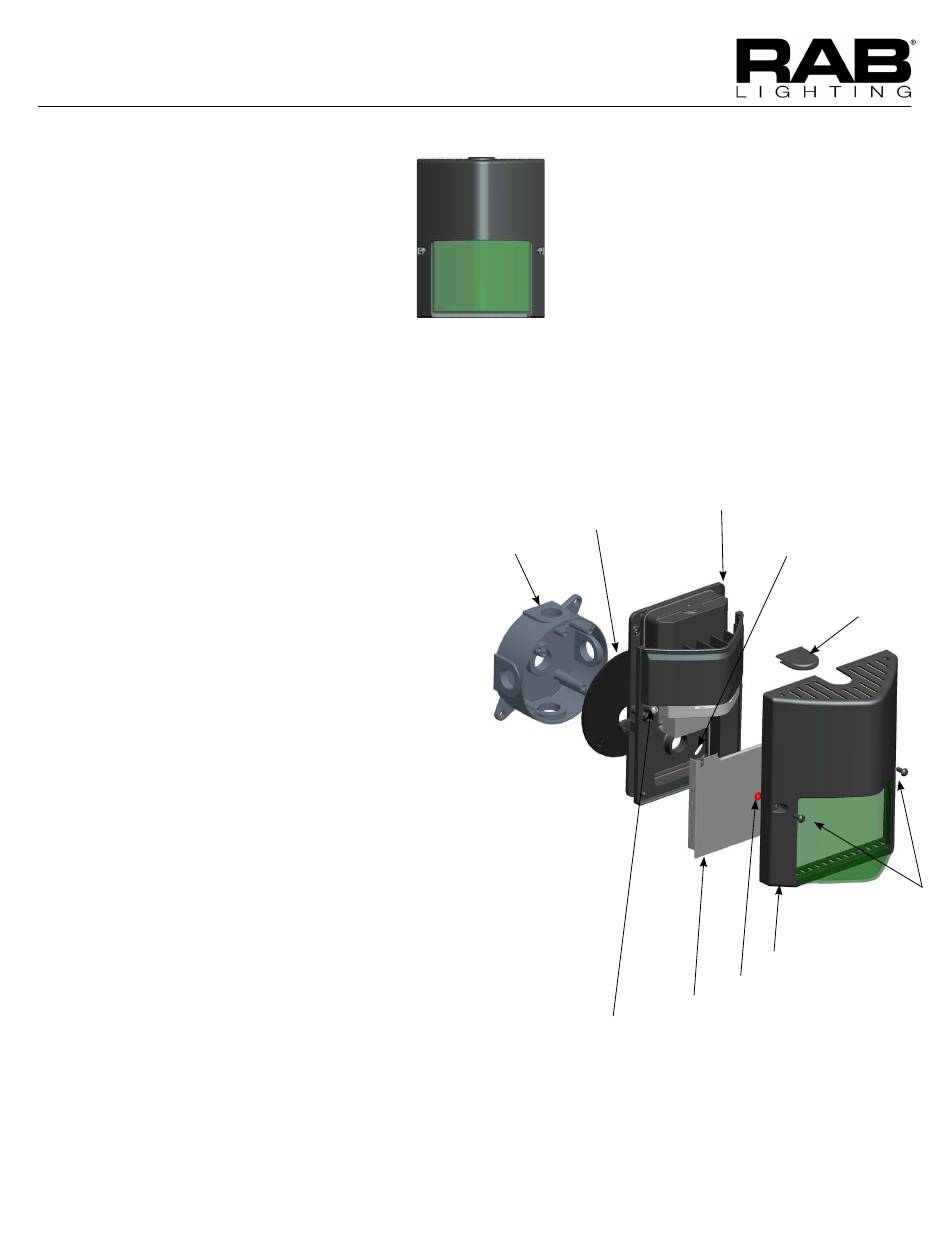

Gasket
Junction Box
(not supplied)
Reflector
Screws (2)
.
Housing
Knock Out Slots
Door
Silicone Washers (2)
Reflector
Plug
Door
Screws (2)
