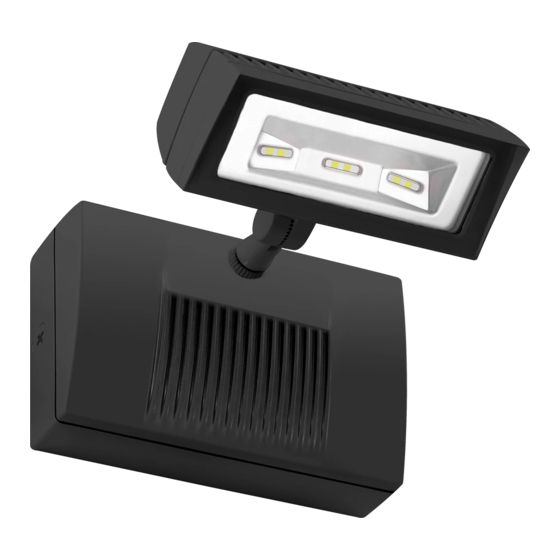

RAB Lighting FFLED18 Installation Sheet

FFLED18 EMERGENCY INSTALLATION SHEET
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments. Call
the Marketing Department at 888-RAB-1000, or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF and batteries are DISCONNECTED before installing or maintaining fixture.
No user serviceable parts inside.
MOuNTING
CAUTION: Suitable as Wet Locations as Wall Mount.
1. Loosen and remove (4) Screws and separate Back
Box from Emergency Housing. Use provided tether.
2. Drill necessary holes on Back Box. Measurements
of drill positions are shown below.
3. Match the hole pattern and place the Gasket on the
Back Box.
4. Secure the Back Box on the surface with hardware
appropriate for the mounting surface.
5. Wire the fixture to the incoming supply wires
according to NEC and local codes. Use UL listed
wire connectors.
6. For FFLED18/E, each battery unit has one
connector. For FFLED18/EC, each battery unit has
two connectors as shown below. For details refer to
the appropriate Wiring Diagram section and supplied
Instruction Sheet.
7. Connect the battery connectors. DO NOT connect
the Batteries before wiring the fixture to the supply.
8. Secure Housing to Back Box. Check Housing
Gasket seal all around.
9. Apply sealant to all unused conduit entry points.
To ensure weatherproof seal, apply weatherproof
silicone sealant around the edge where the fixture
meets the wall. Seal arm thread using teflon tape or
silicone sealant.
Two connectors for
FFLED18/EC
Gasket
Housing
Back Box Housing
Gasket
Bracket
.
Screws
Screws
Emergency
Batteries
FFLED18/E
Battery
Connector
Bracket Screw
