INSTRUCTIONS
WHALE FIELD-ADJUSTABLE INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Disconnect or turn OFF power at the electrical panel before installing or maintaining fixture.
No User serviceable parts inside fixture.
Suitable for wet locations. Min. 75° C Supply Conductors.
SURFACE MOUNTING
The fixture is suitable for outdoor applications in wet location either ceiling or wall mount.
1. Use appropriate mounting hardware (by others) to secure the Snap On Bracket to the mounting surface (Fig. 1, 2, 3, 4). Refer to
recommended mounting locations for the Snap on Brackets.
WARNING: Mount Snap On Bracket symmetrical about the center as shown in Fig. 1, 2. 3, 4.
2. Unlatch the Lens from Housing.
3. Snap out the LED Assembly. Tether Cables are provided to hold Assembly.
4. Feed supply wires through one of the Conduit Plugs (5) to make electrical splices. Cord-grip (1) is provided and may be used based on
application.
5. Use appropriate UL approved wire connectors as required by code to complete wiring with supply wires, see wiring diagram Fig. 9. Be
careful not to pinch wires. WARNING: To prevent wiring damage or abrasion, do not expose wiring to sharp objects.
6. Snap in LED Assembly and secure LENS to housing by Latch. Check that the Gasket is fully seated.
7. Install Housing on Snap On Brackets as shown in Fig. 4.
8. Use silicone or Teflon® tape on all conduit entry points.

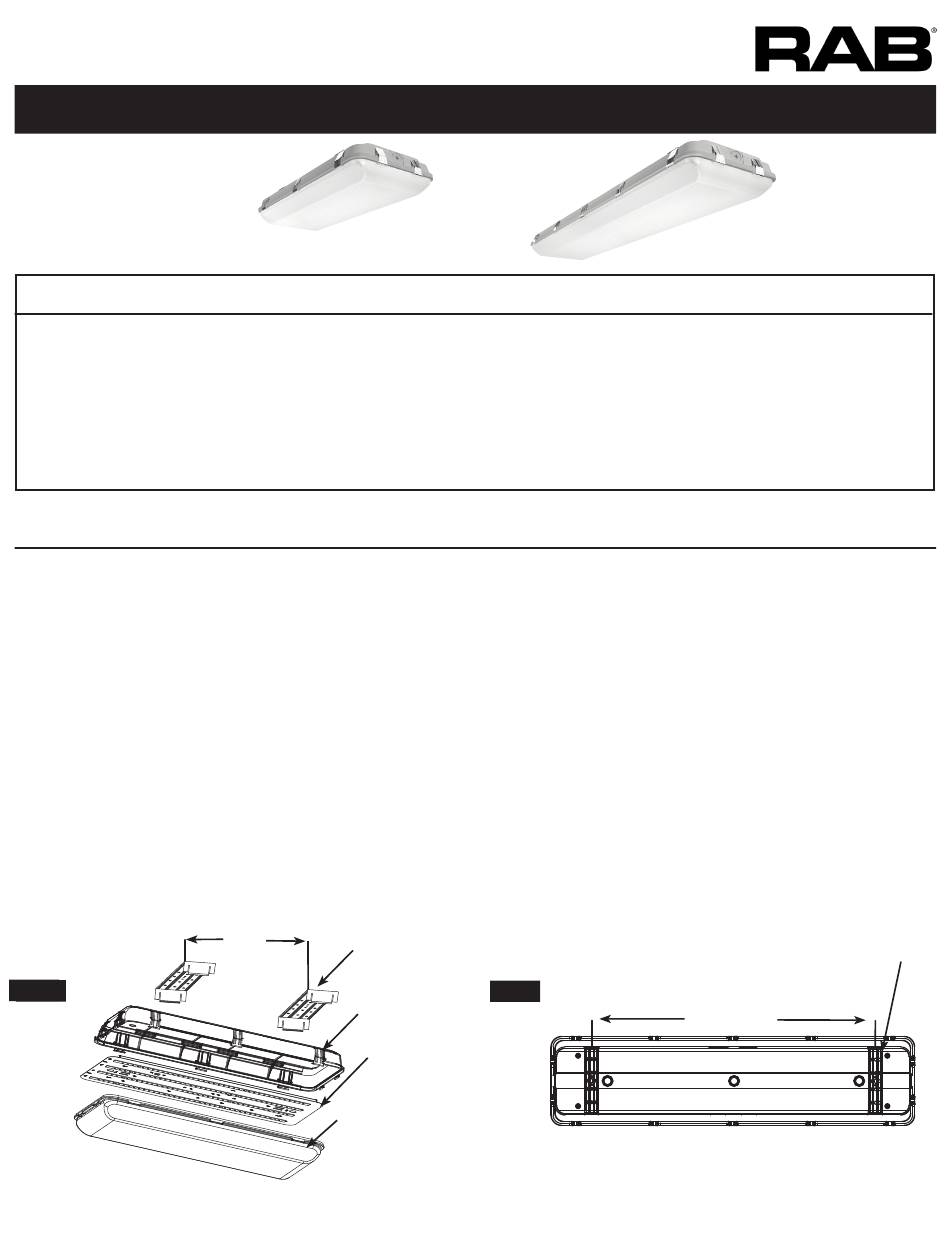

Fig. 1 Fig. 1
WHALE 2ft
WHALE2 / WHALE2H
14 -11/16"
Snap On Bracket
Latch
LED & Heat Sink
Assembly
Lens
WHALE4 / WHALE4H
Fig. 2
Snap On Bracket
38 - 9/16"
WHALE 4ft
