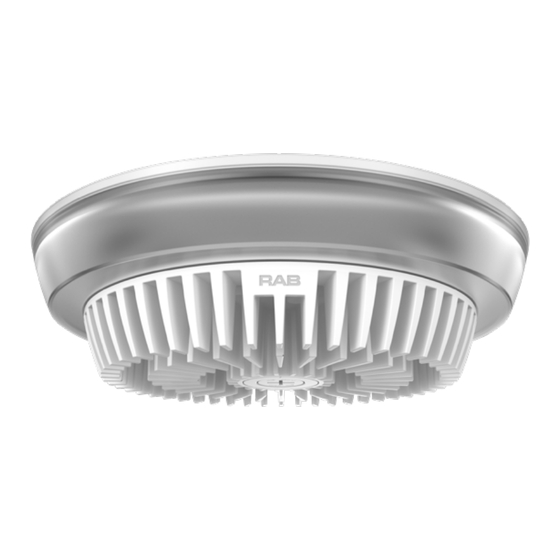

RAB Lighting PARK34-40 Installation Instructions

INSTRUCTIONS

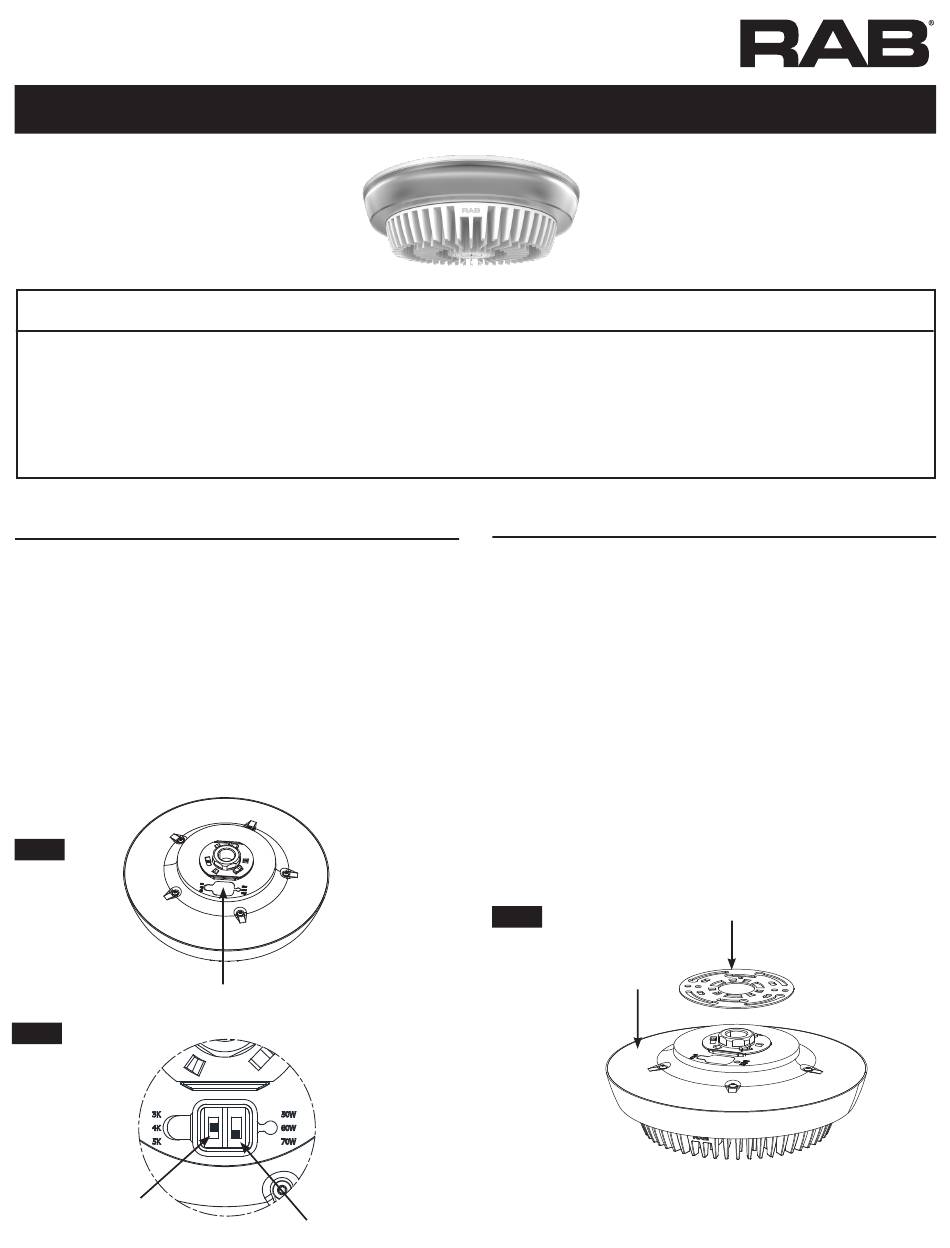

FIELD-ADJUSTABLE PARK34 INSTALLATION
RAB Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
NOTE: FIELD-ADJUSTMENT SETTINGS MUST BE MADE PRIOR TO INSTALLATION, SEE FIG. 1 AND 2.
FIELD ADJUSTMENT
Follow instructions below to change Color Temperature (CCT)
and/or Power (W) operation from factory settings.
Factory Settings: PARK34-40 40W / 4000K
PARK34-70 70W / 4000K
1. Pull open Field-Adjustable Switch Cover located on top of
housing as shown in Fig. 1.
2. Locate Field-Adjustable selector switches. Select Color
Temperature (CCT) and/or Power (W) function by sliding the
respective switch to the desired value (Fig. 2).
3. Replace Field-Adjustable Switch Cover.
Fig: 1
Field-Adjustable Switch Cover
Fig: 2
Color Temperature (CCT)
™
Power (W)
CEILING MOUNT
The Fixture is suitable for outdoor applications in wet locations.
1. Install Ceiling Mounting Plate to junction box (by others) as shown
in Fig. 3. See Fig. 5 for Mounting Pattern. Use the appropriate
mounting hardware for the mounting surface. Fixture may
alternately be mounted to a recessed junction box.
2. Pull supply wires from junction box and use the appropriate wire
connectors as required by code to make electrical splices to fixture
leads. See wiring diagram, Fig. 7.
3. Once connections are made push all wires back into junction
box. Be careful not to pinch wires. WARNING: To prevent wiring
damage or abrasion, do not expose wires to edges or sharp
objects.
4. Push Fixture into Ceiling Mounting Plate and rotate clockwise to
lock in place, Fixture will snap into position. Once in position the
Fixture should be tight and not easily rotated counter-clockwise.
Ceiling Mounting Plate
Fig: 3
Fixture
