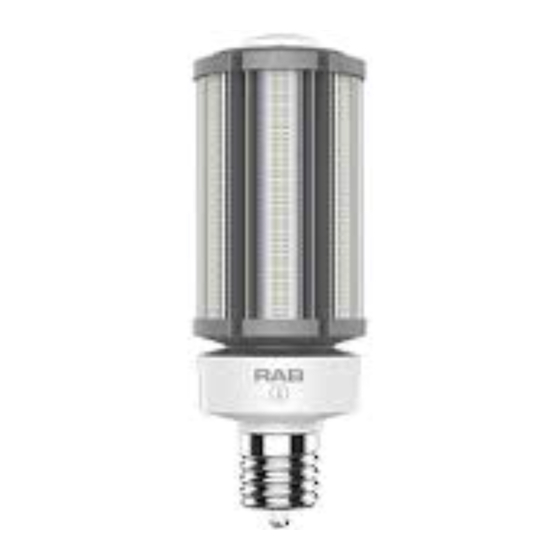

- Page 1 Welcome Smart LED Post Top WE’RE HERE TO HELP: 1(844) LIGHTCLOUD 1(844) 554-4825...
-
Page 2: Product Features
Hello Lightcloud is a wireless lighting control service. The Lightcloud Lamp is an intelligent lamp that connects wirelessly to a Lightcloud system to provide switching, dimming and scene control. Product Features Wireless Control & Configuration Scheduling & Astronomical Clock Switching & Dimming Performs as Regular Lamp When no Lightcloud module plugged in... - Page 3 CAUTION • These LED Lamps require all ballasts, capacitors, and ignitors to be bypassed or removed. Do not operate lamps on existing ballasts. • Before installation make certain the AC power to the fixture is off. • For use in enclosed fixtures. •...
- Page 4 • Added weight of the device may cause instability of a free-standing portable luminaire. • Not suitable for use with dimmers and sensors unless specifically designed for RAB Lightcloud Lamps. • Only install in operating environments between -22 ℉ and 140℉ (-30℃...
-
Page 5: What You Need
What You Need Finding a suitable location Lightcloud uses a wireless mesh network to connect devices such as the Lightcloud Lamp to the Gateway. Unlike a WiFi router, each Lightcloud device may connect another device to the network. If there is a clear line of sight between two Lightcloud devices, they can be placed up to 1000 feet apart. -
Page 6: Setup And Installation
Setup & Installation WARNING... - Page 7 Constant Power Required Please remove all existing switches, dimmers, sensors, time clocks, or other control devices from all circuits with Lightcloud devices. Smart Lamps require constant power and should not be controlled using traditional dimmers, switches, or other power-limiting devices. For manual control, use the Lightcloud App or install a Lightcloud Dimmer.
- Page 8 Install the Lightcloud Lamp Step: 1 Turn off the power before installation. Remove old ballasts/dimmers from existing lampholder as shown in Figure 1. Dimmer Fig 1 Step: 2 Make sure the Alternating Current (AC) wires connect to the socket directly. Screw the Lightcloud lamp into the corresponding socket as shown in Figure 2.
- Page 9 Pairing the Lamp Step: 3 Screw in the Lightcloud lamp into the corresponding lamp base. Figure 4. After screwing in, lamp will enter pairing mode automatically if it has not joined a gateway previously. Once gateway has been joined, lamp will indicate by flashing on and off 5 times and then dim to 30% brightness.
- Page 10 Labeling Your Device When installing devices, it’s important to keep track of their Device IDs, installation locations, panel/cir- cuit #s, dimming function, and any additional notes. To organize this information, use the Lightcloud Installer Application (A) or Device Table (B). Lightcloud Installer Application Install the LC Installer Application: LC Installer is available for iOS and Android.
- Page 11 Device Scanner Device Info Device ID 0013A20040B62A4A Location A1234 Zone Name ABCD PLACE RECTANGLE TO FIT CODE ON LABEL Dimmable Power Monitoring Enter Manually Cancel Save 1. Scan Device Code 2. Enter Device Information Device Scanner Devices Office Light - ID 0013A20040B62A4A Controller Office Light - ID 0013A20040B62A4B Sensor...
- Page 12 Device Table Two Lightcloud Device Tables are provided with each Gateway: one that you can attach to your panel and one to hand off to a building manager. Attach the Device Identification stickers included with each device to a row, then write in additional information, such as Zone name, Panel/Circuit Number, and whether or not a Zone uses dimming.
- Page 13 Lightcloud is a commercial wireless lighting control system. It’s powerful and flexible, yet easy to use and install. Learn more at www.lightcloud.com 1(844) LIGHTCLOUD 1(844) 554-4825 ©2020 RAB LIGHTING Inc. Made in China Pat. rablighting.com/ip...
