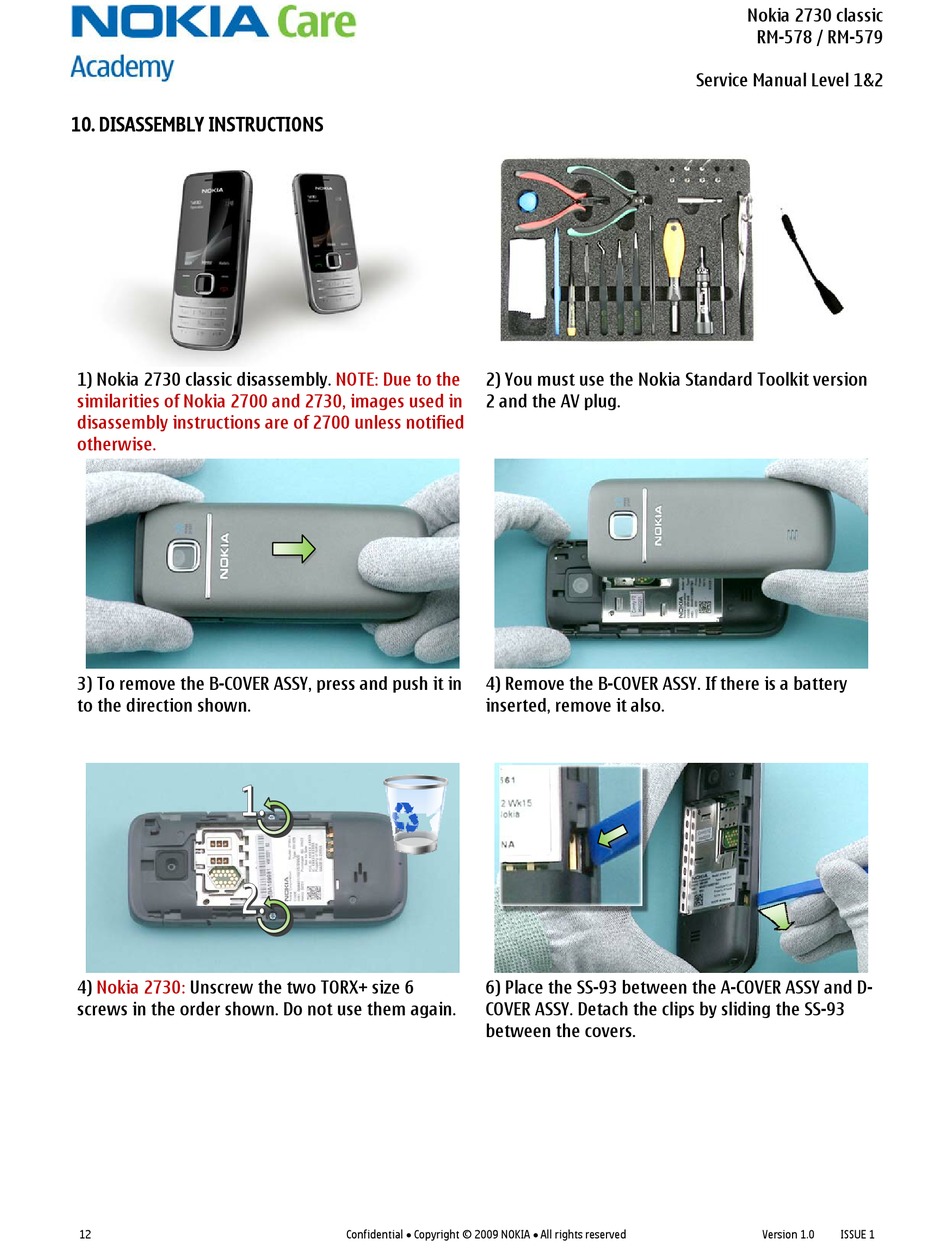

10. DISASSEMBLY INSTRUCTIONS

1) Nokia 2730 classic disassembly.
similarities of Nokia 2700 and 2730, images used in
disassembly instructions are of 2700 unless notified
otherwise.
3) To remove the B-COVER ASSY, press and push it in
to the direction shown.
4) Nokia 2730: Unscrew the two TORX+ size 6
screws in the order shown. Do not use them again.
12
NOTE: Due to the 2) You must use the Nokia Standard Toolkit version
2 and the AV plug.
4) Remove the B-COVER ASSY. If there is a battery
inserted, remove it also.
6) Place the SS-93 between the A-COVER ASSY and D-
COVER ASSY. Detach the clips by sliding the SS-93
between the covers.
