Lorex LH314 SERIES Instruction Manual

Lorex LH314 SERIES Instruction Manual

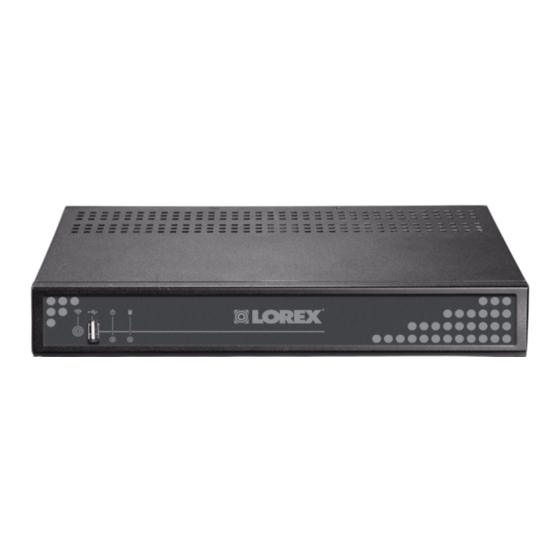

Lorex-edge network ready h.264 high performance digital video surveillance recorder
Hide thumbs Also See for LH314 SERIES:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

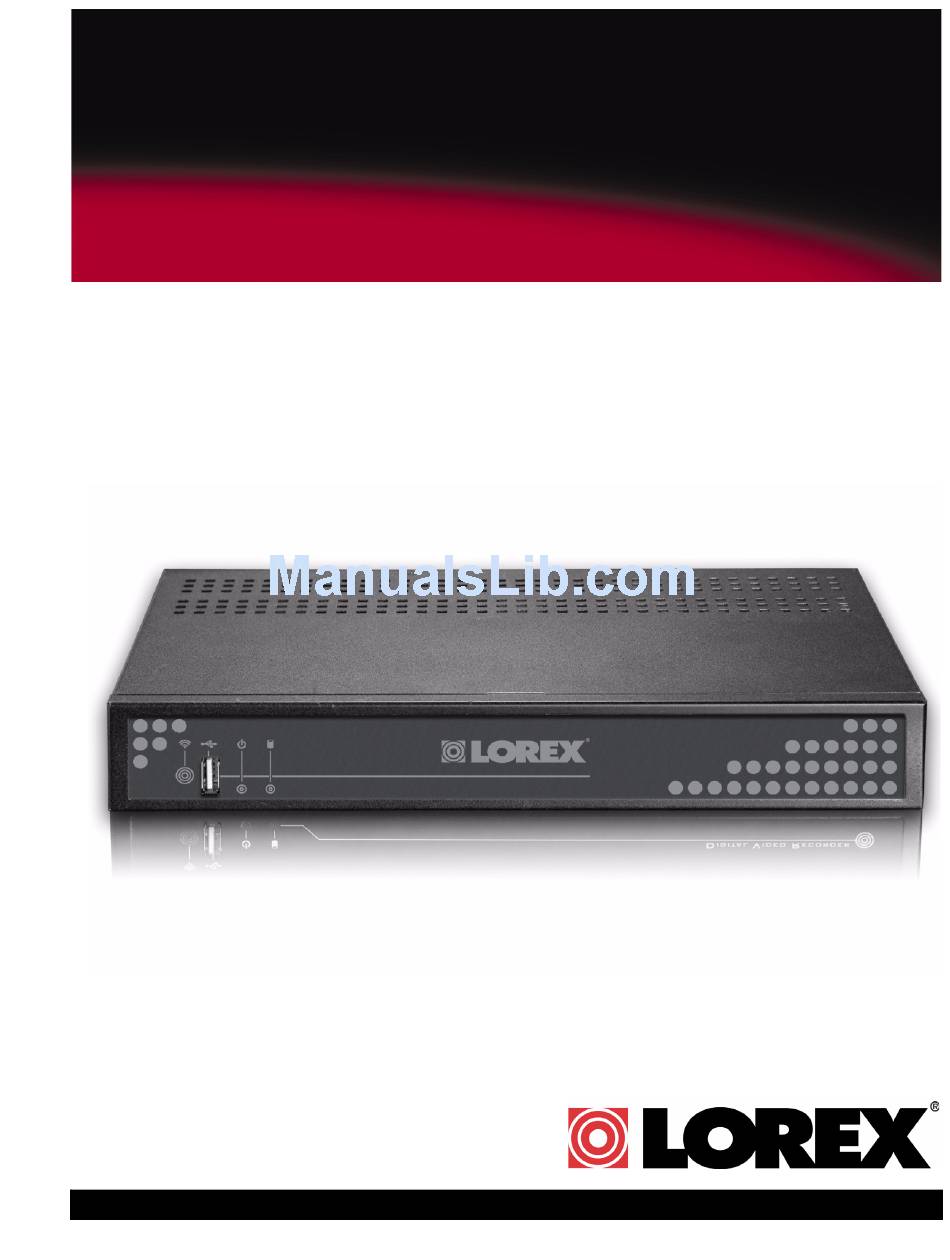

LOREX-EDGE
NETWORK READY H.264 HIGH PERFORMANCE
DIGITAL VIDEO SURVEILLANCE RECORDER
INSTRUCTION MANUAL
English Version 3.0
MODEL:
LH314 SERIES
www.lorexcctv.com
©
Copyright
2009 Lorex Technology Inc.

Advertisement

Table of Contents
loading

Related Manuals for Lorex LH314 SERIES

Summary of Contents for Lorex LH314 SERIES

  • Page 1 LOREX-EDGE NETWORK READY H.264 HIGH PERFORMANCE DIGITAL VIDEO SURVEILLANCE RECORDER INSTRUCTION MANUAL English Version 3.0 MODEL: LH314 SERIES www.lorexcctv.com © Copyright 2009 Lorex Technology Inc.
  • Page 2 Thank you for purchasing the LH314 Edge H.264 Digital Video Surveillance Recorder. The LH314 features a slim, compact design that allows for wall mounting and mounting to the back of most LCD monitors. The slender housing still delivers professional-grade performance with H.264 compression, USB backup, and an easy to use graphical user interface.
  • Page 3 B E F O R E Y O U S T A R T THIS PRODUCT MAY REQUIRE PROFESSIONAL INSTALLATION LOREX IS COMMITTED TO FULFILLING YOUR SECURITY NEEDS • We have developed user friendly products and documentation. Please read the Quick Start Guide and User Manual before you install this product.
  • Page 4 ESTE PRODUCTO PUEDE EXIGIR UNA CE PRODUIT POURRAIT EXIGER UNE INSTALACIÓN PROFESIONAL INSTALLATION PROFESSIONNELLE LOREX S’ENGAGE À SATISFAIRE LOREX SE COMPROMETE A SATISFACER VOS BESOINS SÉCURITAIRES SUS NECESIDADES EN SEGURIDAD • Veuillez lire le guide de démarrage rapide et le •...
  • Page 5 NEED HELP? CONTACT US FIRST DO NOT RETURN THIS PRODUCT TO THE STORE Please make sure to register your product at www.lorexcctv.com to receive product updates and information EASy WAyS TO CONTACT US:  Online: Pr oduc t Suppo r t i s a v a i l a b l e 24/ 7 i n c l u di ng p r o du ct in for m a ti o n, us e r m a nu a l s , qu i c k s ta r t u p gu i de s a n d F A Q ’...
  • Page 6 Commentaires des clients info@lorexcorp.com info@lorexcorp.com   Por Teléfono: Par Téléphone: L’AméRiqUE dU NORd: 1-888-425-6739 (1-888-42-lorex) NORTE AméRiCA: 1-888-425-6739 (1-888-42-lorex) mEXiCO: 1-800-514-6739 mEXiCO: 1-800-514-6739 iNTERNACiONAL: +800-425-6739-0 iNTERNATiONAL: +800-425-6739-0 (Ejemplo: desde el Reino Unido, marque el 00 en lugar del +) (Exemple: À...

  • Page 7: Important Safeguards

    Important Safeguards Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment.
  • Page 8 Important Safeguards Service 13. Servicing - Do not attempt to service this video 19. Cleaning - Unplug the video product from the wall equipment yourself as opening or removing covers outlet before cleaning. Do not use liquid cleaners or may expose you to dangerous voltage or other aerosol cleaners.

  • Page 9: General Precautions

    Important Safeguards General Precautions 1. All warnings and instructions in this manual should be followed. 2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water dampened cloth for cleaning. 3. Do not use this unit in humid or wet places. 4.
  • Page 10 ** Requires a high speed Internet connection and router (not included) Microsoft Windows™ XP™, Vista™ are trademarks of Microsoft Corporation. Other trademarks are the property of Lorex Technology Inc. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as...

  • Page 11: Table Of Contents

    Table of Contents Getting Started ............1 Basic Setup .
  • Page 12 Backup File Information ............26 LAN .

  • Page 13: Getting Started

    Getting Started Getting Started The system comes with the following components: POWER ADAPTER EDGE DVR FLEX-IR EXTENDER REMOTE CONTROL* USB MOUSE VESA MOUNTING ETHERNET CABLE INSTRUCTION MANUAL SCREWS ( QUICKSTART GUIDE DOCUMENTATION CD *Remote control included with the system may vary depending on model. HARD DRIVE SIZE, NUMBER OF CHANNELS, AND CAMERA CONFIGURATION MAY VARY BY MODEL.

  • Page 14: Basic Setup

    Basic Setup Basic Setup The system is designed to mount to the back of LCD monitors with a VESA mount. If desired, you can mount it to a wall or leave the system in a standard horizontal position. ATTENTION: You can only mount the system to an LCD monitor that has a VESA mount and an independent stand.

  • Page 15: Front Panel

    Front Panel Front Panel 1. IR Receiver: Internal IR receiver for the remote control. 2. USB port: Connect a USB flash drive for data backup and firmware updates (download from website). 3. Power Indicator: LED indicator for system power. When system is powered on, LED is lit red. 4.

  • Page 16: Mouse Control

    Mouse Control Mouse Control The mouse is the primary input device for navigating the system’s graphical user interface. NOTE: Unless otherwise noted, all system functions described in this manual are achieved through mouse input. To use a mouse with the system: 1.

  • Page 17: Remote Control

    Remote Control Remote Control The remote control is the secondary input device for navigating the system’s graphical user interface. NOTE: If the remote control included with your system differs from figure 3.0, please see page 6 for details. To use the remote control: ST: Open the Event List menu.
  • Page 18 Remote Control (cont’d.) Remote Control (cont’d.) The remote control is the secondary input device for navigating the system’s graphical user interface. To use the remote control: MENU: Opens the system main menu. : From full-screen single channel view, changes display view to Quad split-screen. /CH+: Move cursor in menus up;...

  • Page 19: Starting The System

    Starting the System Starting the System To power the system ON: • Connect the power cable to the DC 12V port on the rear panel of the system At startup, the system performs a basic system check and runs an initial loading sequence. After a few moments, the system loads a live display view (Live Mode).
  • Page 20 Starting the System 4. Camera Status: Displays channel number, recording status, frame rate, and video quality. 5. Date/Time: Displays the date and time on the system. 6. Toolbar: Primary control input for the user interface: • : Click to view channel 1 in full-screen. •...

  • Page 21: Setting The Date And Time

    Setting the Date and Time Setting the Date and Time It is highly recommended to immediately set the date and time when first setting up your system. To set the date and time: 1. Click to open the Main Menu. 2.

  • Page 22: Recording

    Recording Recording By default, the system is set to immediately record video from connected cameras in Continuous Record Mode. You can set the system to stop recording once the hard drive is full, or to continually record by overwriting previously recorded data. For more details, see “Record” on page 21. Event Recording The system includes three modes of event recording: •...

  • Page 23: Playback

    Playback Playback View recorded video on the system through playback mode. The playback time appears in the bottom-right corner of the screen. Figure 6.0 Playback display view To begin playback: 1. From the main screen, click Playback mode opens. NOTE: If toolbar is not visible, first click 2.

  • Page 24: Playback Markers

    Playback Playback Markers During playback, click anywhere in the playback bar to set a playback marker. Use this orange-colored marker for reference in future searches. Additional Search Markers The Playback bar can also be populated with other multi-colored markers. These markers are part of the Smart Search functionality of the system.

  • Page 25: Event List

    Event List Event List The system features an Event List to organize and search for recorded video on the system. The Event List, coupled with the Smart Search icons, allows you to search for recorded data on your DVR faster and easier. Figure 7.0 Event List 1.

  • Page 26: Smart Search

    Event List Smart Search Click on the Smart Search icons to filter data according to events. These Smart Search icons are mirrored as event markers in Playback and Backup modes. Figure 7.1 Smart Search Icons Event Details The event details (event number, camera on/off, filter type, date & time, and event source) immediately match the list of events.

  • Page 27: Searching For Recorded Data

    Event List Searching for Recorded Data You can use the Event List from Live Mode and Playback Mode to search for recorded data on your system. Live Mode To search for data: 1. From the main screen, click . The Event List opens. 2.

  • Page 28: Playback Mode

    Event List Playback Mode To search for data: 1. From the main screen, click . Playback mode opens. NOTE: If toolbar is not visible, first click 2. Click . The Event List opens. 3. Under Channel Filter, click to view events for ALL channels, or click , or to view events from individual channels.

  • Page 29: Managing Passwords

    Managing Passwords Managing Passwords The system has the following user authorities: • ID 1—normal user: Has full control of the system, but cannot change passwords or enable/ disable password checking. Default password: 1111 • ID 2—administrator: Has full control of the system, and can change both administrator and user passwords and enable/disable password checking.

  • Page 30: Changing Passwords

    Managing Passwords Changing Passwords You need to be logged in as the administrator (ID 2; password 2222) in order to change passwords on the system. To change passwords: 1. Click to open the Main Menu. 2. Click . The Setup menu opens. 3.

  • Page 31: Using The Main Menu

    Using the Main Menu Using the Main Menu • Click to open the Main Menu. NOTE: If passwords are enabled on the system, you need to select your user ID and enter the four-digit numerical password to open the Main Menu. See “Managing Passwords” on page 17. Figure 9.0 System Main Menu 1.

  • Page 32: Camera

    Using the Main Menu Camera Setup Configure display settings for each camera. Set date/time, system language, passwords, and view system information. Figure 10.0 Camera menu Figure 11.0 System Setup To configure camera settings: To configure Setup settings: 1. From the Main Menu, click .

  • Page 33: Record

    Using the Main Menu • NTSC/PAL Select: Scroll up/down to select To configure record settings: NTSC (I.e. North America), PAL (i.e. Europe), or AUTO. If AUTO, the system will 1. From the Main Menu, click . The automatically detect the format of the Record menu opens.

  • Page 34: Storage Calculator

    Using the Main Menu Schedule • Record Mode: Select one of the following: Set an hourly, daily, and/or weekly recording Single-Way: The system schedule. stops recording when the internal hard drive is full. Overwrite: The system continues recording when the internal hard drive is full by overwriting the oldest recorded data.

  • Page 35: Format Hdd

    Using the Main Menu Format HDD deo Loss Alarm: Click under each • Vi camera and select either O to enable the If you replace the pre-installed hard drive, it VLoss alarm, or to disable it. If enabled, must be formatted in order to function properly the system will sound an alarm whenever with the system.

  • Page 36: Motion

    Using the Main Menu Motion Set the motion detection cells and sensitivity for each camera. To configure motion detection: 1. From the Alarm menu, click Motion Enable. The text, "Motion" will appear on-screen when motion is detected on the respective camera. 2.

  • Page 37: Backup

    Using the Main Menu Backup 4. Click Yes to format the hard disk or click No to cancel. Set start and stop times for recorded video data you wish to copy to a connected USB flash drive (not included). Figure 14.1 Confirm formatting NOTE: The system supports most brands of USB flash drives from 128MB ~ 8GB.

  • Page 38: Confirming Backup

    Using the Main Menu Confirming Backup To verify that the file has been properly backed Configure network settings. From the Main Menu, click . The LAN menu opens. 1. Click to open Event List. NOTE: Some networking knowledge is 2. Click from the Smart Search event required when adjusting options in the LAN filter.

  • Page 39: Lan Password

    Using the Main Menu LAN Password Upgrading Firmware Use the LAN Password to control Remote Firmware upgrades can provide improved Viewing access for Guest, User, and functionality to your system. You can download Administrator profiles. The LAN password is these free upgrades from your DVR required if using the built-in browser-based manufacturer’s website.

  • Page 40: Remote Access: Dvr Netviewer

    Using the Main Menu REMOTE ACCESS: DVR Netviewer DVR Netviewer is the built-in browser-based remote surveillance software that allows you to access your system from any PC with an Internet connection. Figure 16.0 DVR Netview Main Screen System Requirements Prior to using DVR Netviewer, make sure your PC meets or exceeds the following system requirements: Description Requirement...

  • Page 41: Getting Started

    Getting Started Getting Started Before using DVR Netviewer, you must configure settings in QuickTime™. QuickTime™ is required for DVR Netviewer to function properly. If not already installed on your system, download QuickTime™ from www.apple.com/quicktime NOTE: Make sure you have connected your DVR to your network prior to using DVR Netviewer. Configuring QuickTime™...

  • Page 42: Using Dvr Netviewer

    Using DVR Netviewer Using DVR Netviewer With your system connected to your local area network, and settings configured in QuickTime, you can now log in to your system via DVR Netviewer and Internet Explorer. Network User Profiles In order to login to DVR Netviewer, you need a network user ID and password. These user IDs and passwords are different from those that control access to your DVR.

  • Page 43: Remote Access Main Screen

    Using DVR Netviewer 4. If necessary, select your MIME type* configuration. DVR Netviewer uses Quicktime™ for live video streaming. Select No to maintain your MIME type association with your default media player. If you select Yes, the MIME types will be associated with QuickTime™. Check the box to avoid seeing the MIME type prompt in the future.

  • Page 44: Live Viewing

    Using DVR Netviewer Live Viewing NOTE: Depending on your network connection, please allow a few moments for By default, DVR Netviewer launches in Live the system to switch to playback mode. Viewing mode. 2. Click , to select the channel you want to view. 3.

  • Page 45: Backup

    Using DVR Netviewer BACKUP 3. From the main screen, click Windows will prompt you to install the CAB Use Backup to copy recorded video data from file. Click Install to begin the installation. your DVR to your PC. NOTE: Only the system administrator (by default, ID 9) may use the Backup function of DVR Netviewer.

  • Page 46: Setup

    Using DVR Netviewer SETUP Bitrate Use Setup to configure your network settings and video streaming options. NOTE: All users (by default, IDs 7, 8, and 9) have access to the Setup menu; only the system administrator (by default, ID 9) may configure PPPoE and DDNS settings.

  • Page 47: Ddns

    Using DVR Netviewer DDNS Lorex provides a free DDNS service for use with your DVR. A DDNS account allows you to set up a web site address that points back to your Local Network. ATTENTION: You MUST enter your DDNS information LOCALLY before attempting remote access.

  • Page 48: System Status

    Using DVR Netviewer System Status By default, when Setup menu opens to the System Status screen. However, you view this screen at any time when navigating the Setup menu. Figure 23.5 System Status To view system status: • Click System. The System Status screen appears.

  • Page 49: Appendix A: System Specifications

    Appendix A: System Specifications Appendix A: System Specifications Description Specification Hard disk capacity Maximum 1 HDD up to 1TB, 100% duty cycle Operating system Linux (embedded) Backup USB flash drive (front panel port only) Backup file format Compression H.264 Recording NTSC: 640x240, 640x480;...

  • Page 50: Product Information

    (WxHxD) 12.5" x 2.15" x 9.6" Front Side As our products are subject to continuous improvement, Lorex Technology Inc. and its subsidiaries reserve the right to modify product design, specifications, and prices without notice and without incurring any obligation. E&OE...

  • Page 51: Appendix B: Setting Up Local And Remote Viewing

    Appendix B: Setting up Local and Remote Viewing Appendix B: Setting up Local and Remote Viewing You can connect the system to a network for local or remote viewing. Once connected, you can access your system locally or remotely using the DVR Netviewer client with Internet Explorer. The default IP address of the system is 192.168.1.89 NOTE: Experience with routers and networking are recommended if configuring the network functions of the system.

  • Page 52: Connecting To A Network

    Appendix B: Setting up Local and Remote Viewing Connecting to a Network To connect to a network: 1. Connect an Ethernet cable (included) to the LAN port on the rear panel of the system. Connect the other end of the Ethernet cable to an empty LAN port (usually numbered 1~4) on your router.
  • Page 53 Appendix B: Setting up Local and Remote Viewing 3. Type ipconfig and press Enter. Your network information appears (see figure 24.1). You may need to enter some of this information in your system’s LAN settings. Enter the third set of numbers from the IP address and Gateway in the LAN settings of your system.

  • Page 54: How Do I Find My Ip And Mac Addresses

    Appendix B: Setting up Local and Remote Viewing How do I find my IP and MAC addresses? The IP and MAC address of your system are necessary for DDNS setup. DDNS allows you to view and control your system from a remote location. NOTE: Make sure you have connected the DVR to your local or wide area network via the LAN port on the rear panel of the system.

  • Page 55: How Do I Enable Port Forwarding

    Appendix B: Setting up Local and Remote Viewing How do I enable port forwarding? You need to enable port forwarding on your router to allow for external communications with your system for the following port: • 80 (HTTP port) • 8090 (QuickTime Port) NOTE: For added security, we strongly recommend changing HTTP port 80 on the system to any desired port—the port must not blocked by your Internet service provider (ISP).

  • Page 56: Setting Up Ddns Service

    Setting Up DDNS Service Lorex offers a free DDNS service for use with your DVR. A DDNS account allows you to set up a web site address that points back to your Local Network. The following outlines how to set up your free Lorex DDNS account.
  • Page 57 Appendix B: Setting up Local and Remote Viewing You will need this information for remote access to your system. Record your information below: Username: Domain name*: Password: * Only the first part of the Domain Name is required for setup on the system. For example, if the full domain sent is tomsmith.lorexddns.net, you only need to enter tomsmith on the system.

  • Page 58: How Do I Enable Ddns On My System

    4. Under DDNS Select, click the drop-down menu and select http://lorexddns.net 5. In the corresponding text fields, enter your DDNS username and password. NOTE: Obtain this information from the confirmation email after registering for the free Lorex DDNS service. 6. Under DDNS Domain Name, enter only the first portion of your DDNS domain from the confirmation email.

  • Page 59: Networking Checklist

    Appendix B: Setting up Local and Remote Viewing Networking Checklist Use this checklist to confirm you have completed all the steps of the Network Setup. I have the following: • High-Speed Internet • Router • Ethernet cable (included with the system) •...
  • Page 60 5. Under DDNS Select, click the drop-down menu and select http://lorexddns.net 6. In the corresponding text fields, enter your DDNS username and password. NOTE: Obtain this information from the confirmation email after registering for the free Lorex DDNS service. 7. Under DDNS Domain Name, enter only the first portion of your DDNS domain from the confirmation email.

  • Page 61: Appendix C: Changing Ports On Your System

    Appendix C: Changing Ports On Your System Appendix C: Changing Ports On Your System For added security, we strongly recommend changing HTTP port 80 on the system to any desired port—the port must not blocked by your Internet service provider (ISP). NOTE: Please contact your ISP for complete information on available ports in your area.

  • Page 62: Local Viewing

    Appendix C: Changing Ports On Your System You must now include the new HTTP port number in the URL when logging in to your system with Internet Explorer. NOTE: Requires Internet Explorer 6 or later. Local Viewing: To log in using the new port number: 1.

  • Page 63: Remote Viewing

    Remote Viewing: You should now be able to access your system from your local network. Prior to using remote viewing, you must log in to your system and enter the DDNS information from your Lorex DDNS confirmation email. NOTE: We strongly recommend registering for Lorex’s free DDNS service prior to using remote viewing.
  • Page 64 8. If you have not already done so, port forward ports 85 and 8090 on your router. Each router is different, so port forwarding settings vary by model. Please refer to the Lorex Port Forwarding Guide (www.lorexcctv.com/support and then click Consumer Guides) for help on port forwarding your router.

  • Page 65: Appendix D: Connecting Motion / Alarm Devices

    Appendix D: Connecting Motion / Alarm Devices Appendix D: Connecting Motion / Alarm Devices You can enable Motion Detection and Alarm control from the Main Menu. You can also connect additional motion sensor devices to the system (i.e. motion sensors, door/window sensors) with a D-sub 9 connector (not included).

  • Page 66: Appendix E: Full Connectivity Diagram

    Appendix E: Full Connectivity Diagram Appendix E: Full Connectivity Diagram The following diagram outlines a general set of connections available with the DVR. (Not Included) (Not Included) Flex IR Extender (Not Included) USB Port* LINE IN AUDIO / AMPLIFIED SPEAKERS VGA MONITOR (not included) (not included)

  • Page 67: Appendix F: Replacing The Hard Drive

    Appendix F: Replacing the Hard Drive Appendix F: Replacing the Hard Drive The system comes with a pre-installed 3.5" SATA hard drive. You can expand the system with a replacement single hard drive (up to 1 terabyte). NOTE: Make sure that the system is OFF and the power cable has been disconnected before changing the hard drive.

  • Page 68: Replacing The Hard Drive

    Appendix F: Replacing the Hard Drive Replacing the Hard Drive To replace the hard drive: 1. Firmly connect the power and data cables to the replacement SATA hard drive—each cable can only connect in one way. 2. Carefully place the hard drive in the housing: insert towards the front panel, lower the drive, then slide toward the rear panel.

  • Page 69: Formatting The Hard Drive

    Appendix F: Replacing the Hard Drive Formatting the Hard Drive If you replace the pre-installed hard drive, it must be formatted in order to function properly with the system. ATTENTION: Formatting the HDD erases all data on the hard disk. This step cannot be undone.

  • Page 70: Appendix G: Connecting Audio

    Appendix G: Connecting Audio Appendix G: Connecting Audio You can listen to, and record live audio on the system one channel at a time. AUDIO CAPABLE CAMERAS (not included) LINE AUDIO / AMPLIFIED SPEAKERS (not included) To connect audio: 1. Connect RCA audio cables from an audio capable camera(s) to the AUDIO IN 1 / 2 ports on the rear panel.

  • Page 71: Appendix H: Playing Mov Files

    Appendix H: Playing MOV Files Appendix H: Playing MOV Files View your saved backup video files using QuickTime Player™. To playback MOV files: 1. On your PC, open the folder where you saved the MOV file (by default, C:\). By default, converted files use the following naming convention: bv3.mov ™...

  • Page 72: Troubleshooting

    Troubleshooting Troubleshooting When a malfunction occurs, it may not be serious and can be corrected easily. The following describes the most common problems and solutions. Please refer to the following before calling Lorex Technical Support: Error Possible Causes Solutions • System is not •...
  • Page 73 Troubleshooting (cont’d.) Troubleshooting (cont’d.) Error Possible Causes Solutions Mouse not detected • Mouse cable is not firmly • Firmly connect the mouse cable to the USB port by system connected to the system on the rear panel. • Mouse is not connected to the system •...
  • Page 76 SEE HEAR PROTECT Enhance your security with genuine Lorex Cameras, Digital Video Recorders, Integrated Systems and Accessories. Order whatever you need at www.lorexcctv.com or call 1-888-42-LOREX (1-888-425-6739) Restaurant Warehouse Office Convenience Store CVC6998HR CVC6993R CNC1020 VQ1536HR PROTECT EVERYTHING Day Care...
