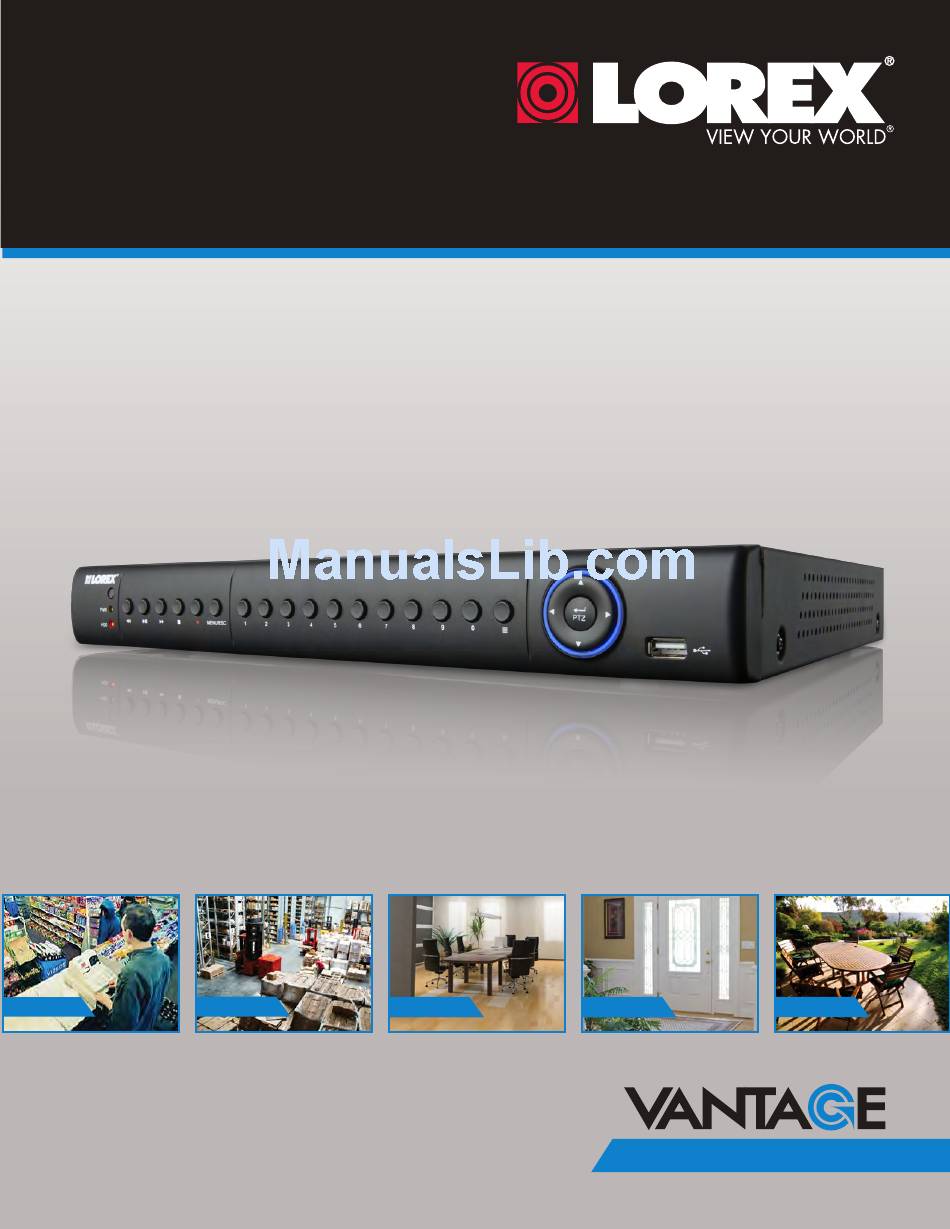

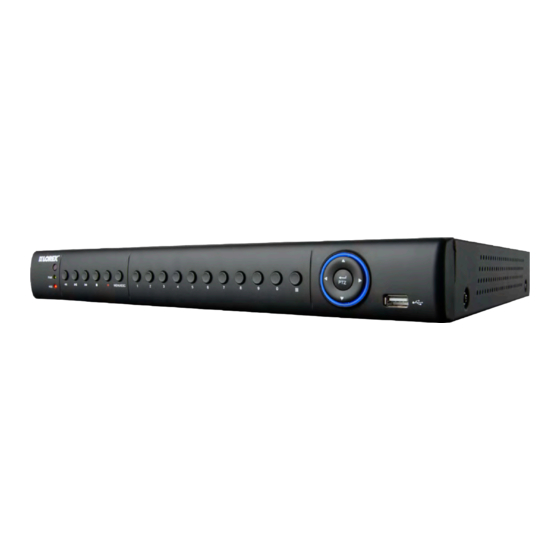

- Page 1 DIGITAL VIDEO SURVEILLANCE RECORDER Instruction Manual English Version 2.0 THE ECONOMICAL SOLUTION TO PROTECT YOUR HOME BUSINESS RETAIL INDUSTRY BUSINESS HOME BUSINESS OUTDOOR LH140 ECO3 SERIES www.lorextechnology.com Copyright © 2013 Lorex Technology Inc.
- Page 2 Thank you for purchasing the ECO3 Series Digital Video Surveillance Recorder. This manual refers to the following models: • LH148 (8-channel) • LH146 (16-channel) For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at: www.lorextechnology.com CAUTION RISK OF ELECTRIC SHOCK...
-
Page 3: Need Help
For all other matters, visit www.lorextechnology.com By Phone: North America: : 1-888-425-6739 Customer Service (for warranty matters) (1-888-42-LOREX) : 1-877-755-6739 Tech Support (for technical/installation issues) (1-877-75-LOREX) Mexico: 001-800-681-9263, 001-800-514-6739 International: +800-425-6739-0 (Example: From the UK, dial 00 instead of +) - Page 4 1-888-425-6739 (1-888-42-LOREX) Asistencia técnica Soutien technique (para asuntos técnicos o de instalación) (pour les questions d’ordre technique ou relatives à 1-877-755-6739 (1-877-75-LOREX) : 1-877-755-6739 (1-877-75-LOREX) l’installation) Mexique : 001-800-681-9263, 001-800-514-6739 Mexico: 001-800-681-9263, 001-800-514-6739 Internacional: +800-425-6739-0 International : +800-425-6739-0 (par exemple : à partir du Royaume-Uni, composez le 00 au lieu de +)
- Page 5 Please make sure to register your product at www.lorextechnology.com to receive product updates and technical support THIS PRODUCT MAY REQUIRE PROFESSIONAL INSTALLATION LOREX IS COMMITTED TO FULFILLING YOUR SECURITY NEEDS • We have developed user friendly products and documentation. Please read the Quick Start Guide and User Manual before you install this product.
- Page 6 ESTE PRODUCTO PUEDE EXIGIR UNA IN- CE PRODUIT PEUT NÉCESSITER UNE STALACIÓN PROFESIONAL INSTALLATION PROFESSIONNELLE LOREX S’ENGAGE À RÉPONDRE À VOS LOREX SE COMPROMETE A SATISFACER BESOINS EN MATIÈRE DE SÉCURITÉ SUS NECESIDADES EN SEGURIDAD • Favor de leer la guía de instalación rápida y la •...
-
Page 7: Important Safeguards
Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment. - Page 8 Installation (Continued) Service Ventilation Servicing - Slots and openings in the case are - Do not attempt to service this product provided for ventilation to ensure reliable operation of yourself, as opening or removing covers may expose the product and to protect it from overheating. These you to dangerous voltage or other hazards.
- Page 9 NOTICES FCC/IC Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.
- Page 10 All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Technology Inc. We reserve the right to change models, con- figurations, or specifications without notice or liability.
-
Page 11: Table Of Contents
TABLE OF CONTENTS Getting Started ..........1 Front Panel . - Page 12 Recording........... . . 23 Event Recording .
- Page 13 Connecting to your DVR using Lorex Client 11 ....... 67...
- Page 14 Lorex Player 11 Interface Overview ........
- Page 15 Step 2 of 2: Configuring and Connecting to Lorex Mobile Eco ......
-
Page 17: Getting Started
Getting Started The system comes with the following components: DVR (DIGITAL VIDEO RECORDER) REMOTE CONTROL 12V DC POWER SUPPLY (may not be exactly as (may not be exactly as shown) shown) USB MOUSE ETHERNET CABLE HDMI CABLE QUICKSTART GUIDES DOCUMENTATION CD HARD DRIVE SIZE, NUMBER OF CHANNELS, AND CAMERA CONFIGURATION MAY VARY BY MODEL. -
Page 18: Front Panel
Front Panel 8-Channel IR Sensor: IR receiver for the remote control. LED Indicators: • PWR: Power LED. • HDD: Hard disk activity LED. Menu & Playback Controls: • : In Playback Mode, press to rewind. Press repeatedly to increase rewind speed. ... -
Page 19: 16-Channel
Navigation Buttons: • : Press to move cursor up. • : Press to move cursor down. • : Press to move cursor left. • : Press to move cursor right. PTZ/ • Within system menus: Press to confirm a selection. •... - Page 20 Navigation Buttons: • : Press to move cursor up. • : Press to move cursor down. • : Press to move cursor left. • : Press to move cursor right. PTZ/ • Within system menus, press to confirm a selection. •...
-
Page 21: Rear Panel
Rear Panel 8-Channel Video Input: Connect up to 8 BNC cameras. Video Output: Outputs the DVR interface to a BNC connection. This allows you to see your mouse cursor and have full control of the system on a secondary monitor. NOTE: Use a BNC to RCA adapter (not included) to connect the DVR to RCA inputs (i.e. -
Page 22: 16-Channel
Rear Panel 16-Channel 11 10 Video Input: Connect up to 16 BNC cameras. Video Output: Outputs the DVR interface to a BNC connection. This allows you to see your mouse cursor and have full control of the system on a secondary monitor. NOTE: Use a BNC to RCA adapter (not included) to connect the DVR to RCA inputs (i.e. -
Page 23: Basic Setup
Basic Setup Basic Setup Step 1: Connect the BNC Cameras • Connect BNC cameras to the Video In ports on the rear panel of the DVR. 8-channel model shown Push and twist the BNC connector clockwise to secure it to the BNC port. Step 2: Connect the Mouse •... -
Page 24: Step 4: Connect The Monitor
Basic Setup Step 4: Connect the Monitor • Connect the included HDMI cable from the HDMI port to the TV or monitor (recommended) OR; • Connect a VGA cable (not included) from the VGA port to the monitor. NOTE: If you have a monitor with a DVI input, you must use an HDMI to DVI adapter (not included). You cannot use an DVI to VGA adapter. -
Page 25: Default System Password & Port Numbers
Basic Setup Default System Password & Port Numbers By default, the system user name is admin and the password is 000000. Passwords are disabled by default and are not required to access the Menu Bar or Main Menu. However, you may be asked for a password to access certain functions. -
Page 26: Connecting Cameras
Basic Setup Connecting Cameras ATTENTION: Cameras differ in terms of installation or mounting instructions. Please see the documentation that came with your camera(s) for specific installation instructions. Test the cameras before permanent installation. Plan where you will route the wiring for the camera and where you will aim the camera. -
Page 27: Connecting Bnc Cameras To Your Dvr
Basic Setup Connecting BNC Cameras to your DVR Connect the male power connector on the BNC extension cable to the female power connector on the camera. • Connect the BNC connector to the camera. Connect the female power connector on the BNC extension cable to the power adapter. Connect the BNC connector to one of the Video Input ports on the rear panel of the DVR. -
Page 28: Mouse Control
Mouse Control Mouse Control The DVR is designed for mouse navigation. To use a USB mouse (included), connect the mouse to a USB port on the rear panel of the DVR. 8-channel model shown USB port Use the mouse buttons to perform the following: •... -
Page 29: Remote Control
Remote Control Remote Control You can also control the DVR using the included remote control. 8-Channel Remote Control Number Keys (1-9): Press to select the desired channel in Full-screen View. • : In Live Viewing Mode, press to open Split-screen View. Press repeatedly to switch between split-screen viewing modes. -
Page 30: 16-Channel Remote Control
Remote Control 16-Channel Remote Control REC: Press to resume recording after recording has been stopped. • SEARCH: Press to open the Search menu. • Number Keys (1-0): In Live Viewing Mode, press to open the desired channel in Full-screen view. Press 1+0 for channel 10, 1+1 for channel 11, etc. -
Page 31: Using The On-Screen Display
Using the On-Screen Display Using the On-Screen Display Use the system’s graphical on-screen display to navigate menus and configure options and settings. 1. Date & Time 2. Record Status 3. Channel number / Channel Title Date & Time: Displays the date and time on the system Record Status: Displays the current recording status of the system: C=continuous (normal recording);... -
Page 32: Using The Menu Bar
Using the On-Screen Display Using the Menu Bar The Menu Bar allows you to access the Main Menu and control basic functions of the DVR. To access the Menu Bar: Right-click or move the mouse cursor to the bottom of the screen to access the Menu Bar. PIP1X1 PIP1X2 Zoom Split screen... -
Page 33: Using The Virtual Keyboard And Mini-Keyboard
Using the On-Screen Display Using the Virtual Keyboard and Mini-Keyboard You can input numeric or text values using the on-screen virtual keyboard. You will need to use the Virtual Keyboard when entering your User ID and Password. The Virtual Mini-Keyboard is used to input numeric values, such as the time and date. To use the Virtual Keyboard: Using the mouse, click on an option or field, such as the User ID and Password fields (if passwords are enabled). -
Page 34: Using The Zoom Mode
Using the On-Screen Display Using the Zoom Mode Zoom Mode allows you to zoom in on an image while viewing your cameras live. This can be useful if you want to get a closer look at a situation. To use the Zoom Mode: In Live Viewing Mode, select the channel you want to zoom in on in full-screen (double-click the channel if you are in a Split-screen View). -
Page 35: Using Picture In Picture (Pip) Mode
Using the On-Screen Display Using Picture in Picture (PIP) Mode Picture in Picture (PIP) Mode allows you to view one channel in full-screen while viewing up to two other channels. To use Picture in Picture Mode: Right-click to open the Menu Bar and select the PIP1X1 button ( ) or PIP1X2 button ( PIP1X1 shows 1 channel in full screen and 1 other channel;... -
Page 36: Setting The Date And Time
• (Optional) NTP: Click the Setup button next to NTP to synchronize your DVR’s time and date with a Network Time Protocol (NTP) time server. Lorex provides a free NTP service that automatically updates your DVR’s time for Daylight Savings Time. -
Page 37: Configuring Daylight Savings Time (Dst)
Configuring Daylight Savings Time (DST) If your region observes Daylight Savings Time (DST), follow the instructions below to configure your DVR to automatically update the time when the clock updates. To enable automatic DST adjustments: Click the DST Setup button. DST Setup Configure the following: •... -
Page 38: Using A Ntp Server To Set Your System Time
Using a NTP Server to set your System Time A NTP (Network Time Protocol) server syncs your system time with an online time server. Lorex provides a free NTP service that allows your DVR to automatically update the time for Daylight Savings Time. -
Page 39: Recording
Recording Recording By default, the system is set to immediately record video from connected cameras in Continuous Recording Mode. • Recording—Continuous: Normal, continuous recording You can set the system to stop recording once the hard drive is full, or to continually record by overwriting previously recorded data. -
Page 40: Playback And Backup
Playback and Backup Playback and Backup You can view and back up recorded video on the system through the Search Menu. Playing Back Recorded Video To playback a specific date and time: Right-click to open the Menu Bar and click the Record Search button ( ). - Page 41 Playback and Backup To search for recorded footage on the DVR: Right-click to open the Menu Bar and click the Record Search button ( ). The Record Search tab opens. Configure the following: • CH: Select the channel you wish to search. Select All to search all channels. •...
-
Page 42: Using Playback Controls
Playback and Backup Using Playback Controls This system features advanced playback controls that allow you to see when you have recorded footage and motion events on your cameras. They also allow you to use digital zoom in playback mode or take backups from short video clips. Different playback controls appear depending on the number of cameras you have selected to playback. -
Page 43: Controlling The Time Range Of The Playback Bar
Playback and Backup Controlling the Time Range of the Playback Bar The time range is the start and end times of the footage displayed in the Playback bar. By default, the Playback bar displays recordings recorded on the day selected for playback (from 00:00~24:00). -
Page 44: Using Video Clip Backup
Playback and Backup Click and drag on the area of the screen you would like to enlarge. The image zooms in on the selected area. Click and drag to zoom in on an area Click and drag inside the box to move the zoom area Zoom icon Right-click to exit and select a different zoom area •... -
Page 45: Backing Up Video
Backup For details on viewing backed up video, see “Lorex Player 11: Playing Backed up Video on PC” on page 92 or see “Lorex Player for Mac: Viewing Backed up Video on Mac” on page 94. Backing Up Video You can back up video to a USB flash drive (not included) connected to the rear panel of the DVR. -
Page 46: Viewing Backed Up Video
For details on viewing backed up video, see “Lorex Player 11: Playing Backed up Video on PC” on page 92 or see “Lorex Player for Mac: Viewing Backed up Video on Mac” on page 94. Converting Backed Up Video to AVI Files The DVR saves its backup files as proprietary video files. - Page 47 Playback and Backup Click Open and then locate the backed up video file on your hard drive. Open Select the desired file format (.264 , h.264, All File) that you wish to search for. Click Open. Open Click Start to convert and save the file in the default save folder. •...
-
Page 48: Managing Passwords
Managing Passwords Managing Passwords ATTENTION: By default, the system user name is and the password is . Passwords admin 000000 are disabled by default and are not required to access the Menu Bar or Main Menu. However, you may be asked for a password to access certain functions. You do not need to enter a password to access the system using the client software or a web browser When you first startup your system, you are technically logged in as the ADMIN (system... -
Page 49: Adding Users
Managing Passwords Configure the following: • User Name: Enter the desired admin user name. • Password Enable: Select Enable to enable system passwords. • Password: Enter your desired password. • Confirm: Re-enter the password. Click Apply to save your settings. Adding Users You can allow multiple users to log in to the system. - Page 50 Select the menus and channels the user will have access to: Select the menus that the user will have access to. Select which channels will have access to: Backup, Preview, Playback and PTZ Control. Click Apply to save your settings. Configure the following: •...
-
Page 51: Using The Main Menu
Using the Main Menu Using the Main Menu To open the Main Menu: • Right-click to open the Menu Bar and click the Main Menu button ( NOTE: If passwords are enabled on the system, you need to enter the 6-digit numerical password to open the Main Menu. -
Page 52: Display
Using the Main Menu Display • U-L: Upper left hand corner. • D-L: Lower left hand corner. The display menu allows you • U-R: Upper right hand corner. to configure camera image • D-R: Lower right hand corner. settings and video output •... -
Page 53: Configuring The Time And Recording Time Display
Using the Main Menu In the Covert drop-down menu, select Click the drop-down menu beside VGA Enable. Resolution and select the output resolution. Click Apply to save your settings. Click Apply to save your settings. Configuring the Time and Right-click repeatedly to exit all menus. Recording Time Display The DVR prompts you to restart. -
Page 54: Adjusting Menu Transparency
Using the Main Menu When the DVR restarts, click Yes to Click Apply to save your settings and click confirm the default resolution. OK to confirm. NOTE: If your system resolution is already Adding Privacy Zones in 1024 x 768, pressing and holding A privacy zone allows you to block out the Stop button will not restart the system. -
Page 55: Creating A Custom Split-Screen Display
Using the Main Menu Click the Setup button next to Mask Area. To re-arrange the split-screen display: The Privacy Area setup screen opens. Select the Output tab. Under View Setup, select Enable. This lets you select and arrange the channels you want to show on the screen. -
Page 56: Record
Using the Main Menu Click the drop-down menus to select Record which channels to show on the screen and The Record menu allows you to the arrangement of channels. configure recording settings, such as the recording resolution, recording schedule, and audio recording. -
Page 57: Configuring The Recording Schedule (Continuous, Motion, Alarm)
Using the Main Menu Changing the file size changes the (Optional): Use the bottom Copy and Copy duration of backed up files. For To drop-down to copy the recording example, if you select 15 minutes as schedule to a specific channel or all your file size, the system stores video channels. - Page 58 Using the Main Menu recommended to select D1 if you have (Optional) Use the Copy and Copy To cameras that are not 960H-capable. drop-down menus to copy recording settings to one or all channels. Click Copy NOTE: If you change this setting, the DVR to copy recording settings.
-
Page 59: Search
Using the Main Menu Search Click on the hour of the video you want to play back. The Search menu allows you to search for saved video on Select the channel or channels you want to your system for playback and play back. -
Page 60: Using The Event Search
• Search Time: Enter the time range you NOTE: You will need the Lorex Player wish to search. (included on the CD) to view the • Type: Select the recording type you wish saved files. -
Page 61: Using The Log Search
Using the Main Menu Using the Log Search Network A log search allows you to search The Network menu allows system event logs. you to configure the system’s DDNS and To perform a Log search: network settings. Click the Log tab. Configuring Network Type: DHCP &... -
Page 62: Enabling Auto Port Forwarding
Using the Main Menu your router as a static IP as well. Consult In Client Port, enter the desired Client your router’s user’s manual for details. Port (default: 9000). Click Apply to save your settings. Right-click until you exit all menus. You will be prompted to restart. -
Page 63: Setting Up Email Notification
Using the Main Menu Configure the following beside the desired If you want to use Lorex’s email server channel: (recommended): In the Email drop-down menu, select • Video: Select Enabled or Disabled. If you Default. select Disabled, you will not be able to view... -
Page 64: Changing The Mobile Connectivity Port, User Name, And Password
Using the Main Menu • Sender Password: Enter your email • The default Mobile port is 1025. This must server’s password. be port forwarded on your router to enable • Receiver Email: Enter the recipient’s remote access. Note that 1025 is email address. -
Page 65: Alarm
Using the Main Menu Alarm • Sensitivity: Select motion sensitivity. The greater the number, the greater the The Alarm tab allows you to sensitivity. configure Motion Detection • Alarm Out: Select the checkbox to enable and Alarm settings. the system to trigger a device connected to the alarm block. -
Page 66: Device
Using the Main Menu Device To configure the Alarm tab: From the Alarm menu, click the Alarm The Device menu allows tab. you to configure hard drive and PTZ settings and format a USB flash drive (not included). • For details on connecting PTZ cameras (not included), see “Appendix B: Connecting a PTZ Camera”... -
Page 67: Formatting Usb Flash Drives
Using the Main Menu System In the Overwrite drop-down menu, select Auto (recommended), or select the desired The System tab allows you to duration the hard drive should retain its configure the system time data. and user accounts. NOTE: If overwrite recording is enabled, the system’s hard drive automatically re-writes the hard drive’s oldest •... -
Page 68: Changing Video Output - Ntsc & Pal
Using the Main Menu Advanced Changing Video Output - NTSC & The Advanced menu allows you to update system To change the video output: firmware, load system In the Video Format drop-down menu, defaults. select NTSC or PAL. Configuring the "Auto Reboot" Click Apply to save your settings. -
Page 69: Upgrading The System Firmware
Using the Main Menu Upgrading the System Firmware Restoring to Factory Default Firmware upgrades can provide Settings improved functionality to your DVR. Restoring to factory default settings When firmware upgrades become reverts any setting changes you have available, you can download them for made to their original settings. -
Page 70: Restarting Or Shutting Down The Dvr
Using the Main Menu Click OK to return to the menu. To configure system warnings: Click the Events tab. Right-click until you have exited all menus. The DVR prompts you to restart. Restarting or Shutting Down the To restart or shut down the DVR: Right-click to open the Menu Bar and click the Main Menu button ( Click Advanced. -
Page 71: Loading A System Configuration From A Usb Flash Drive
Using the Main Menu drive (not included). This is useful if you want to backup your current settings. NOTE: This function only saves settings created in system menus. It does not save or backup any video. To save your system configuration to a USB flash drive (not included): Insert a USB flash drive (not included) into one of the USB ports. -
Page 72: Setting Up Your Dvr For Remote Connectivity
Remote Viewing Client For details on navigating the remote viewing interface, see “Remote Viewing Interface” on page 68. System Requirements Prior to using Lorex Web Client, make sure your system meets or exceeds the following system requirements: Description Requirement ®... -
Page 73: Accessing Your Dvr Within A Local Network (Lan)
Setting up your DVR for Remote Connectivity Accessing your DVR within a local network (LAN) You can connect to your DVR through Internet Explorer through the local area network (LAN). It is recommended to confirm connectivity over a local network before setting up your DVR for Internet connectivity. -
Page 74: Step 3 Of 3: Enter The Dvr's Local Ip Address Into The Browser
Setting up your DVR for Remote Connectivity Write down the IP Address and HTTP Port number of the DVR. • A local IP looks something like this: 192.168.5.118. Note that single digit numbers appear as three digits. For example, "005" is the same as "5". •... -
Page 75: To Connect To The Dvr's Local Ip Address On A Mac
NOTE: If you are having difficulty logging into your system using Internet Explorer, it is recommended to use the Client Software provided on the CD or as a free download from www.lorextechnology.com. For instructions, see “Lorex Client 11: Client Software for PC” on page 67. -
Page 76: Accessing Your Dvr Remotely Over The Internet
There are several methods to port forward your router: • Use the Lorex Easy Connect Auto Port Forwarding Wizard (PC only) to port forward the required ports (see CD for details). For instructions on how to use the Easy Connect Wizard,... -
Page 77: Step 2 Of 4: Create A Ddns Account
Step 1. Click Step 1 The My Lorex account login screen opens (if you are already logged in, skip to step 4). Create a new account or log into an existing account. To create a new account, fill in the required fields on the right and click Create Account. - Page 78 Setting up your DVR for Remote Connectivity Click Warranties to register your product for warranty. Click Warranties NOTE: Warranty registration is required to register for DDNS. The Warranty page opens. Click Activate Warranty to register your product for warranty. Under Your Address, select an address or click Enter a New Address to create a new address. Fill in your address information and click Create Address.
- Page 79 Select your address or enter a new address Enter your product and purchase details Click Save Warranty A page pops up to prompt you to register your product for Lorex DDNS. Click Set Up a New DDNS. Click Set Up a New DDNS...
- Page 80 MAC Address • URL Request: Enter the web site address that will be used to connect to your Lorex product. , the address to access your video will be For example, if you enter tomsmith http://tomsmith.lorexddns.net...
-
Page 81: Step 3 Of 4: Enable Ddns On The Dvr
Setting up your DVR for Remote Connectivity Step 3 of 4: Enable DDNS on the DVR To enable DDNS in your DVR: Right-click to open the Menu Bar and click the Main Menu button ( Click Network and select the DDNS tab. In the DDNS drop-down menu, select Enable. -
Page 82: Step 4 Of 4: Enter The Ddns Address Into The Browser
NOTE: If you are having difficulty logging into your system using Internet Explorer, it is recommended to use the Client Software provided on the CD or as a free download from www.lorextechnology.com. For instructions, see “Lorex Client 11: Client Software for PC” on page 67. -
Page 83: Lorex Client 11: Client Software For Pc
Lorex Client 11: Client Software for PC Lorex Client 11: Client Software for PC Lorex Client 11 is a client software for PC that allows you to connect to your DVR on a PC and view your cameras from anywhere in the world. -
Page 84: Remote Viewing Interface
Remote Viewing Interface Remote Viewing Interface Upon login, the Live tab opens. The Remote Viewing interface is the same on PC or Mac. Navigation Tabs: Allows you to access the following tabs: • Live: Watch live video. • Playback: View saved video footage. •... -
Page 85: Logging Into The System
Remote Viewing Interface Viewing options: • : Click to open all connected channels. • : Click to close all connected channels. Note that the system continues to record when you close channels remotely. • : Previous page. • : Next page. •... -
Page 86: Changing Viewing Modes
Remote Viewing Interface Changing Viewing Modes You can change the number of channels that the system displays simultaneously (i.e. Split-screen Mode, Single-channel Mode, etc.). To change the DVR’s viewing mode: • Click one of the following: • If the controls are not shown, click Taking Screen Shots The system can take screen shots of a selected channel during live view. -
Page 87: Recording Video
Remote Viewing Interface Recording Video You can record video footage directly onto your local hard drive. Once the video is in your hard drive, you can back up the video footage onto recordable media such as USB memory keys and blank CD/DVD media. To record video: Click next to the channel that you wish to capture video from.The video will record to... -
Page 88: Adjusting Sub-Menu Options
Remote Viewing Interface Adjusting Sub-menu Options The sub-menu option gives you quick access functions such as viewing video bit rate, and viewing video in its original aspect ratio. To open the sub-menu: Right-click on a desired channel. A sub-menu opens. Click on one of the following: •... -
Page 89: Changing The Format Of Recorded Video (Pc Only)
Remote Viewing Interface Changing the Format of Recorded Video (PC Only) You can change the format of recorded video saved using Remote Surveillance. This allows you to directly backup footage from your DVR as an .avi file. This does not affect the format of video files that are backed up locally on the DVR (i.e. -
Page 90: Configuring Ptz Settings
Remote Viewing Interface Configuring PTZ Settings The system supports remote PTZ controls for compatible PTZ cameras (not included). • For details on connecting PTZ cameras to your system, see “Appendix B: Connecting a PTZ Camera” on page 106. To control the PTZ settings on the DVR: From the Live tab, double-click to select the channel the PTZ camera is connected to. -
Page 91: Video Playback
Remote Viewing Interface Video Playback Video playback allows you to watch video that has been saved in the DVR’s hard drive. To playback video: Click the Playback tab. Playback tab In the calendar window, click the desired month, year, and date. Select month and year Select date Under the Type drop-down menu, select the desired recording type you wish to search for... -
Page 92: Video Playback Controls
Remote Viewing Interface Video Playback Controls Playback window Video content (green) Drag the line left or right to select the playback time Video slider Download Step Pause content Forward Volume Stop Play Stop all video Screen Capture • Step Forward: Plays video frame by frame. Click the Step Forward button to advance the video by 1 frame. -
Page 93: Configuring Privacy Zone Settings
Remote Viewing Interface Configure the following: • Channel: Select the channel you want to modify. • Name: Enter the channel name if you want to re-name the channel • Position: Select the position of where the title appears in the channel. •... -
Page 94: Configuring Recording Parameters
Remote Viewing Interface Configuring Recording Parameters To configure system recording parameters: Click the Remote Setting tab, and then click Record>Rec Parameters. Configure the following: • Channel: Select the channel you wish to configure. • Record: Select Enable or Disable to start or stop system recording. •... -
Page 95: Configuring System Recording Quality
Remote Viewing Interface Click the recording grid, and select the type and duration of recording. (Optional) Use the top Copy and Copy To drop-down to copy the recording schedule to a specific day or all days. Click Copy to copy the schedule. (Optional) Use the bottom Copy and Copy To drop-down to copy the recording schedule to a specific channel or all channels. -
Page 96: Configuring Basic Network Settings
Remote Viewing Interface Configuring Basic Network Settings The basic network menu allows you to configure the network protocol type (DHCP or Static), UPnP and mobile phone login information. To configure basic network settings: Click the Remote Setting tab, and click Network. Configure the following under Basic Configuration: •... -
Page 97: Configuring Email Notification Settings
To configure email notification settings: Click the Remote Setting tab, and click Network> Email. In the Email drop-down menu, select Default to use the default Lorex email server (recommended) or select Custom to use your own custom SMTP email server. -
Page 98: Changing The Mobile User Name And Password
Remote Viewing Interface • SSL: Select ON/OFF to enable/disable Secure Socket Layer protocol. • SMTP Port: Enter your SMTP address. • SMTP Server: Enter your SMTP Server. • Sender Email: Enter the sender email address. This can be any address of your choice. •... -
Page 99: Configuring Ddns Settings
Remote Viewing Interface Configuring DDNS Settings To configure DDNS settings: Click the Remote Setting tab, and click DDNS. Configure the following: • DDNS: Select Enable or Disable. • In the Server drop-down menu, select LOREXDDNS. • Domain Name: Enter your Domain name/URL Request from the confirmation email that was sent after you created your DDNS account. -
Page 100: Configuring Your System To "Beep" During Motion
Remote Viewing Interface • Buzzer: Select OFF to disable the buzzer when the system detects a motion event or select the duration of the buzzer after the system detects a motion event. Click and drag to configure motion detection areas Red: Motion detection enabled Clear: Motion detection disabled •... -
Page 101: Configuring Alarm Notifications
Remote Viewing Interface Configuring Alarm Notifications Configure the settings for alarm devices (not included). To configure alarm notifications: Click the Remote Setting tab, and click Alarm>Alarm. Configure the following: • Alarm In: Select the channel that you wish to configure. •... -
Page 102: Configuring Hard Drive Recording Mode
Remote Viewing Interface Configuring Hard Drive Recording Mode To configure the hard drive recording mode: Click the Remote Setting tab, and click Device>HDD. Overwrite drop-down menu In the Overwrite drop-down menu, select Auto to enable overwrite mode. When overwrite is enabled, the system deletes the oldest footage (first in, first out) when the hard drive is full.... -
Page 103: Configuring The System Time And Date
Remote Viewing Interface Configure the following: • Channel: Select the channel that the PTZ camera connects to. • Protocol: Select the protocol of the PTZ camera*. • Baud Rate: Select the baud rate of the PTZ camera*. • Data Bit: Select the data bit rate of the PTZ camera*. •... -
Page 104: Configuring System User Accounts
Remote Viewing Interface Configuring System User Accounts You can add user accounts on the system. To configure the user accounts menu: Click the Remote Setting tab, and click System>Users. Configure the following: • Click the desired user you wish to configure (i.e. user1). •... -
Page 105: Viewing System Information
Remote Viewing Interface Viewing System Information To view system information: Click the Remote Setting tab, and click System>Info. Upgrading System Firmware To upgrade the system firmware, download the latest firmware from the system’s product page at www.lorextechnology.com. To upgrade the system firmware: Download and extract the file to your computer’s desktop. -
Page 106: Restoring Default Settings
Remote Viewing Interface Restoring Default Settings To restore the system’s system defaults: Click the Remote Setting tab, and click Advanced>Load Default. Select the menus that you wish to restore to factory defaults. Click Save to restore system defaults for the selected items. Configuring Event Settings The Event Settings tab allows you to configure how the system behaves when a system event occurs (e.g. -
Page 107: Configuring Auto-Reboot
Remote Viewing Interface Configuring Auto-Reboot Auto-reboot allows the system to restart automatically at a set time or date. This improves system stability. To configure Auto Maintain: Click the Remote Setting tab, and click Advance>Maintain. Click the Auto Reboot drop-down menu, and select Enable or Disable to activate or deactivate the auto-reboot feature. -
Page 108: Lorex Player 11: Playing Backed Up Video On Pc
Lorex Player 11: Playing Backed up Video on PC Lorex Player 11 allows you to view your backed up video files from your DVR on your PC. NOTE: To view backed up video files on Mac, see “Lorex Player for Mac: Viewing Backed up Video on Mac”... -
Page 109: Lorex Player 11 Interface Overview
Lorex Player 11: Playing Backed up Video on PC Lorex Player 11 Interface Overview Click here to open the Advanced Config menu Video Window Add file Remove file Delete file Hide/reveal playlist Rewind Fast Forward Open File Stop Play Previous... -
Page 110: Lorex Player For Mac: Viewing Backed Up Video On Mac
DVR for the model number). Navigate to the product page for your DVR model and download Video Player for MAC. Extract the file and double-click the Lorex Mac Player installer (.pkg) file. Follow the on-screen instructions to install the software. -
Page 111: Loading Individual Video Files
Lorex Player for Mac: Viewing Backed up Video on Mac Loading Individual Video Files To load files saved onto your hard drive: Click the Load new file button ( Browse and select the desired file. Click Open to add the file to the video playlist. -
Page 112: Mobile Apps: Accessing Your Dvr Using A Mobile Device
Compatible Devices and Platforms Platform Supported Versions and Devices App Name Get App From iOS v. 4.0 and higher Lorex Mobile Eco Apple App Store iPhone/iPod Touch iPad (1st generation and above) Android Android v. 1.5 and above Lorex Mobile Eco... -
Page 113: Iphone / Ipad
Prerequisites • An iTunes account (requires valid credit card number). NOTE: Your credit card will not be billed when downloading the Lorex Mobile Eco App. Step 1 of 3: Downloading the App Install Lorex Mobile Eco from the App Store. -
Page 114: Step 3 Of 3: Connecting To Your Dvr
Mobile Apps: Accessing your DVR Using a Mobile Device Enter the following: • Device Name: Enter the name of your system. This can be any name of your choice. • Address: Enter the DDNS address of the DVR (e.g. tomsmith.lorexddns.net •... -
Page 115: Deleting Accounts
Mobile Apps: Accessing your DVR Using a Mobile Device • The selected channel appears in the quad screen display. Touch the name of your DVR. The channel appears in quad view. Select the desired channel. TIP: Double-tap the channel to view video in full screen. Repeat steps 1~2 as required for the remaining channels. -
Page 116: Changing Channels
Mobile Apps: Accessing your DVR Using a Mobile Device Changing Channels • Touch the button repeatedly to display channel 1~4, 5~8, 9~12, 13~16. Touch here to change quad view Channel 5~8 channels Interface Overview Add Device: Touch to add a DVR channel. Channel List: Touch to view channel in full screen. -
Page 117: Android
NOTE: For support on downloading or installing Android apps, consult your Android device’s user’s manual or the manufacturer’s support site. Step 2 of 2: Configuring and Connecting to Lorex Mobile Eco Open the Lorex Mobile Eco ( ) app from the applications list. -
Page 118: Viewing Controls
Mobile Apps: Accessing your DVR Using a Mobile Device Configure the following: • DVR Title: Enter a name for your DVR of your choice. • Server: Enter the DDNS address of the DVR (e.g. tomsmith.lorexddns.net • Port: Enter the DVR’s Mobile Port number (default: 1025). -
Page 119: Windows Mobile
For support on downloading or installing Windows Mobile apps, consult your Windows Mobile’s user’s manual, or www.microsoft.com for support. Step 2 of 2: Configuring and Connecting to Lorex Mobile Eco Open the Lorex Mobile Eco ( ) app on your phone. Click the Setting button. - Page 120 Mobile Apps: Accessing your DVR Using a Mobile Device • Port: Enter the DVR’s Mobile Port number (by default, port 1025). Auto Connect check box Select the Auto Connect checkbox and then click Ok. From the Server window, select the DVR account you created. Click OK to connect to the DVR. Select the name of your DVR...
-
Page 121: Appendix A: System Specifications
Appendix A: System Specifications Appendix A: System Specifications As our products are subject to continuous improvement, Lorex Technology Inc. and its subsidiaries reserve the right to modify product design, specifications, and prices without E&OE notice and without incurring any obligation. -
Page 122: Appendix B: Connecting A Ptz Camera
Appendix B: Connecting a PTZ Camera Appendix B: Connecting a PTZ Camera You can connect RS-485 PTZ cameras (not included) to the RS485 ports on the rear panel. To connect a PTZ camera to the system: Connect the Transmit+ (TX+) Cable to the + side of the RS485 port on the rear panel. Connect the Transmit- (TX-) Cable to the - side of the RS485 port on the rear panel. -
Page 123: Using The Ptz Menu (Local Dvr)
Appendix B: Connecting a PTZ Camera Configure the following according to your PTZ camera’s specifications: • Channel: Select the channel the PTZ camera is connected to. • Protocol: Select from Pelco-D or Pelco-P. • Baud rate: Select the PTZ camera’s baud rate. •... -
Page 124: Ptz Presets And Ptz Cruise
Appendix B: Connecting a PTZ Camera PTZ Presets and PTZ Cruise You can set preset positions for your PTZ cameras. You can also use PTZ cruise to have the camera automatically cycle through presets. Setting PTZ Presets Using the PTZ controls, move the camera into position. (Optional) In the Time field, select the number of seconds the camera will remain in that position during PTZ cruise before going to the next position. -
Page 125: Appendix C: Connecting Additional External Monitors
Appendix C: Connecting Additional External Monitors Appendix C: Connecting Additional External Monitors Connect one monitor to the VGA port and one to the HDMI port to display the system interface on two monitors simultaneously. Use the Video Output port (BNC) on the rear panel of the system to connect an external monitor. - Page 126 Appendix C: Connecting Additional External Monitors Under View Setup, select Enable. This lets you select and arrange the channels you want to show on the screen. NOTE: Enabling View Setup disables your ability to change channels the normal way on the selected monitor.
-
Page 127: Appendix D: Recording Audio
Appendix D: Recording Audio Appendix D: Recording Audio The system can also record audio for up to 4 channels (16-channel models) or 8 channels (8-channel model). You must have audio-capable cameras (not included) or self-powered microphones (not included) in order to record audio on the system. 8-channel model shown Connect an RCA audio cable from the camera into the corresponding Audio INPUT port... -
Page 128: Appendix E: Replacing The Hard Drive
Appendix E: Replacing the Hard Drive Appendix E: Replacing the Hard Drive The system comes with a pre-installed SATA hard drive. You can expand the 8-channel model with a replacement 3.5" or 2.5" SATA hard drive up to 2 terabyte (TB). The 16-channel model has two hard drive bays and can be expanded with a maximum of two 2TB 3.5"... -
Page 129: 16-Channel
Appendix E: Replacing the Hard Drive • If your system has a 3.5" hard drive, turn the DVR over carefully and loosen the 4 screws securing the hard drive. Turn the DVR back over and slide the hard drive and lift out of the DVR. - Page 130 Appendix E: Replacing the Hard Drive Disconnect the power and data cables. Next remove the hard drive from the housing: • If your system has a 3.5" hard drive, remove the 4 screws holding the hard drive bracket and remove the bracket from the DVR. Remove the 4 screws securing the hard drive to the bracket and remove the hard drive from the bracket.
-
Page 131: Installing The Hard Drive
Appendix E: Replacing the Hard Drive Installing the Hard Drive The steps to install a hard drive differ depending if you have an 8-channel or 16-channel DVR. 8-Channel Make sure that the power cable has been disconnected before changing the hard drive. -
Page 132: 16-Channel
Appendix E: Replacing the Hard Drive Connect the power and data cables. Replace the side and cover panel screws. 16-Channel Make sure that the power cable has been disconnected before changing the hard drive. Remove the screws from each side panel (x2) and rear panel (x4) of the cover. Gently slide the cover away from the rear panel and lift off. - Page 133 Appendix E: Replacing the Hard Drive • If installing a 2.5" hard drive, place the hard drive over one of the two sets of screw holes with the power and data connectors facing the center of the DVR. Hold the hard drive in place and carefully turn the DVR over.
-
Page 134: Formatting The Hard Drive
Appendix E: Replacing the Hard Drive Formatting the Hard Drive must If you replace the pre-installed hard drive, it be formatted in order to function properly with the system. on the hard disk. all data ATTENTION: Formatting the HDD erases This step cannot be undone. -
Page 135: Troubleshooting
Troubleshooting Troubleshooting When a malfunction occurs, it may not be serious and can be corrected easily. The following describes the most common problems and solutions. Please refer to the following before calling Lorex Technical Support: Error Possible Causes Solutions • System is not •... - Page 136 Troubleshooting Troubleshooting (Continued) Error Possible Causes Solutions • There is no picture • Monitor/TV not detected by DVR • Power off the monitor/TV and DVR. Power on the on monitor/TV after monitor/TV, and then power on the DVR connecting it to the •...
-
Page 137: Troubleshooting Remote Connections
Troubleshooting Troubleshooting Remote Connections Error Possible Causes Solutions • Cannot connect to the • DVR not connected to router • Connect an Ethernet cable from the DVR LAN port DVR on a local network to your router, and then reset the DVR using the power switch •... - Page 138 EXPAND AND CUSTOMIZE YOUR SYSTEM WITH A FULL RANGE OF CAMERAS & ACCESSORIES Specialty Cameras Wireless Cameras Dome Cameras Digital Video Recorders Monitors Simulated Cameras Security Hard Disc Drives Extension Cables Accessories www.lorextechnology.com 1 - 8 8 8 - 4 2 - L O R E X ( 1 - 8 8 8 - 4 2 5 - 6 7 3 9 ) SEP 6 2012 - R16...
Need help?
Do you have a question about the LH140 and is the answer not in the manual?
Questions and answers
