Lanzar LQ24CAP Quick Installation

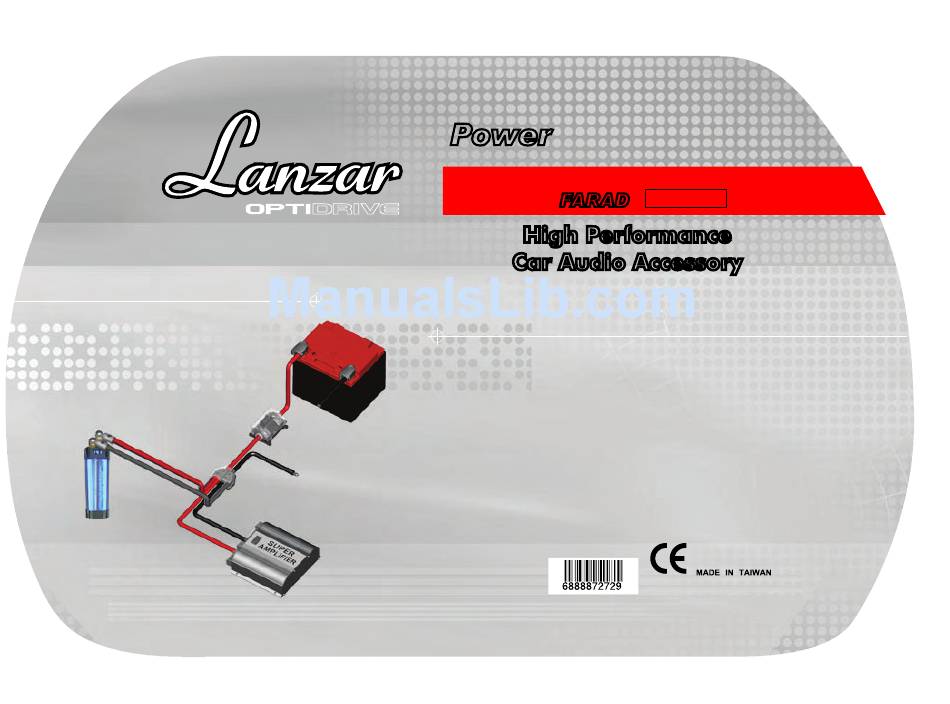

WIRING DIAGRAM

Power Source(Battery)
Lanzar 2.4 Farad
Power Capacitor
(Supplied)
4ft of 4 ga Power &
Ground Wire (Supplied)
0/4 ga Main Power & Ground wire
Distribution Block(Supplied)
Power to Amplifier
Power Power
2.4
2.4
2.4 FARAD DIGITAL POWER CAPACITOR WITH INSTALL KIT
QUICK & EASY INSTALLATION
1. Disconnect vehicle's battery.
2. Select mounting location for capacitor
3. Select a convenient location for installation of the distribution block.
4. Cut power and ground wires to existing amp or route wires to block for a new install.
5. Connect the wires so they continue through the distribution block on to the amp.
6. Connect ring terminals on power and ground wires to capacitor and route wires to
distribution block.
7. Cut wires to length and make connection.
8. Reconnect battery and enjoy a better sounding ystem!
Your Amplifier
FARAD FARAD
LQ24CAP
High Performance High Performance
Car Audio Accessory Car Audio Accessory
