Configuration Diagram; Expansion Slots - NEC Express5800/R120f-1E System Configuration Manual

SYSTEM CONFIGURATION GUIDE

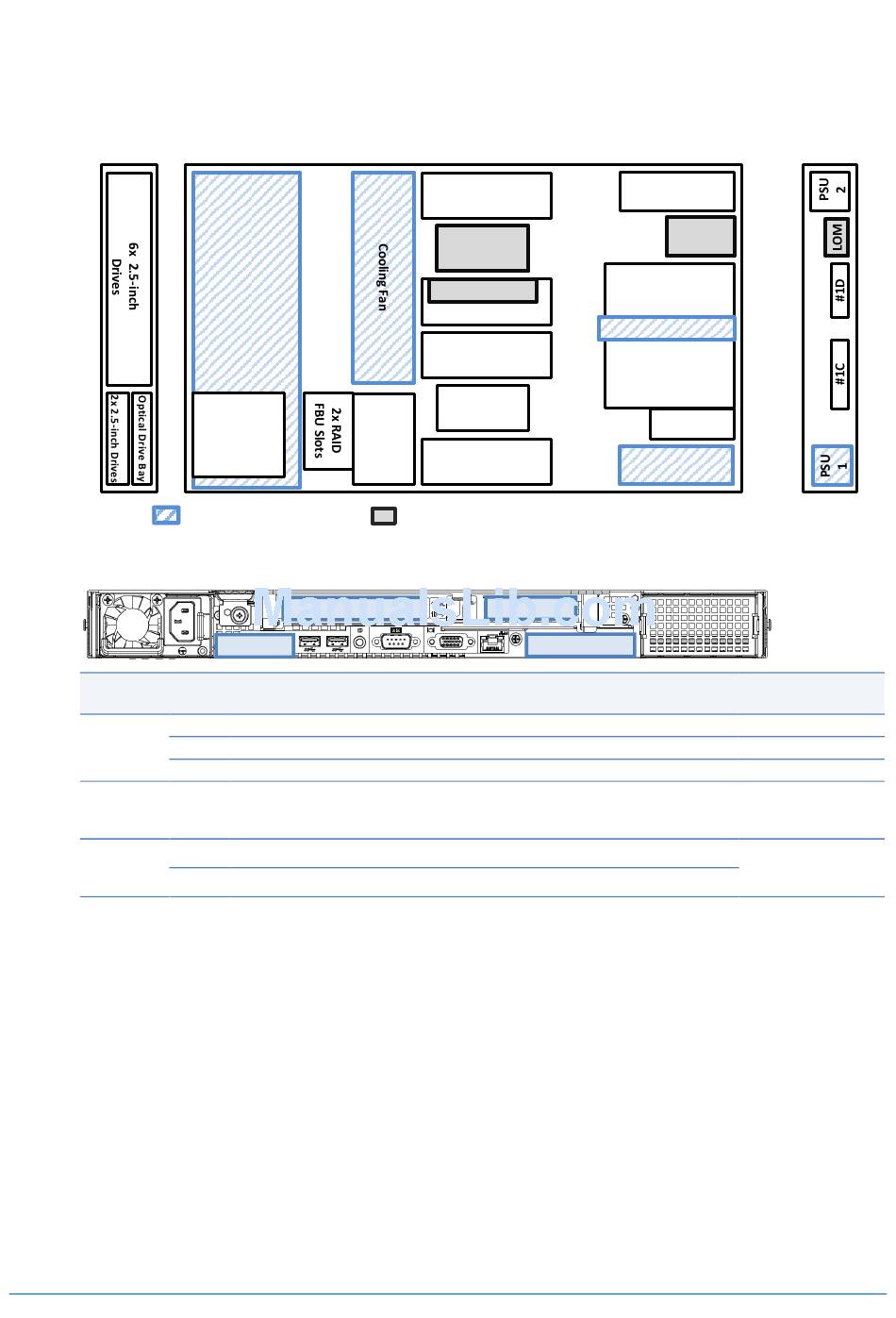

Configuration Diagram

CHASSIS
FRONT
Legend:

Expansion Slots

Legend
Common
#1A
#1B
#1D
PCIe x8 #1C
Riser
Card Kit
PCIe x16
#1C
Riser
#1D
Card Kit
NEC Corporation
–
NEC Express5800R120f-1E
CHASSIS
INSIDE
2.5-inch
Hot Plug
Drive Cage
Optical
Driver
Bay
Standard Components
Slot #1C
Slot #1A
PCIe 3.0 x8, x8 connector, for a dedicated RAID controller
PCIe 3.0 x8, x8 connector, for a dedicated LOM Card
PCIe 3.0 x8, x8 connector, Low-profile, up to 220 mm length
PCIe 3.0 x8, x8 connector, Full-height, up to 220 mm length
PCIe 3.0 x16, x16 connector, Full-height, up to 220 mm length
PCIe 3.0 x16, x16 connector, Low-profile, up to 220/312 mm length
Revision 6.0 – July 16, 2015
4x DIMM Slots
CPU 1
1xDIMM
4x DIMM Slots
4x DIMM Slots
CPU 2
Cooling
Fan
(CPU2)
4x DIMM Slots
Minimum required components
Slot #1D
Hot Plug
Power Supply 2
LOM
Card
PCIe 3.0
PCI Riser
PCIe 3.0
RAID Slot
Hot Plug
Power Supply 1
Slot #1B
CHASSIS
REAR
Remarks
Optional Riser
Required 2 CPU,
Optional Riser
