Liquid crystal digital camcorder

VL-PDl U

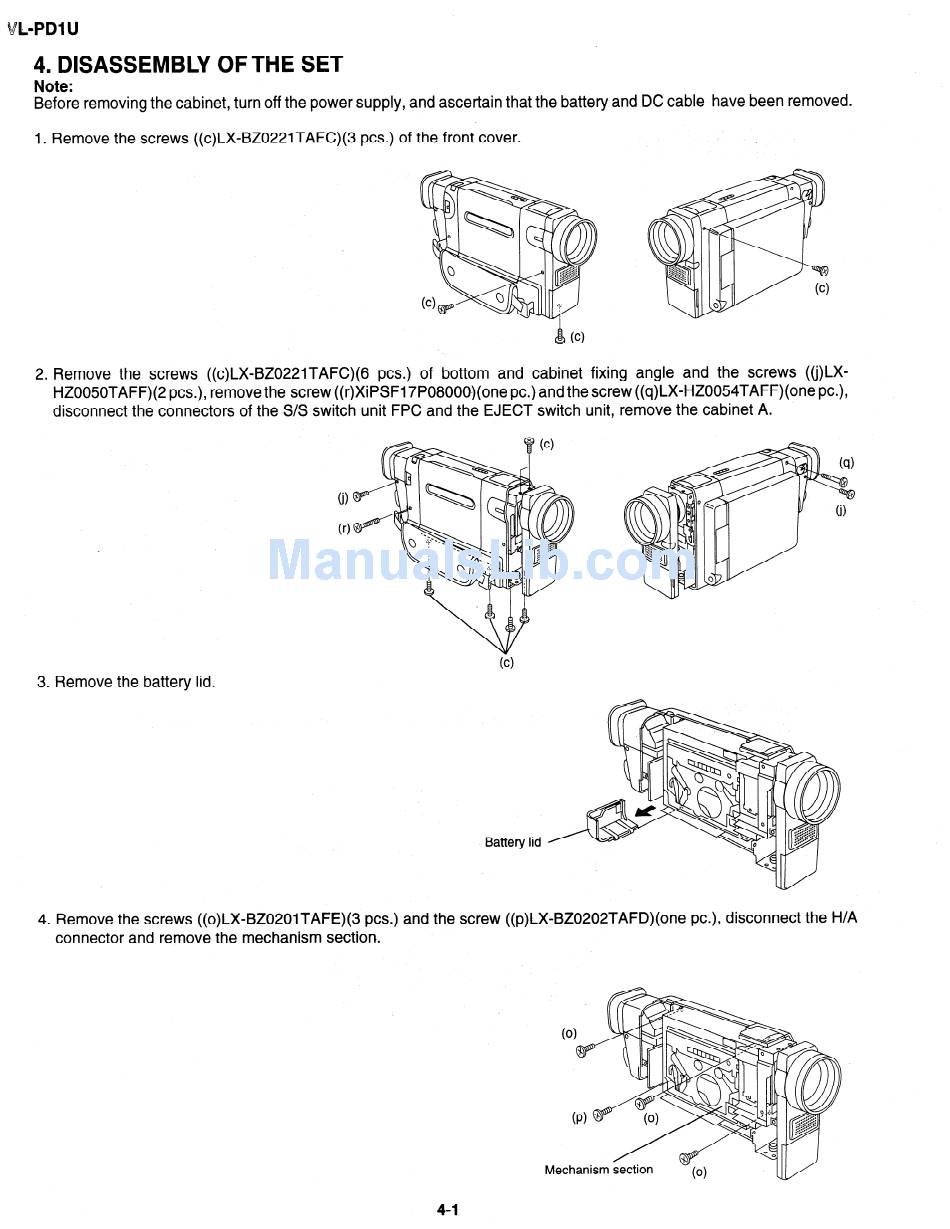

4. DISASSEMBLY OFTHE SET

Note:

Before removing the cabinet, turn off the power supply, and ascertain that the battery and DC cable have been removed.

1. Remove the screws ((c)LX-BZ0221TAFC)(3

PCS.) of the front cover.

2. Remove

the screws

((c)LX-BZ0221TAFC)(G

PCS.) of bottom

and cabinet

fixing

angle

and the screws

((j)LX-

HZOO50TAFF)(2 PCS.), remove the screw ((r)XiPSF17P08000)(one

PC.) and the screw ((q)LX-HZOO54TAFF)(one

PC.),

disconnect

the connectors

of the S/S switch unit FPC and the EJECT switch unit, remove the cabinet A.

3. Remove the battery lid.

Battery lid

4. Remove the screws ((o)LXgBZ0201TAFE)(3

PCS.) and the screw ((p)LX_BZO202TAFD)(one

PC.), disconnect

the H/A

connector

and remove the mechanism

section.

4-1
