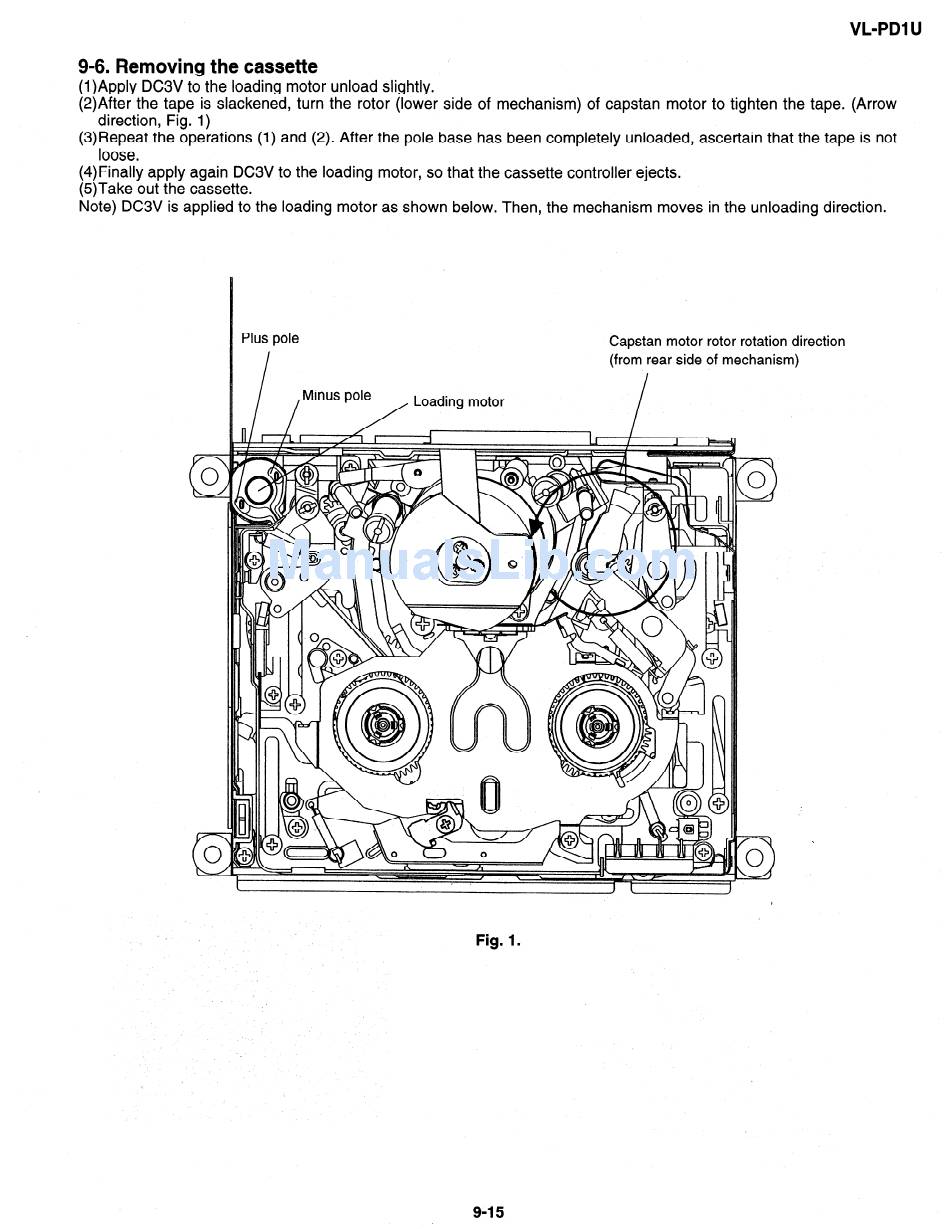

9-6. Removing the cassette
(1)Apply
DC3V to the loading motor unload slightly.
(2)After the tape is slackened,
turn the rotor (lower side of mechanism)
of capstan
motor to tighten the tape. (Arrow
direction,
Fig. 1)
(3)Repeat the operations
(1) and (2). After the pole base has been completely
unloaded,
ascertain that the tape is not
loose.
(4)Finally
apply again DC3V to the loading motor, so that the cassette controller
ejects.
(5)Take out the cassette.
Note) DC3V is applied to the loading motor as shown below. Then, the mechanism
moves in the unloading
direction.
Plus pole
I
Capstan motor rotor rotation direction
(from rear side of mechanism)
I
Minus pole
/
Loading motor
Fig. 1.
