System Programming - First Alert ReadyGuard-RI Quick Start Manual

TO
HANDSET
PHONE
LINE
RJ11
WARNING:
TO PREVENT
RISK OF SHOCK
DISCONNECT
TELEPHONE LINE
AT TELECOM
JACK BEFORE
SERVICING
THIS UNIT.
INTERNAL 7845i-L*
MODULE ONLY
STANDARD/HIGH
CAPACITY BATTERY
CONNECTOR
SUPER HIGH CAPACITY
BATTERY CONNECTOR
ALARMNET LRR/IP
COMMUNICATIONS PORT
LOCAL SOUNDER DISABLE
SHUNT REMOVE TO DISABLE
THE READYGUARD-RI CONTROL IS COMPATIBLE
WITH THE FOLLOWING INTEGRAL
RECHARGEABLE BATTERY PACKS:
P/N LYNXRCHKIT-SC
P/N LYNXRCHKIT-HC
P/N LYNXRCHKIT-SHA
REPLACE EVERY FOUR YEARS
* WHEN AVAILBLE

System Programming

Step
1. Set a programming default as follows:
a. Enter Programming mode: Installer Code + 8 0 0.
b. Press *97, then press a number 1-4 to select a default table from the tables listed on page 1.
2. Program the variable data fields as follows:
a. RF House ID - Press *24, then enter the desired 2-digit RF House ID for wireless keypads.
b. PABX Access Code (if used) - Press *40, then enter up to 6 digits. If fewer than 6 digits are used, press [*]
to end the field and advance to the next field.
c. Primary Phone Number - Press *41, then enter the primary phone number, up to 20 digits. If fewer than 20
digits are used, press [*] to end the field and advance to the next field.
d. Secondary Phone Number (if used ) - Press *42, then enter the secondary phone number, up to 24 digits. If
fewer than 24 digits are used, press [*] to end the field and advance to the next field.
e. Secondary Account Number (if used) - Press *44, then enter the secondary account number. If only 3 digits
are used, press [*] to end the field and advance to the next field.
f. Primary Account Number (if used) - Press *43, then enter the primary account number. If only 3 digits are
used, press [*] to end the field and advance to the next field.
g. Pager Characters - Press *88 if using Default Table 4, then enter up to 16 digits which may be required by
your pager service (e.g. account number, PIN, etc.). If fewer than 16 digits are used, press [*] to end the field
and advance to the next field.
h. Download Phone Number - Press *94, then enter the downloading computer phone number, up to 20
digits. If fewer than 20 digits are used, press [*] to end the field.
INCOMING
PHONE
LINE
EARTH
GROUND PHONE
8
1 2 3 4
POS
JACK
TIP RING TIP RING
INCOMING
TELEPHONE
LINE
PREMISES
TELEPHONE
EARTH
GROUND
WEEKLY TESTING IS
REQUIRED TO ENSURE
PROPER OPERATION
OF THIS SYSTEM

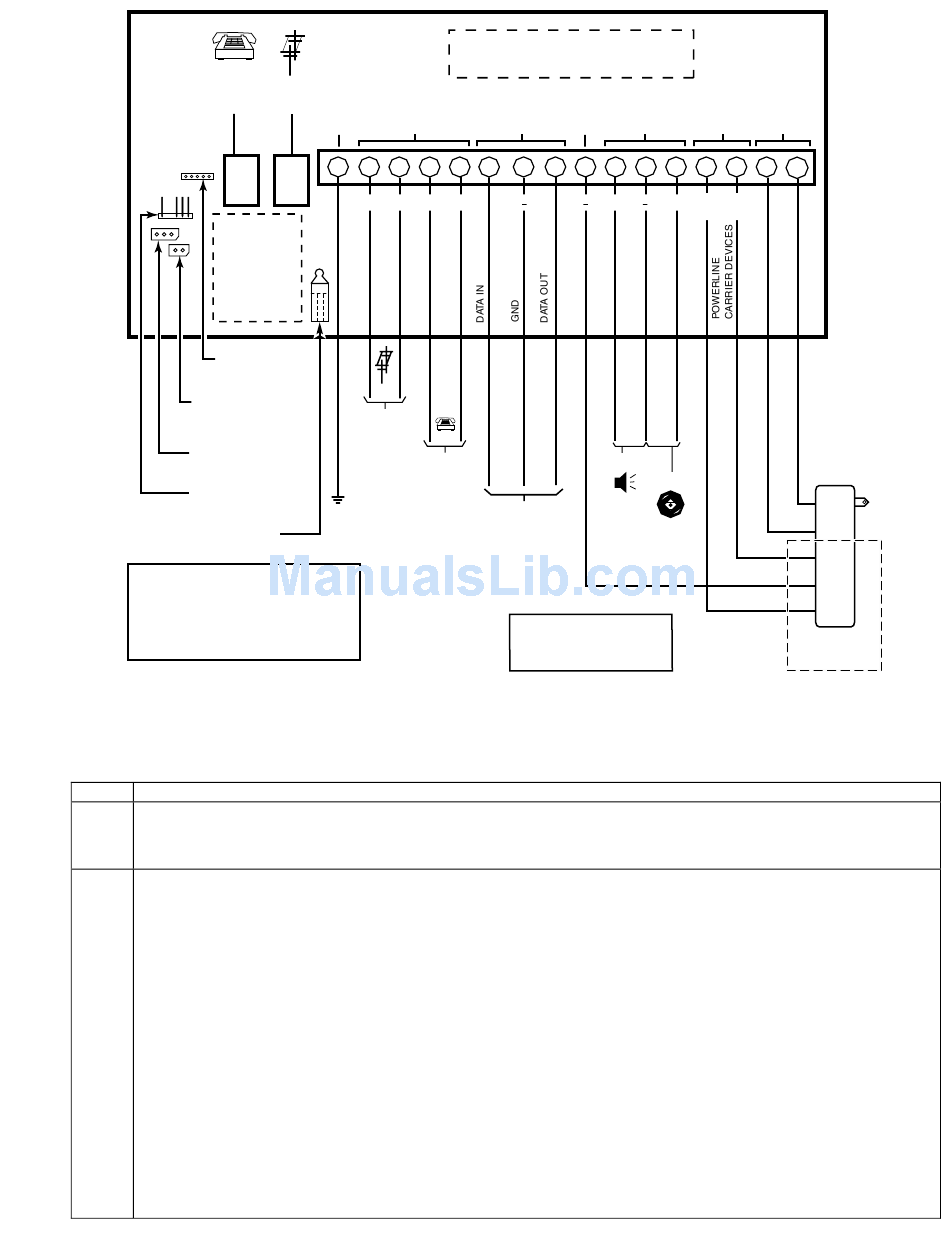

ReadyGuard-RI WIRING CONNECTIONS
UL NOTE
THE MINIMUM WIRE SIZE USED FOR TELEPHONE
INSTALLATIONS MUST BE #26 GAUGE
ALL OUTPUT CIRCUITS ARE POWER LIMITED.
FUTURE
USE
GND SOUNDERS
5 6 7 8 9 10
( ) ( ) (+)
PIEZO
6-14VDC
FUTURE
30mA max.
USE
(e.g. WAVE2EX)
NOTE
USE ONLY THE K10145X10
OR K10145CN
TRANSFORMERS PROVIDED
Action
- 3 -
PLCD AC
11 12 13 14 15
16
( ) DATA
(+) SYNC
OUT IN
K10145X10
TRANSFORMER
9VAC, 25VA
BELL
6-14VDC
120mA max.
CONNECTIONS
PLUG-IN
AC
AC
SYNC
COM
DATA
X10
ONLY
08000-009-V0
