First Alert ReadyGuard-RI Quick Start Manual page 5

Step
3. 3)
(Cont.)
Note: If 52 seconds passes and no entry has been made, the system returns to prompt (1A).
d. Delete Serial Number - This prompt can be used to delete the serial number programmed for the
F
zone.
1)
4. Set RF House ID in the wireless keypads as follows:
a. 5827 wireless keypad - Set the keypad's DIP switches to the RF House ID programmed in field *24.
b. 5804BD button key - Set the RF House ID per its instructions.
c. Powerline Carrier Devices - Set their House ID to "A," (programmed as "0") or use field *25 to change the ID
to avoid conflicts with existing installations.
5. Set the Real-Time Clock as follows:
a. Enter time/date setting mode by entering the User Code + FUNCTION + [63].
b. The hour prompt is displayed. Enter the correct hour, then press [ADD] to accept and advance.
c. For each subsequent prompt, enter the correct value, then press [ADD].
d. The system will exit this mode automatically after entering the year and pressing [ADD], or if no keys are
pressed for 1 minute.
6. Install Wireless Devices:
a. Before permanently mounting the wireless devices, enter Installer Code + [#] + [8] and run the Go/No Go
test. This will ensure adequate signal strength from each location.
b. Fault each transmitter to ensure all programmed zones are received.
c. Mount the transmitter in its permanent location.
7. Test the system as follows:
a. After installation and programming, enter Installer Code + TEST.
b. To exit Test mode, enter Installer Code + OFF.
8. Assign desired User Codes by following the procedures in the User Guide. Show the user how to perform the
various system functions.
9. Perform site-initiated downloader session (to load central station ID) by Installer Code + [#] + [1].

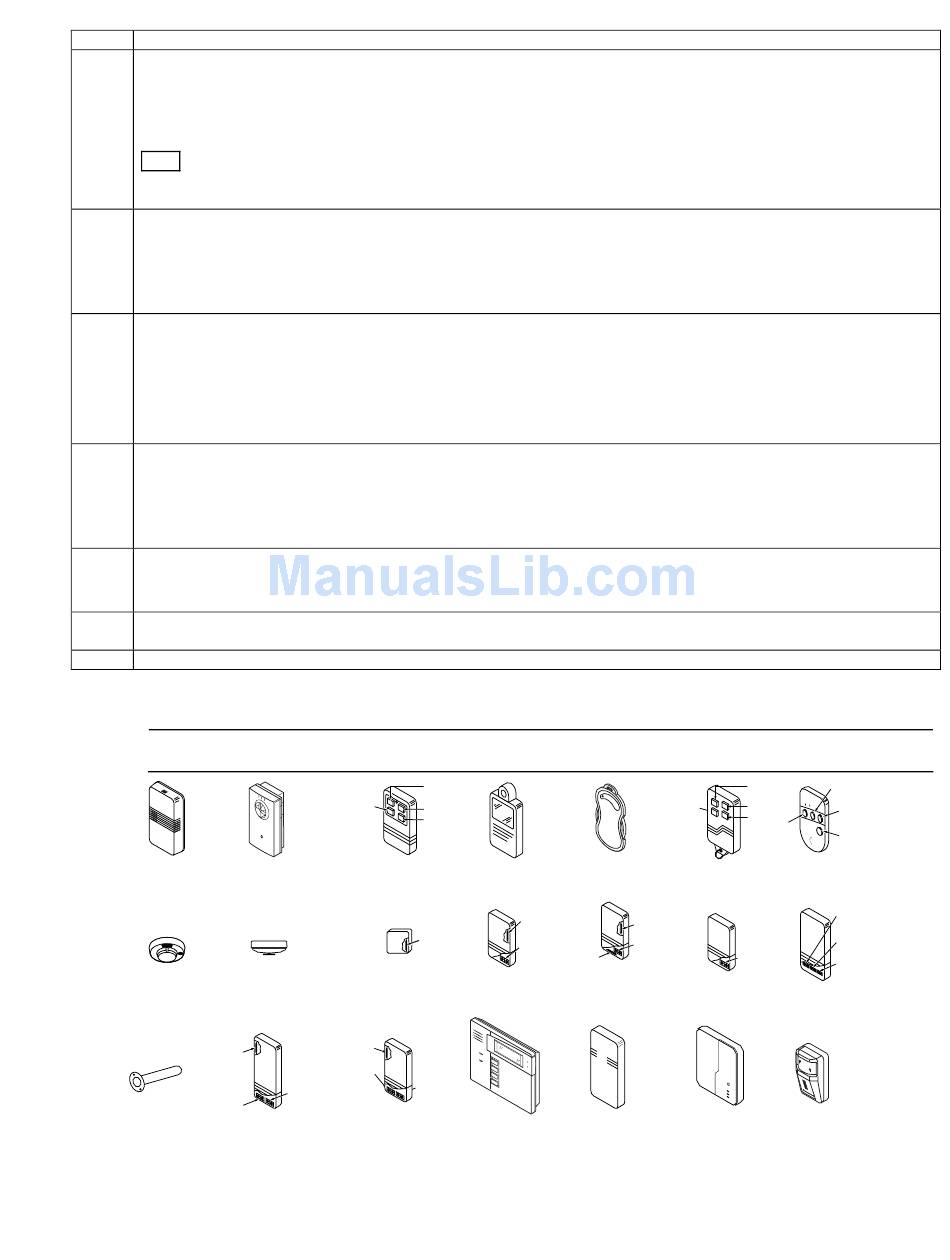

5800 Series Transmitter Loop Numbers
The following illustration shows the compatible transmitters and their associated input types and loop designations.
U U U U L L L L The 5800RL, 5802MN, 5802MN2, 5804, 5804BD, 5804BDV, 5804E, 5814, 5816TEMP, 5819, 5819S(WHS & BRS),
5828/5828V and 5850(GBD) wireless transmitters have not been evaluated by UL.
5 8 0 0 R L 5 8 0 0 WAV E
S E T P RO G R A M
H O U S E I D H O U S E I D
LOOP 1
5806/5807/5808/5808LST
ENROLL AS "RF"
ENROLL AS "RF"
LOOP 2
(REED)
LOOP 1
LOOP 3
(TERMINALS)
5 8 1 8
ENROLL AS "RF" ENROLL AS "RF"
Notes: (1) Loop 4 must always be enrolled on the 5801, 5804, 5804BD, 5804BDV, and 5804E transmitters.
(2) 5804E encrypted (High-Security) devices must be activated while the system is in Go/No Go Test Mode. Refer to the
transmitter's installation instructions for complete details. The system will confirm enrollment of the encrypted device by beeping
two times.
Once all 7 digits have been entered, press the [*] key. If less than 7 digits are entered,
the keypad will emit a single long beep and return to the (1A) prompt without displaying
the "L". If more than 7 digits have been entered, the first 6 digits will be saved along with
the last digit that was entered (entering 123456789 yields the serial number 1234569).
Enter "0" to discard delete request or "1" to confirm
LOOP 3
LOOP 4
YOU MUST
LOOP 2
ENROLL
THIS
LOOP 1
BUTTON
5 8 0 1
ENROLL AS
"UR" OR "RF"
LOOP 1
LOOP 1
5809 5814
ENROLL AS "RF"
LOOP 2
(REED)
LOOP 3
(TERMINALS) LOOP 1
(INTERNAL
SHOCK
LOOP 1
SENSOR
(TERMINALS)
5 8 1 9 5 8 1 9 S ( W H S & B R S )
ENROLL AS "RF"
Action
LOOP
LOOP
1 1
5 8 0 2 M N 5 8 0 2 M N 2
ENROLL AS ENROLL AS
"UR" OR "RF" "UR" OR "RF"
LOOP 2
(REED)
LOOP 2
(REED)
LOOP 1
LOOP 1
(TERMINALS)
(TERMINALS)
ALTERNATE
POSITION
FOR LOOP 2
5 8 1 6 5 8 1 6 M N
ENROLL AS "RF" ENROLL AS "RF"
A R
M E
D
R E
A D
Y
M IC
LOOP 1
M ES
SA G
E
(SOUND)
5828/5828V 5 8 4 9
PROGRAM ENROLL AS "RF"
HOUSE ID
- 5 -
LOOP 3
LOOP 2
LOOP 4
LOOP 4
O N
YOU MUST
YOU MUST O F LOOP 2
F
ENROLL ENROLL
LOOP 1
THIS THIS BUTTON
LOOP 3
BUTTON
LOOP 1
•
• •
•• •
• • ••
• •
• •
5804/5804E 5 8 0 4 B D / 5 8 0 4 B DV
ENROLL AS "BR" ENROLL AS "BR"
PROGRAM HOUSE ID
LOOP 1
(PRIMARY)
LOOP 2
(AUX.
CENTER)
LOOP 1
(TEMP
SENSOR) LOOP 3
(AUX.
RIGHT)
5 8 1 6 T E M P 5 8 1 7
ENROLL AS "RF"
ENROLL AS "RF"
(G
re en
)
(R
ed
)
(Y el
lo w
)
5 8 5 0 ( G B D ) 5 8 9 0 / 5 8 9 0 P I
ENROLL AS "RF" ENROLL AS "RF"
LOOP 1
(MOTION)
