VGA over Single CAT5 Series
EX-G029A
VGA & Audio over CAT5 Extender
User Manual
EX-G029A-TX
EX-G029A-RX
Headquarters :
Page 1 of 8
9F.-2, No.190, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan
O CT 7 / 2011
Tel : +886-2-2912-4201
Fax : +886-2-2912-3164
Version 0.1
E-Mail: marketing@ace-plus.com
Technical Support: vincent@ace-plus.com
http://www.ace-plus.com
http://www.ace-plus.tw
Advertisement
Table of Contents
Related Manuals for Ace Plus EX-G029A-TX
Summary of Contents for Ace Plus EX-G029A-TX
-
Page 1: User Manual
ACE PLUS CORP. VGA over Single CAT5 Series EX-G029A VGA & Audio over CAT5 Extender User Manual EX-G029A-TX EX-G029A-RX Headquarters : Page 1 of 8 9F.-2, No.190, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan O CT 7 / 2011... - Page 2 330m (1,000ft). The devices are composed of a transmitter and a receiver. The transmitter EX-G029A-TX is installed near the signal source, and the receiver EX-G029A-RX is placed near the desired display. With built-in EQ and GAIN control, the transmission path can be adjusted to adapt the cable quality and video bandwidth.
-
Page 3: Specifications & Package Contents
ACE PLUS CORP. Specifications & Package Contents Model Name EX-G029A Technical Role of usage Transmitter [TX] Receiver [RX] Supported VGA / component input/output Video bandwidth 350MHz 1080p60, WUXGA (1920x1200@60), UXGA Video support (1600x1200@60) or higher Audio support Analog stereo audio... -
Page 4: Panel Descriptions

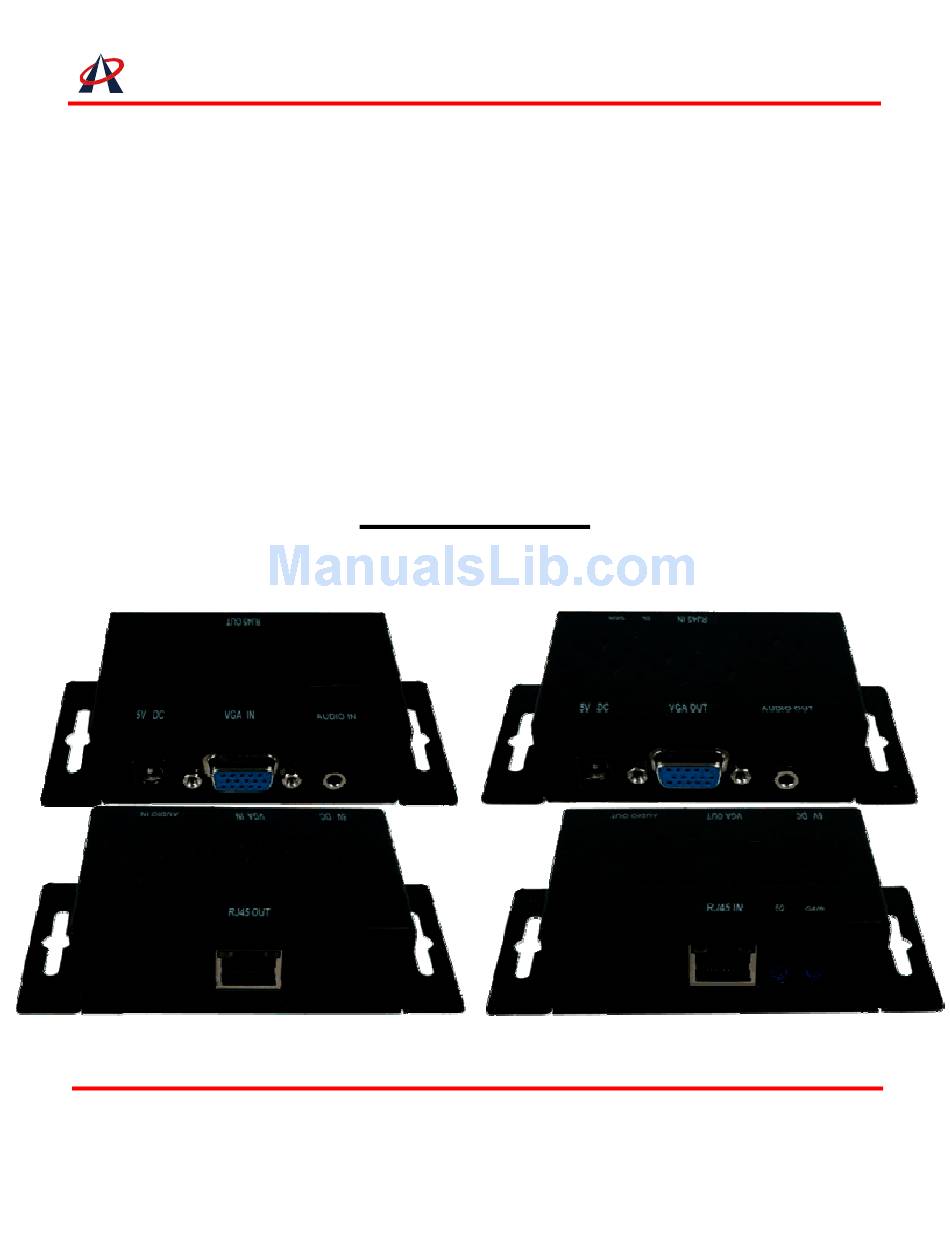

ACE PLUS CORP. Panel Descriptions Front Panel — Transmitting unit (EX-G029A-TX) +5V DC: Latch-locking power jack to connect to a 5V DC power supply unit VGA IN: Connect to a VGA source or a component video source (via a VGA-component break cable) STEREO IN: Connect to an analog audio source Rear Panel —Transmitting unit (EX-G029A-TX) - Page 5 ACE PLUS CORP. Front Panel — Receiving unit (EX-G029A-RX) VGA SIGNAL IN: Connect a Cat-5/5e/6 cable to the RJ45 VGA SIGNAL OUT port on the TX unit EQ: Rotary control for signal equalization, i.e., equalizing the waveform of video signal* GAIN: Rotary control for gain control, i.e., adjusting the amplitude of video signal*...
-
Page 6: Hardware Installation
ACE PLUS CORP. Hardware Installation 1. Connect your VGA source to the transmitting unit. 2. Connect your display to the receiving unit. 3. Connect your CAT-5/5e/6 cable between the transmitting and receiving units. 4. Make sure your CAT-5/5e/6 cable is tightly connected and not loose. -
Page 7: Limited Warranty
ACE PLUS CORP. Performance Guide for VGA over LAN Cable Transmission Performance rating Type of LAN cable Wiring Shielding CAT5 CAT5e CAT6 Unshielded (UTP) Solid Shielded (STP) Unshielded (UTP) Stranded Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time Limited Warranty The SELLER warrants the EX-G029A VGA &... -
Page 8: Safety And Notice
ACE PLUS CORP. Safety and Notice The EX-G029A VGA & Audio over CAT5 Extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the EX-G029A should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
