Page 1: User Manual

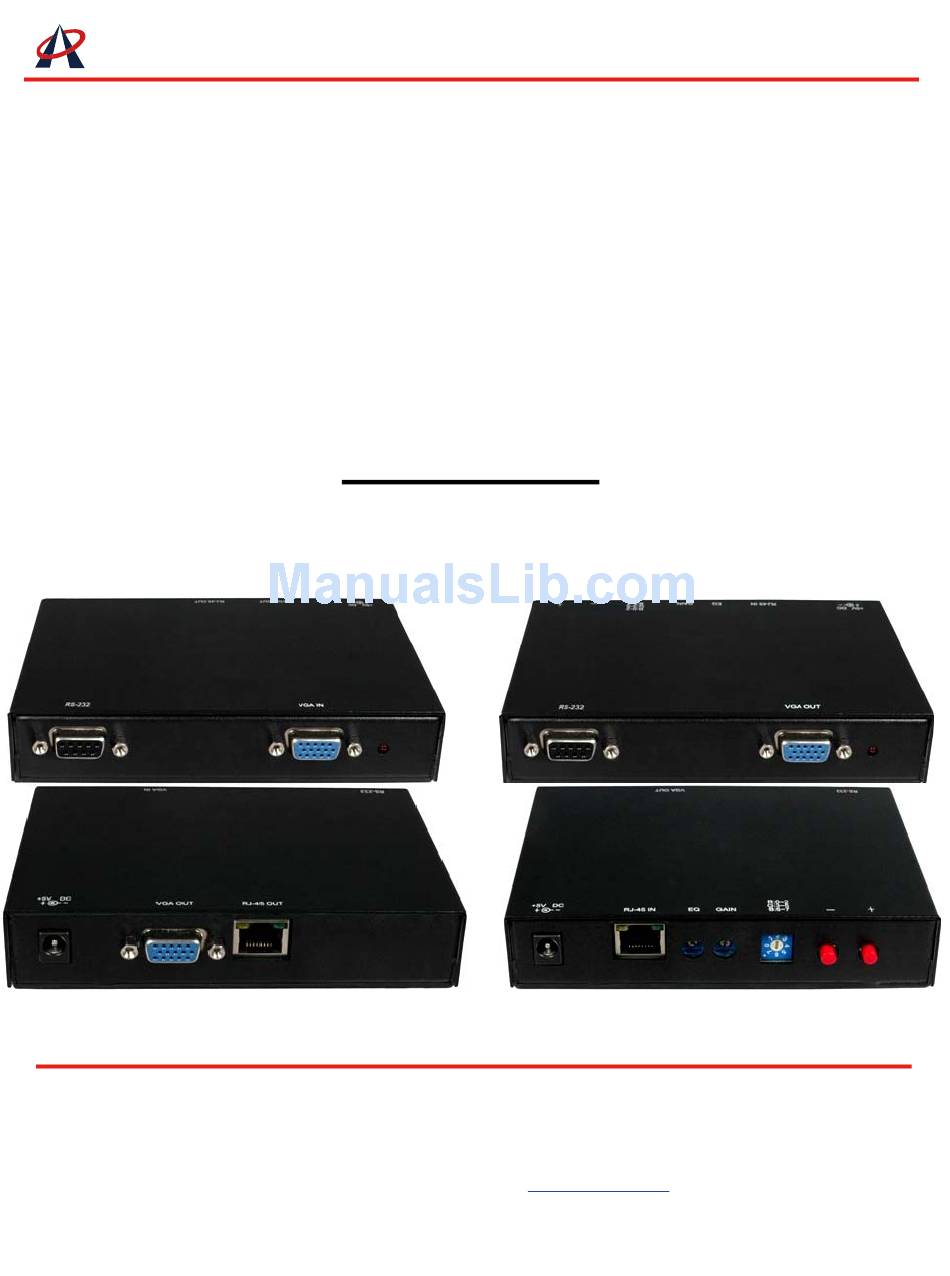

ACE PLUS CORP. VGA over Single CAT5 Series EX-G073B VGA & RS-232 over CAT5 Extender with RGB Delay Control User Manual EX-G073B-TX EX-G073B-RX Page 1 of 8 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian, Taipei, Taiwan 231... -
Page 2: Safety And Notice
ACE PLUS CORP. Safety and Notice The EX-G073B VGA & RS-232 over CAT5 Extender with RGB Delay Control has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the EX-G073B should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 ACE PLUS CORP. Introduction With only one cost effective CAT-5e cable, the EX-G073B lets you extend VGA (WUXGA) to cover the distance up to 330m (1,000ft). The devices are composed of a transmitter and a receiver. The transmitter EX-G073B-TX is installed near the signal source, and the receiver EX-G073B-RX is placed near the desired display.
-
Page 4: Specifications & Package Contents
0~40°C [32~104°F] temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x EX-G073A or EX-G073B [TX &RX] 2x 5V power adapter Package Contents 1x User Manual Page 4 of 8 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,... -
Page 5: Panel Descriptions
ACE PLUS CORP. Panel Descriptions Front Panel — Transmitting unit (EX-G073B-TX) 1. RS-232 IN: Connect to a RS-232 signal source 2. VGA OUT: VGA output to a remote video display 3. LED power indicator Rear Panel —Transmitting unit (EX-G073B-TX) 4. +5V DC power jack: connect to 5V DC power supply 5. - Page 6 ACE PLUS CORP. Front Panel — Receiving unit (EX-G073B-RX) 7. RS-232 OUT: Connect to a RS-232 receiving device 8. VGA OUT: VGA output to a remote VGA display 9. LED power indicator Rear Panel — Receiving unit (EX-G073B-RX) 10. +5V DC power jack: connect to 5V DC power supply 11.
-
Page 7: Hardware Installation
ACE PLUS CORP. Hardware Installation 1. Connect your VGA and RS-232 source to the transmitting unit. 2. Connect your display and RS-232 receiving device to the receiving unit. 3. Connect your CAT-5/5e/6 cable between the transmitting and receiving units. 4. Make sure your CAT-5/5e/6 cable is tightly connected and not loose. -
Page 8: Limited Warranty
Termination Limited Warranty The SELLER warrants the EX-G073B VGA & RS-232 over CAT5 Extender with RGB Delay Control to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1...
