Page 1: User Manual
ACE PLUS CORP. EX-G006 HDMI 1.3 over CAT5 Extender User Manual Page 1 of 8 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian, Taipei, Taiwan 231 TEL: +886-2-2912-4201 FAX: +886-2-2912-3164 Website: www.ace-plus.com... -
Page 2: Safety And Notice
However, like all electronic equipments, the EX-G006 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction Introduction The EX-G006 HDMI 1.3 over CAT5 Extender boosts up your video/audio transmission distance up to 60m (200ft) in HDTV 1080i format. With two low cost CAT-5/5e LAN cables, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI/DVI enabled TV sets or LCD PC monitors.
-
Page 4: Specifications & Package Contents

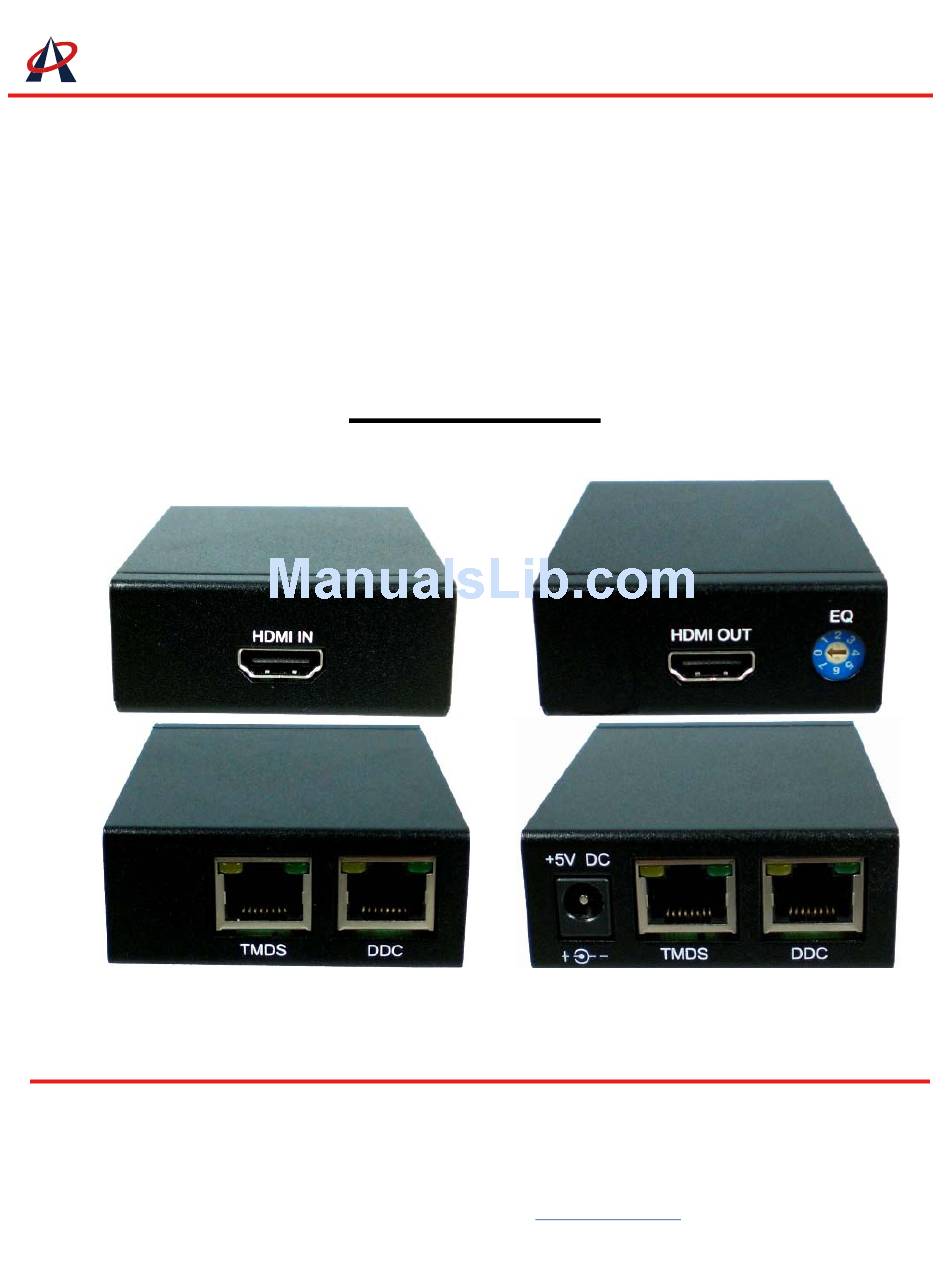

ACE PLUS CORP. Specifications & Package Contents Model Name EX-G006 EX-G009 EX-G007 EX-G007-RX Technical EX-G006-TX EX-G006-RX EX-G009-TX EX-G009-RX EX-G007-TX EX-G076A Role of usage Transmitter [TX] Receiver [RX] Transmitter [TX] Receiver [RX] Transmitter [TX] Receiver [RX] HDMI compliance HDMI 1.3c HDMI 1.2a... - Page 5 ACE PLUS CORP. Panel Descriptions Front Panel — Transmitting Unit EX-G006-TX HDMI-IN HDMI-IN: Connect to a HDMI source with a HDMI M-M cable here Rear Panel — Transmitting Unit EX-G006-TX TMDS TMDS: Plug in a CAT-5/5e/6 cable that needs to be linked to the TMDS connector of the receiving unit EX-G006-RX.
-
Page 6: Hardware Installation
TMDS and the other is from DDC to DDC. 5. Plug in 5V DC power cord to the power jack of the receiving unit EX-G006-RX. 6. If a flickering or a blinking image is seen, try to adjust the rotational switch to improve the cable skew. - Page 7 ACE PLUS CORP. Notice 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI/HDMI EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C.
-
Page 8: Limited Warranty
ACE PLUS CORP. Limited Warranty The SELLER warrants the EX-G006 HDMI 1.3 over CAT5 Extender to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
